5094-OB16 | Allen-Bradley Flex 5000 Output Module, 24VDC, 16 Outputs
- Regular price
- $716.00
- Sale price
- $716.00
- Regular price
-
Couldn't load pickup availability
Do you need help?

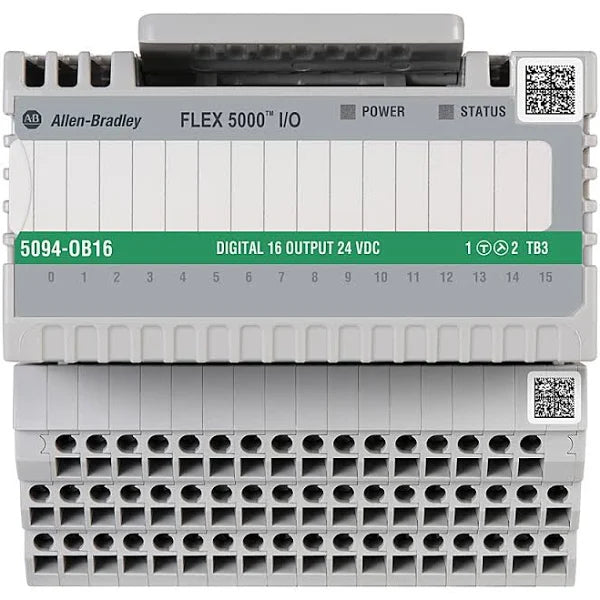

Product Description P/N: 5094-OB16
Description
The 5094-OB16 digital output module comes with 16 digital outputs. It has been designed and manufactured by Allen-Bradley/Rockwell Automation as part of the Flex 5000 series. The 5094-OB16 digital output module is a DC-powered digital output module with an operating voltage range of 18 to 32 Volts DC. It has a backplane power voltage rating of 15 Volts DC and a maximum backplane current rating of 100 milliamps. The 5094-OB16 digital output module can be mounted horizontally, horizontally and inverted, vertically, or vertically and inverted.
Technical Specifications
| Brand | Allen-Bradley |
| Manufacturer | Rockwell Automation |
| Part Number | 5094-OB16 |
| Module Type | T Safety Digital 16-point Sourcing Output Module |
| On-state voltage range | 18...32V DC |
| On-state voltage drop, max | 0.25V DC |
| On-state current per channel, min | 1 mA |
| Off-state voltage, max | 5V DC with 1 mA min load |
| Off-state leakage current per point, max | 0.5 mA per point |
| Output current rating, max | 0.5 A per channel |
| Surge current per point | 1 A max for 10 ms per point, repeatable every 2 s |
| Output delay time (backplane to screw), max for Off to On and On to Off | 100 μs @ 25 °C (77 °F) @ 0.5 A100 μs @ 25 °C (77 °F) @ 0.5 A |
| Pulse width, min | ≤ 200 μs (Ton + Toff) @ 0.5 A @ 25 °C (77 °F) |
| Output drift | ±400 ns/°C -40...70 °C @ 0.5 A |
| Open load detection diagnostics | Yes |
Information About 5094-OB16
The Allen-Bradley 5094-OB16 digital I/O module is manufactured in the Allen-Bradley FLEX 5000 series. This digital I/O module needs to be connected to a 24 Volts DC power source through its left SA +/- terminals so that the power source can provide field-side power. The Allen-Bradley 5094-OB16 digital I/O module comes with open load detection diagnostics, output short circuit detection and protection, overload detection and protection, excessive temperature protection, and reverse voltage protection, and these features make the I/O module as safe as possible. The module’s on-state voltage range is from 18 to 32 Volts DC, its maximum on-state voltage drop is 0.25 Volts DC, and its maximum off-state voltage is 5 Volts DC with a minimum load of 1 milliamp.
The Allen-Bradley 5094-OB16 digital I/O module has 16 sourcing I/O for making connections. It has a backplane power voltage rating is 15 Volts DC and it has a backplane current rating of 100 milliamps maximum. The users can monitor the status of this I/O module through its indicator lights. The indicator lights include a red and green module status indicator light, a red and green SA power status indicator light, and 16 red and yellow I/O status indicator lights (1 for each I/O). The Allen-Bradley 5094-OB16 digital I/O module is an open piece of equipment that does not come in an enclosure. It meets the T4 ATEX, IECEx, and North American temperature codes.
Manufacturer information
Allen-Bradley, a brand of Rockwell Automation, specializes in manufacturing industrial automation equipment. The product range includes programmable logic controllers (PLCs), motion control systems, safety devices, motor control equipment, automation software, and HMI panels. Allen-Bradley products are known for their reliability and integration with other systems.
