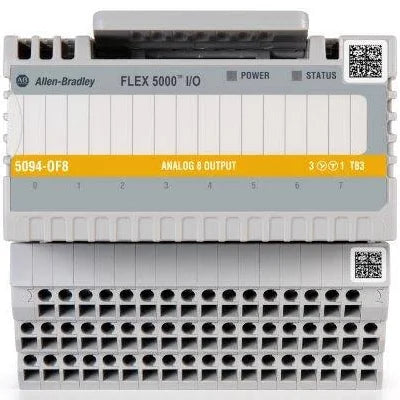

5094-OF8 | Allen-Bradley Flex 5000 Analog Output, 8 Current/Voltage Outputs
- Regular price
- $1,399.00
- Sale price
- $1,399.00
- Regular price
-
Couldn't load pickup availability
Do you need help?
Product Description P/N: 5094-OF8
Description
The 5094-OF8 module is an output module that has been manufactured by Allen-Bradley in the Flex 5000 series. It is an analog type of output module with 8 channels. The 5094-OF8 analog output module can operate with current or voltage power. It supports output current ranges of 0 to 20 milliamps or 4 to 20 milliamps and output voltage ranges of 0 to 5 Volts, 0 to 10 Volts, or -10 to +10 Volts. The 5094-OF8 analog output module is factory calibrated, although the users can calibrate it too.
Technical Specifications
| Brand | Allen-Bradley |
| Manufacturer | Rockwell Automation |
| Part Number | 5094-OF8 |
| Module Type | Analog Current/Voltage Output Module |
| Outputs | 8 single-ended |
| Output range, voltage | ±10V0...10V0...5V |
| Output range, current | 0...20 mA4...20 mA |
| Resolution | 16 bits across ±10.5V - 320 μV/bit16 bits across 10.5V - 160 μV/bit16 bits across 5V - 80 μV/bit16 bits across 21 mA - 320 nA/bit |
| Drive capability | Voltage - 1000 Ω minCurrent - 500 Ω max |
| Capacitive load, max (voltage mode only) | 1 μF |
| Inductive load, max (current mode only) | 1 mH |
| Open circuit detection | Current mode only |
| Short circuit detection | Voltage mode only – output electronically limited to 16 mA or less |
| Data format | IEEE 75432-bit floating point |
| Module conversion method | R-Ladder DAC, monotonicity with no missing codes |
Information About 5094-OF8
The Allen-Bradley 5094-OF8 analog output module is a FLEX 5000 series output module that can operate in the current mode or the voltage mode. This module has 8 outputs, all of which are single-ended and which can be used to connect to several different Allen-Bradley Logix controllers. The Logix 5000 controllers that this FLEX 5000 module can connect to include the CompactLogix 5380 and 5480 controllers. The maximum surrounding air temperature that the Allen-Bradley 5094-OF8 analog output module can withstand is 158 degrees Fahrenheit or 70 degrees Celsius, its operating temperature range is from -40 to 158 degrees Fahrenheit or -40 to 70 degrees Celsius, and its storage temperature range is from -40 to 185 degrees Fahrenheit or -40 to 85 degrees Celsius.
The Allen-Bradley 5094-OF8 FLEX 5000 analog output module can be wired in multiple wiring configurations in its current and voltage operating modes to make it suitable for different industrial applications, but it is essential to use only the Belden 8761 shielded or twisted pair wires or other wires with the equivalent gauge to make sure that the Allen-Bradley 5094-OF8 analog output module operates properly and that is as immune to electrical noise as possible. Electrical noise can interfere with the output module’s outputs and reduce its output or even damage it. This analog output module has a repeatability rating of 0.05%. Its scan time rating per output group is 2 milliseconds. The backplane power voltage rating of the Allen-Bradley 5094-OF8 analog output module is 15 Volts DC while the backplane power current rating is 75 milliamps maximum.
