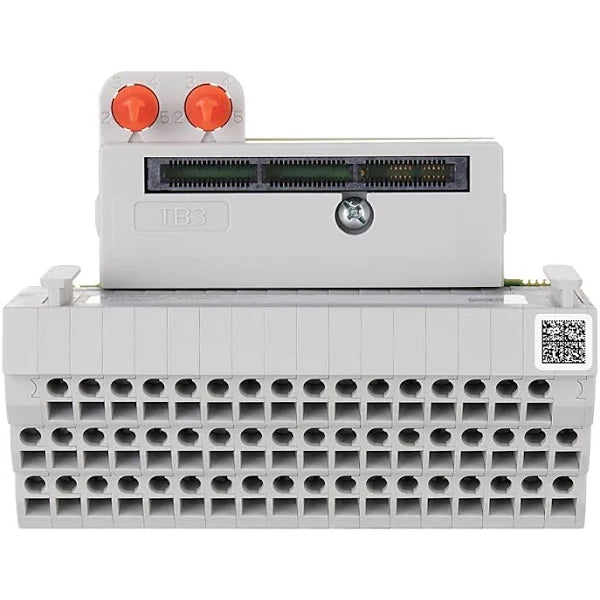

5094-RTB3 | Allen-Bradley Flex 5000 Removable Terminal Block Screw Type
- Regular price
- $75.00
- Sale price
- $75.00
- Regular price
-
Couldn't load pickup availability
Product Description P/N: 5094-RTB3
Description
The Allen-Bradley 5094-RTB3 is a removable terminal block designed for use with FLEX 5000 I/O modules. It provides secure screw-type wiring connections for copper conductors and supports integration with the 5094-MB mounting base. Engineered for industrial environments, this terminal block ensures reliable signal and power connections without requiring an external enclosure.
Technical Specifications
| Condition | New/Never Used Surplus |
| Brand | Allen-Bradley |
| Category | Wiring Accessories |
| Part Number | 5094-RTB3 |
| Subcategory | Removable Terminal Block |
| Series | FLEX 5000 |
| Description | Screw-type removable terminal block |
| Compatibility | FLEX 5000 modules and 5094-MB mounting base |
| Backplane Power (BP) | 100 mA at 15 VDC |
| Backplane Power (VCC) | 15 mA at 3.3 VDC |
| Current I/O Rating | 2 A at 32 VDC |
| Sensor/Actuator Power | 10 A at 18–32 VDC |
| Isolation Voltage | 250 VAC continuous (channel-to-chassis) |
| Wire Size Supported | 22–14 AWG copper (solid/stranded) |
| Terminal Type | Screw |
| Mounting | DIN rail |
| Operating Temperature Rating | 105 °C (wire insulation) |
| Dimensions | 3.97 x 3.68 x 3.99 in |
| Weight | 0.16 lb |
| Enclosure | Open style (indoor use) |
| Certifications | CE, T4 |
Information About 5094-RTB3
The 5094-RTB3 is part of the FLEX 5000 series and serves as the removable terminal block component within the terminal base assembly. Built for compatibility with FLEX 5000 input and output modules, it supports both signal wiring and sensor/actuator power distribution. The design includes screw terminals accommodating 22–14 AWG copper wire, offering robust mechanical and electrical connection integrity. With support for DIN-rail mounting and essential backplane power handling, the 5094-RTB3 is used across a range of industrial automation systems requiring reliable modular I/O connectivity.
Key Features:
- FLEX 5000 compatibility: Designed for all FLEX 5000 I/O module types.
- Screw-type terminals: Secure and vibration-resistant connections for copper wiring.
- Backplane power support: Handles 100 mA at 15 VDC and 15 mA at 3.3 VDC.
- Sensor/actuator supply: Provides up to 10 A at 18–32 VDC.
- DIN-rail mountable: Quick installation on zinc-plated rails.
- Industrial compliance: Meets CE and T4 standards for demanding environments.
- High isolation rating: 250 VAC continuous channel-to-chassis insulation.
- Compact construction: Lightweight open-style block built for indoor use.
The 5094-RTB3 delivers the reliability and precision required for secure wiring and dependable module connectivity in FLEX 5000 automation architectures.
