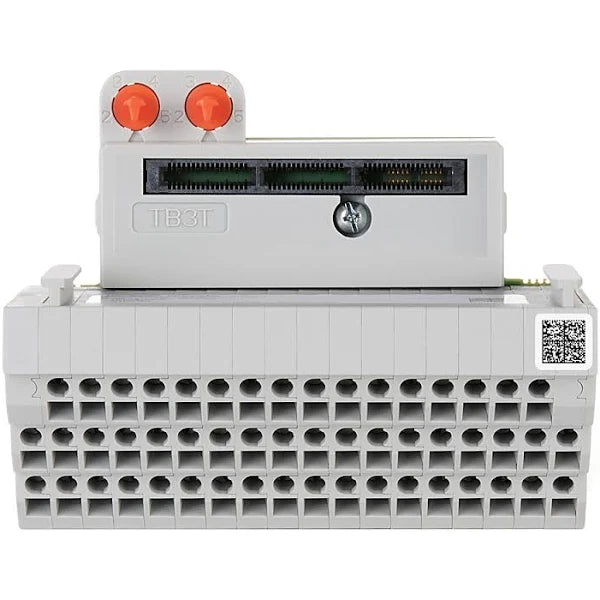

5094-RTB3T | Allen-Bradley Flex 5000 CJC Removable Terminal Block, Screw

Description

The Allen-Bradley 5094-RTB3T Flex 5000 CJC Removable Terminal Block is designed for the Flex 5000 I/O System. This removable terminal block has screw-type terminals and an embedded CJC thermistor. It has 2.0 Amps of maximum load per channel and an 18 to 32 Volts DC operating voltage range.

Technical Specifications

Information About 5094-RTB3T

The Allen-Bradley 5094-RTB3T FLEX 5000 CJC Removable Terminal Block is a removable terminal block (RTB) for the Flex 5000 terminal base assembly. The Flex 5000 terminal base assemblies are an integral part of the FLEX 5000 I/O family because they provide a terminal base for I/O module to be installed on and they also provide effortless field-side wiring for the I/O modules. The 5094-RTB3T Removable Terminal Block comes with an embedded CJC thermistor which provides cold junction compensation in thermocouple circuits. The 5094-RTB3T Removable Terminal Block has a rear-side shield bar for wiring shields for the Flex 5000 Analog I/O and High-speed Counter (HSC) module terminal base assembly. It has front-side key control switches for setting the module in place, and an I/O edge connector for holding the module in place.

The 5094-RTB3T Removable Terminal Block has an input current rating of 100 milliamps per channel, with a sensor actuator output rating of 1.8 Amps and a maximum pass-through current draw of 10 Amps. This block also has an acceptable input voltage range of 10 to 32 Volts DC and a nominal rating of 18 Volts DC. On the front-side of the 5094-RTB3T Removable Terminal Block, there are screw-type copper I/O terminal strips for connecting the I/O Sensor Source Voltage (SSV) wiring, module commons, backplane power, user-supplied power, and the embedded CJC thermistor. These terminal strips are made of solid or stranded copper wire with 0.34 x 2.5 millimeters square of average wire size and 1.20-millimeter insulation. The 5094-RTB3T Removable Terminal Block has 250 Volts AC of continuous rated isolation voltage between the input channels and chassis and between the chassis and the SA. The 5094-RTB3T Removable Terminal Block weighs approximately 0.5 pounds and it has total dimensions of 2.0 x 3.7 x 3.0 inches.
