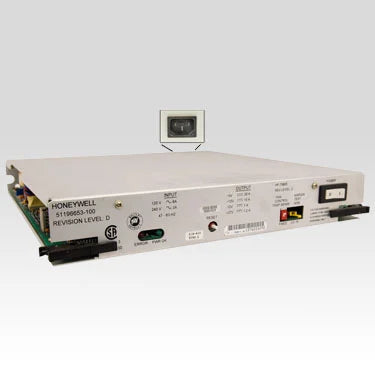

51196653-100 | Honeywell Five-slot File Power Supply Module 120V/240V
- Regular price
- $2,242.00
- Sale price
- $2,242.00
- Regular price
-
Couldn't load pickup availability
Do you need help?
Product Description P/N: 51196653-100
Description
The Honeywell 51196653-100 is a power supply module designed for use with five-slot chassis configurations in industrial control systems. It offers multiple voltage outputs and is equipped with features such as auto-ranging input and power factor correction to ensure consistent and efficient operation.
Technical Specifications
| Condition | New/Never Used Surplus |
|---|---|
| Brand | Honeywell |
| Category |
Power Supplies
|
| Part Number | 51196653-100 |
| Subcategory | Power Supply |
| Revision | E |
| Input Voltage | 120V AC (6A), 240V AC (3A) |
| Input Frequency | 47–63 Hz |
| Output Voltage | +5V @ 30A, +12V @ 10A |
| Connector Type | Standard 3-pin (adapter required for 8-pin) |
| Cooling | Temperature-controlled fan |
| Clocking Options | Jumper-selectable (INT/EXT) |
| Compliance | CE certified, EIA-413 |
| Power Factor | Corrected |
| Mounting | For 5-slot chassis |
| Discontinued | Yes (by manufacturer) |
| Weight | 8.27 lbs (3.7 kg) |
Information About 51196653-100
The 51196653-100 is part of Honeywell’s CE-compliant power supply range and is specifically intended for five-slot LCN file chassis. It uses a standard 3-pin connector but requires an adapter cable when used with older 8-pin chassis versions. The unit provides regulated outputs including +5V, +12V, -12V, and +27V to power various modules reliably. An integrated temperature-controlled fan optimizes cooling performance while minimizing operational noise.
Key Features:
- CE-Compliant Design: Meets EC safety standards and supports European installations.
- Multi-Voltage Output: Supplies +5V at 30A, +12V at 10A, -12V at 1A, and +27V at 1.2A for powering various chassis modules.
- Auto-Ranging Input: Accepts input voltages from 102 to 264 VAC, allowing for flexible power conditions.
- Power Factor Correction: Built-in circuitry improves energy efficiency and minimizes input current distortion.
- Quiet Cooling: Temperature-controlled fan reduces noise by adjusting speed based on ambient temperature and output load.
- Clock Configuration Jumper: Allows switching between internal (line frequency) and external clocking for use with SOE-enabled NIMs.
- Field-Serviceable: Can be refurbished with new electrolytic capacitors and output voltage verification.
- Standard Connector: Uses a 3-pin finger connector compatible with updated chassis setups.
The 51196653-100 delivers the reliability and electrical stability required for legacy Honeywell LCN control environments.
