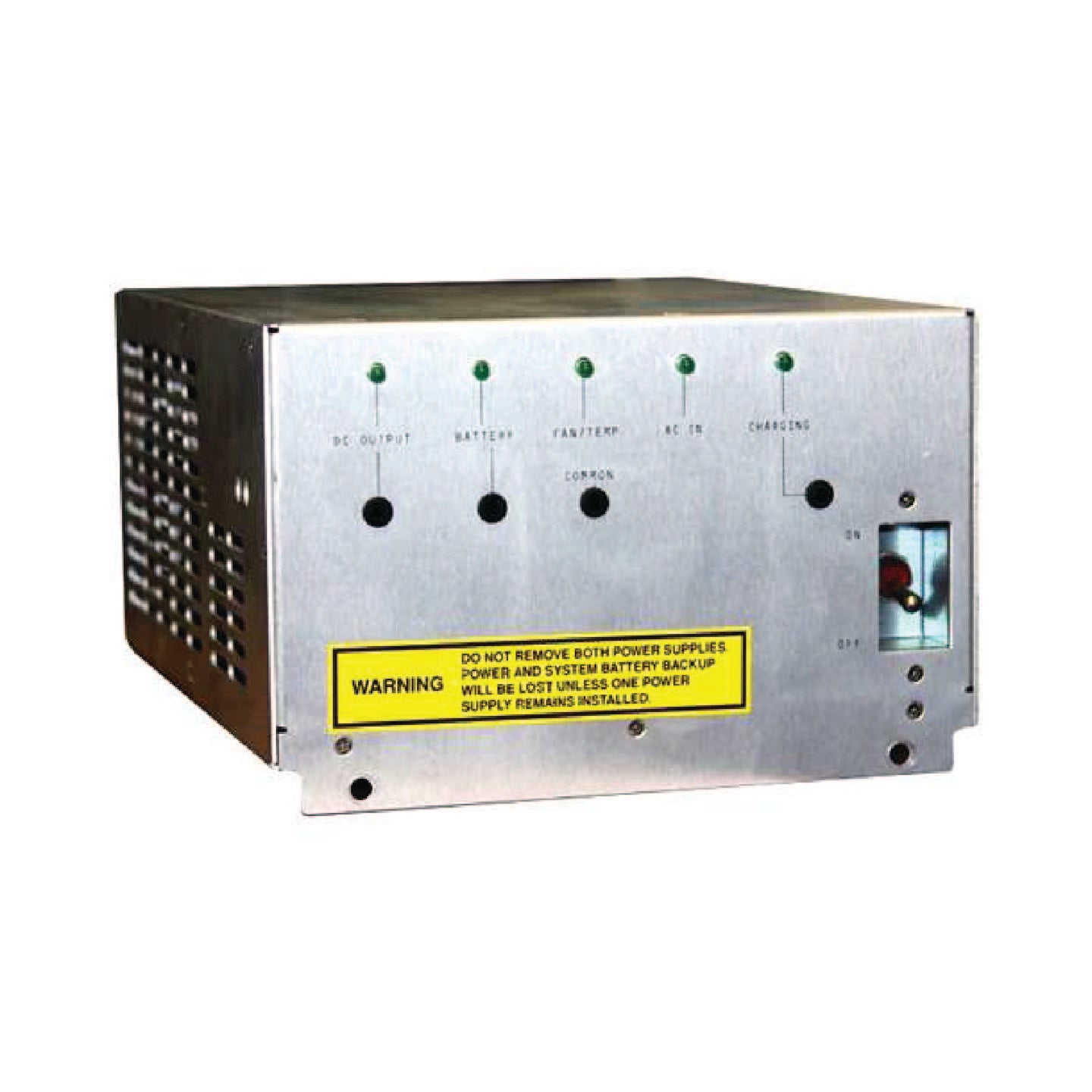

51198947-100 | Honeywell HPM Power Supply 115/240V
- Regular price
- $6,120.00
- Sale price
- $6,120.00
- Regular price
-
Couldn't load pickup availability
Do you need help?
Product Description P/N: 51198947-100
Description
The Honeywell 51198947-100 is an HPM (High-Performance Process Manager) power supply designed to deliver stable DC power for Honeywell control and automation systems. It operates from a universal 115/240 VAC input and provides a regulated 24–25 VDC output rated up to 10 amps, ensuring reliable power delivery to control modules and I/O subsystems.
Technical Specifications
| Condition | New/Never Used Surplus |
| Brand | Honeywell |
| Category | Industrial Power Supplies |
| Part Number | 51198947-100 |
| Subcategory | HPM Power Supply Module |
| Input Voltage Range | 115/240 VAC |
| Input Frequency | 50/60 Hz |
| Output Voltage | 24–25 VDC |
| Output Current | Up to 10 A (Continuous) |
| Total Power Output | 550 W |
| Secondary Outputs | 6 VAC (for LLAI IOP noise suppression), 3.9 VDC (battery backup) |
| Battery Support | Rechargeable batteries maintain CMOS memory during power loss |
| Power Redundancy | Supports operation with one or both supplies active (shared 24V output) |
| Load Regulation | Tight DC output regulation for control system stability |
| Protection Features | Overload and overvoltage protection |
| Cooling Method | Convection or system-integrated airflow |
| Connection Type | Terminal Block / System Bus Connector |
| Mounting Style | Panel or Rack Mount within Honeywell HPM Enclosure |
| Certifications | UL Recognized, CE Compliant, CSA Approved |
| Operating Temperature Range | 0°C to 60°C (32°F to 140°F) |
| Dimensions | Standard HPM module size (varies per rack configuration) |
| Weight | 8.99 lbs (4.08 kg) |
Information About 51198947-100
The 51198947-100 is part of Honeywell’s HPM (High-Performance Process Manager) power subsystem, responsible for providing reliable and filtered DC power to process control modules and field I/O components. Designed for redundant operation, the power supply ensures uninterrupted system performance even if one supply fails, maintaining full 24V DC output. It also provides auxiliary 6V AC for analog input modules to minimize electrical noise and 3.9V DC backup power via onboard rechargeable batteries to preserve CMOS memory during loss of main power. The 51198947-100’s robust construction, high efficiency, and advanced protection features make it suitable for demanding industrial environments where stable power delivery and system reliability are critical.
Key Features:
- High-Efficiency Power Delivery: Provides 24–25V DC at 10A continuous load with total power output of 550W.
- Redundant Operation Support: Allows seamless function when one or both power supplies are active, ensuring system uptime.
- Auxiliary Power Outputs: Includes 6V AC for noise suppression and 3.9V DC battery backup for memory retention.
- Universal AC Input: Operates on 115V or 240V AC input, suitable for global installations.
- Noise Suppression Design: Reduces AC interference for low-level analog input modules.
- Battery Backup Integration: Maintains CMOS memory and controller data during temporary power interruptions.
- Industrial Reliability: Designed for Honeywell process control environments with continuous 24/7 operation.
- Built-In Protection: Safeguards against overvoltage, overcurrent, and thermal stress.
- Rugged Construction: Heavy-duty metal housing provides superior durability and EMI shielding.
- Certifications: Meets UL, CE, and CSA standards for industrial power safety and performance.
The 51198947-100 delivers the reliability and precision required for Honeywell’s HPM control systems, providing stable, redundant DC power to ensure continuous process automation performance.
