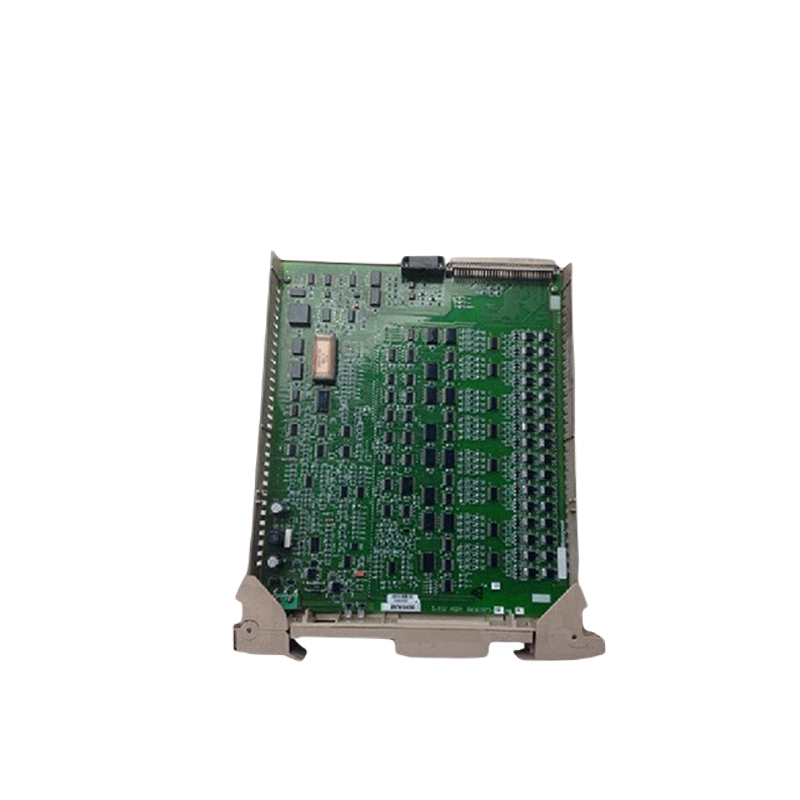

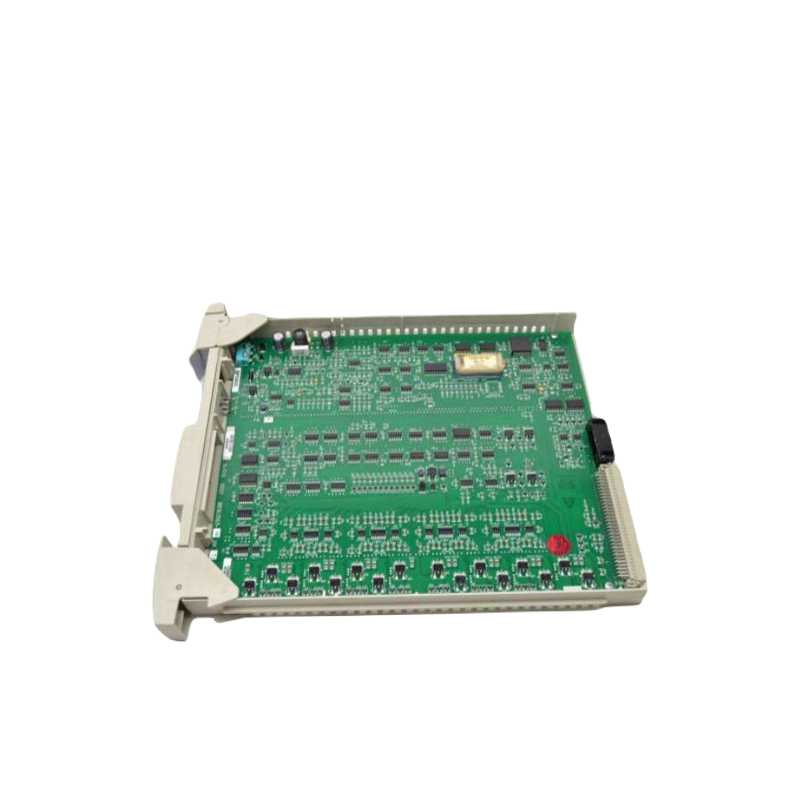

51304362-150 | Honeywell Low Level Analog Input Multiplexer Processor
51304362-150 | Honeywell Low Level Analog Input Multiplexer Processor
51304362-150 | Honeywell Low Level Analog Input Multiplexer Processor
51304362-150 | Honeywell Low Level Analog Input Multiplexer Processor
51304362-150 | Honeywell Low Level Analog Input Multiplexer Processor
51304362-150 | Honeywell Low Level Analog Input Multiplexer Processor
    51304362-150 | Honeywell Low Level Analog Input Multiplexer Processor
    51304362-150 | Honeywell Low Level Analog Input Multiplexer Processor
51304362-150 | Honeywell Low Level Analog Input Multiplexer Processor
51304362-150 | Honeywell Low Level Analog Input Multiplexer Processor

51304362-150 | Honeywell Low Level Analog Input Multiplexer Processor

Part #: 51304362-150 Manufactured by: Honeywell
Regular price
$1,710.00
Sale price
$1,710.00
Regular price
3 in Stock
Condition: New-Surplus Original Box
Shipping calculated at checkout.
Product Overview
The 51304362-150 is a Honeywell low-level analog input multiplexer processor (LLMUX IOP) with 32 input channels, CE compli...  Read more
We accept:
  • American Express
  • Apple Pay
  • Diners Club
  • Discover
  • Google Pay
  • Mastercard
  • PayPal
  • Shop Pay
  • Visa
warranty
IQElectro 2-Year Warranty
Warranty for Product #: 51304362-150
IQElectro offers a free 2-year warranty on all products. You can trust that every purchase is a reliable investment in the future of your company. Warranty Terms
2-3 Day Free Shipping
Packed Ready to Ship
24/7 Expert Support
Return within 30-Days
IQElectro LLC BBB Business Review
IQElectro is Not an authorized distributor for Honeywell
Original Manufacturer's Warranty Not Covered, This Product is SURPLUS.

Product Description P/N: 51304362-150

Description / Specifications

Description

The Honeywell 51304362-150 is a Low Level Analog Input Multiplexer Processor (LLMux IOP) designed for use with TDC 3000 or Experion PKS systems. This processor supports up to 32 analog inputs for low-level signal acquisition and is optimized for thermocouples, RTDs, and millivolt-level sources.





Technical Specifications

Condition New/Never Used Surplus
Brand Honeywell
Category
PLCs/Machine Control
Part Number 51304362-150
Subcategory PC Board PLC/Add-On Board
Input Channels 32
Input Scan Rate 32 samples per second
Supported Signal Types
Thermocouple, RTD, Linear mV
CE Compliance Yes
Conformal Coating Yes
Redundancy Not supported
Compatible FTAs
MU-TAMT02, MU-TAMT03 (with local CJR); MU-TAMT12, MU-TAMT13 (remote CJR)
Installation Requirement FTA and remote CJR must be located in the same cabinet
Weight 1.34 lbs





Information About 51304362-150

The 51304362-150 is a CE-compliant, conformally coated LL Mux Input/Output Processor used to multiplex 32 low-level analog inputs from two 16-channel Field Termination Assemblies (FTAs). It is specifically engineered for use in temperature-sensitive applications such as thermocouples and RTDs. Compatible FTAs include MU-TAMT02 and MU-TAMT03 (with built-in Cold Junction Reference) or MU-TAMT12 and MU-TAMT13 (for use with external CJR sensors). All termination and sensing components must be mounted within the same cabinet. The unit is not redundancy-capable and is built for single-processor installations where precise low-level signal conversion is required.

Key Features:

  • 32 Input Channel Support: Interfaces with two 16-channel FTAs for high-density analog signal acquisition.
  • High Sampling Rate: Scans all 32 inputs at a consistent rate of 32 samples per second for responsive signal processing.
  • Multiple Input Types Supported: Accepts thermocouple, RTD, and linear millivolt signals with high resolution.
  • FTA Compatibility: Works with FTAs featuring either local or remote Cold Junction Reference (CJR), ensuring temperature compensation flexibility.
  • CE-Compliant and Conformally Coated: Provides added reliability and protection in harsh industrial environments.
  • Compact Integration: Designed to fit seamlessly into Honeywell’s Experion or TDC system cabinets.
  • Non-Redundant Design: Intended for non-redundant system architectures, simplifying deployment.
  • Cabinet-Based Sensor Layout: Requires all wiring and CJR sensor components to be installed within a single enclosure.
  • Reliable Multiplexing Architecture: Enables efficient data acquisition from a high number of low-energy analog signals.

The 51304362-150 ensures high-density, accurate analog input processing in demanding industrial and temperature-critical applications.

IQElectro is not an authorized distributor.
IQElectro LLC (IQElectro) is NOT an Authorized Distributor or in any way affiliated with Rockwell Automation, Siemens, or any other Manufacturers. IQElectro is NOT an Authorized Dealer of this product. The product may be of older version, date codes, or design than that available from authorized dealers. As IQElectro is not an authorized dealer of this product, the Original Manufacturer's Warranty and Support DO NOT apply. IQElectro sells SURPLUS only and DOES NOT SELL SOFTWARE or FIRMWARE licenses For more detailed information, please refer to the full version of our disclaimer policy Disclaimer Policy.
Description / Specifications

Description

The Honeywell 51304362-150 is a Low Level Analog Input Multiplexer Processor (LLMux IOP) designed for use with TDC 3000 or Experion PKS systems. This processor supports up to 32 analog inputs for low-level signal acquisition and is optimized for thermocouples, RTDs, and millivolt-level sources.





Technical Specifications

Condition New/Never Used Surplus
Brand Honeywell
Category
PLCs/Machine Control
Part Number 51304362-150
Subcategory PC Board PLC/Add-On Board
Input Channels 32
Input Scan Rate 32 samples per second
Supported Signal Types
Thermocouple, RTD, Linear mV
CE Compliance Yes
Conformal Coating Yes
Redundancy Not supported
Compatible FTAs
MU-TAMT02, MU-TAMT03 (with local CJR); MU-TAMT12, MU-TAMT13 (remote CJR)
Installation Requirement FTA and remote CJR must be located in the same cabinet
Weight 1.34 lbs





Information About 51304362-150

The 51304362-150 is a CE-compliant, conformally coated LL Mux Input/Output Processor used to multiplex 32 low-level analog inputs from two 16-channel Field Termination Assemblies (FTAs). It is specifically engineered for use in temperature-sensitive applications such as thermocouples and RTDs. Compatible FTAs include MU-TAMT02 and MU-TAMT03 (with built-in Cold Junction Reference) or MU-TAMT12 and MU-TAMT13 (for use with external CJR sensors). All termination and sensing components must be mounted within the same cabinet. The unit is not redundancy-capable and is built for single-processor installations where precise low-level signal conversion is required.

Key Features:

  • 32 Input Channel Support: Interfaces with two 16-channel FTAs for high-density analog signal acquisition.
  • High Sampling Rate: Scans all 32 inputs at a consistent rate of 32 samples per second for responsive signal processing.
  • Multiple Input Types Supported: Accepts thermocouple, RTD, and linear millivolt signals with high resolution.
  • FTA Compatibility: Works with FTAs featuring either local or remote Cold Junction Reference (CJR), ensuring temperature compensation flexibility.
  • CE-Compliant and Conformally Coated: Provides added reliability and protection in harsh industrial environments.
  • Compact Integration: Designed to fit seamlessly into Honeywell’s Experion or TDC system cabinets.
  • Non-Redundant Design: Intended for non-redundant system architectures, simplifying deployment.
  • Cabinet-Based Sensor Layout: Requires all wiring and CJR sensor components to be installed within a single enclosure.
  • Reliable Multiplexing Architecture: Enables efficient data acquisition from a high number of low-energy analog signals.

The 51304362-150 ensures high-density, accurate analog input processing in demanding industrial and temperature-critical applications.
