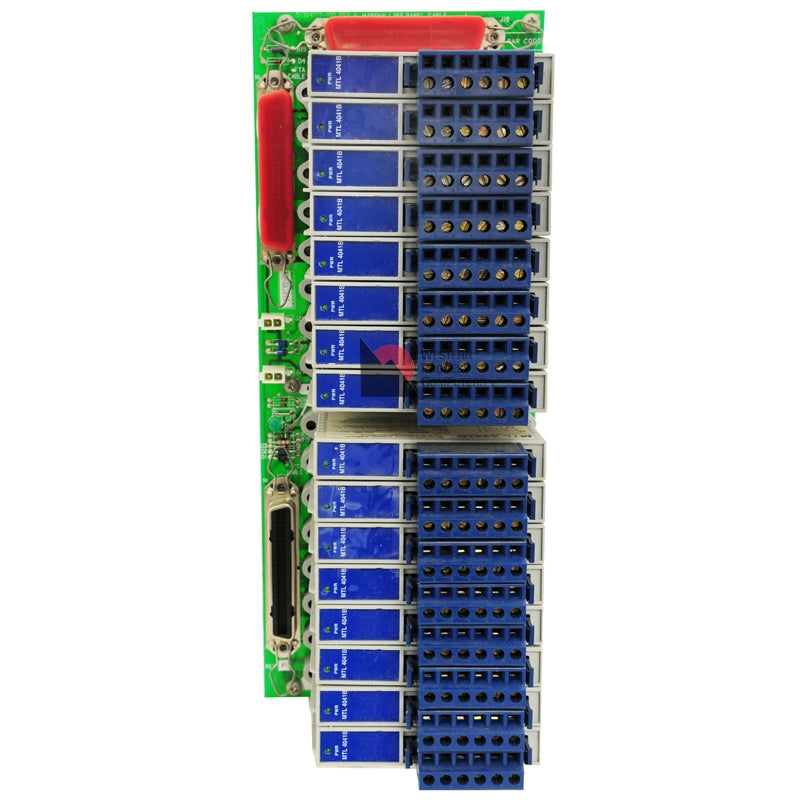

51304718-175 | Honeywell MC-GAIH13 16-Channel High Level Analog Input FTA
- Regular price
- $4,997.00
- Sale price
- $4,997.00
- Regular price
-
Couldn't load pickup availability
Product Description P/N: 51304718-175
Description
The Honeywell 51304718-175 (MC-GAIH13) is a High Level Analog Input (HLAI/STI) Field Termination Assembly (FTA) designed for industrial control systems requiring reliable analog signal termination and redundancy. The Honeywell 51304718-175 provides 16 high-precision analog input channels for connecting field devices such as transmitters and sensors to control system input processors. It is engineered for critical industrial environments where signal integrity, redundancy, and reliable data acquisition are essential.
Technical Specifications
| Condition | New/Never Used Surplus |
| Brand | Honeywell |
| Part Number | 51304718-175 |
| Model Code | MC-GAIH13 |
| Product Type | Field Termination Assembly (FTA) |
| Application | High Level Analog Input Interface |
| Channels | 16 |
| Input Types | Analog (e.g., 4–20 mA, 0–10 V) |
| Accuracy | ±0.1% of span |
| Resolution | 16-bit (processor dependent) |
| Input Impedance (Voltage) | >10 MΩ |
| Input Impedance (Current) | <1 Ω |
| Power Supply | 24 VDC (±10%) |
| Operating Temperature | -40°C to +70°C |
| Storage Temperature | -40°C to +85°C |
| Humidity | 5%–95% non-condensing |
| Isolation | Channel-to-channel: 500 Vrms; Channel-to-ground: 1000 Vrms |
| Protection | Overvoltage, overcurrent, short-circuit protection |
| Terminals | Compression type |
| Mounting | DIN rail or panel mount |
| Dimensions | 307 mm × 120.65 mm × 52.5 mm |
| Weight | 2.0 kg |
| Compliance | CE, UL, cUL, ATEX, IECEx |
Information About 51304718-175
The MC-GAIH13 Field Termination Assembly is part of Honeywell’s industrial control and safety system infrastructure. It serves as an interface between field instrumentation and analog input processor modules such as the MC-PAIH13. The module supports high-level analog signals including 4–20 mA and voltage inputs and features galvanic isolation for improved signal protection and noise immunity.
The assembly uses compression terminals for secure field wiring and incorporates conformal coating to protect internal circuitry from moisture, dust, and corrosive environments. Designed for redundant configurations, the MC-GAIH13 ensures high availability in process automation systems and supports DIN rail or panel mounting for flexible installation.
Key Features:
- 16 Analog Input Channels: Supports multiple field instruments including transmitters and sensors.
- High-Level Analog Input Interface: Compatible with signals such as 4–20 mA and voltage inputs.
- Redundant System Support: Designed for use in redundant control architectures.
- Galvanic Isolation: Protects channels from electrical noise and ground loop interference.
- Conformal Coating: Provides protection against moisture, dust, and corrosive environments.
- Compression Terminal Connections: Ensures reliable and secure field wiring.
- Industrial Certification: CE compliant and suitable for demanding industrial environments.
- Flexible Mounting: Supports DIN rail or panel installation.
