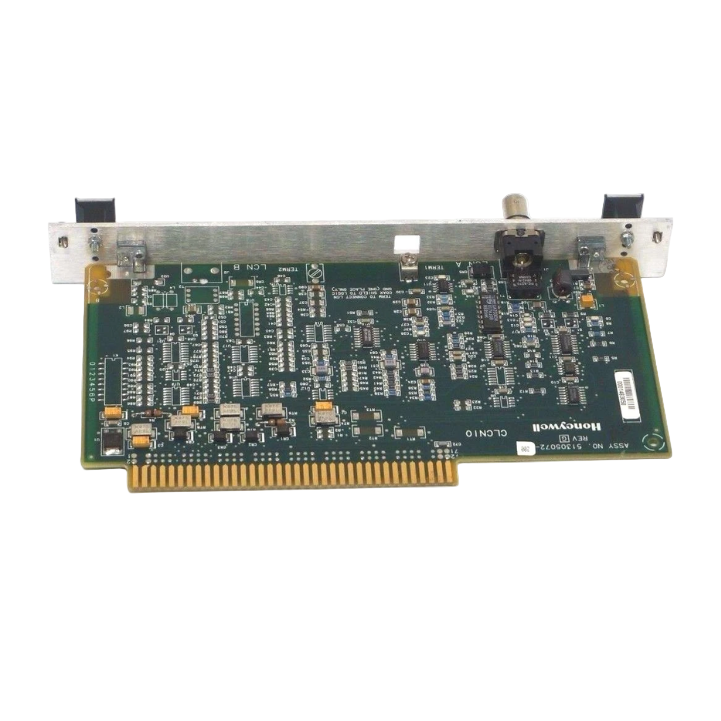

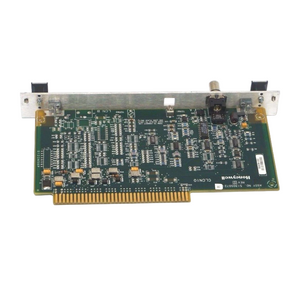

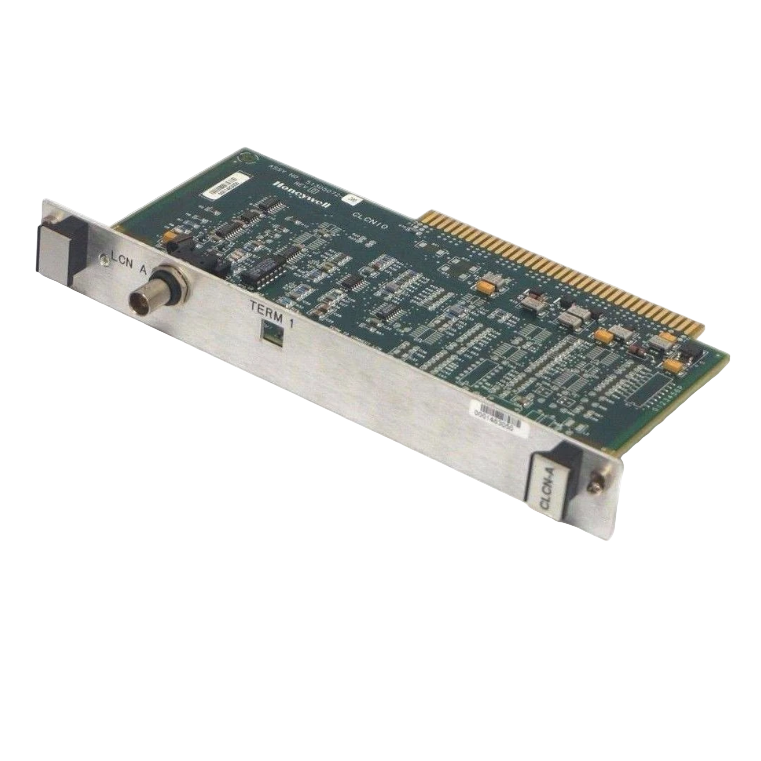

51305072-200 | Honeywell CLCN-A Paddle Board I/O Card
- Regular price
- $1,512.00
- Sale price
- $1,512.00
- Regular price
-
Couldn't load pickup availability
Do you need help?
Product Description P/N: 51305072-200
Description
The Honeywell 51305072-200 is a CLCN-A paddle board I/O card used in dual-node chassis configurations to connect the LCN interface with the LCN “A” cable. It provides reliable coaxial connectivity for industrial control networks with redundant communication paths.
Technical Specifications
| Condition | New/Never Used Surplus |
| Brand | Honeywell |
| Category | Industrial Control Hardware |
| Part Number | 51305072-200 |
| Subcategory | I/O Cards |
| Product Type | Paddle board (CLCN-A) |
| Function | LCN “A” cable interface |
| Cable Type | Coaxial (LCN A) with BNC tee connectors |
| Extension Support | LCNE2/XLCNE2 fiber optic extenders |
| Max Coaxial Segments | 7 (1 central + 6 remote) |
| Cable Identification | Yellow shrink-fit bands |
| Compatible Systems | Honeywell Total Plant Network (TPN) nodes |
| Weight | 0.35 lbs |
Information About 51305072-200
The 51305072-200 functions as the paddle board interface for LCN Cable A in Honeywell’s Total Plant Network (TPN) systems, forming part of the dual redundant Local Control Network (LCN) configuration. Cable A connects through this board, while Cable B is connected via a separate CLCN-B paddle board in the same chassis. The board includes BNC tee connectors that allow a node to be disconnected from the coaxial segment without interrupting communication between other nodes. Cable A is identified with yellow shrink-fit bands, and the LCN supports up to seven coaxial segments, including a central segment and up to six remote nodes. When extended with LCNE2/XLCNE2 fiber optic extenders, the system provides ground isolation and supports communication in hazardous areas.
Key Features:
-
LCN Cable A Interface: Serves as the connection point for LCN “A” cable in dual-node Honeywell control systems.
-
BNC Tee Connectors: Enable node disconnection without affecting communication on the rest of the segment.
-
Redundant Communication Support: Works in conjunction with CLCN-B paddle board for dual-path LCN redundancy.
-
Coaxial and Fiber Optic Integration: Supports extension with LCNE2/XLCNE2 modules for hazardous or remote areas.
-
Segment Connectivity: Allows up to seven coaxial segments (one central and up to six remote) in the LCN.
-
Color-Coded Cabling: Yellow shrink-fit bands identify Cable A, ensuring correct installation and maintenance.
-
Industrial-Grade Design: Built for continuous operation in demanding process control environments.
-
Lightweight and Compact: Weighs only 0.35 lbs for easy installation in existing chassis.
The 51305072-200 delivers the connectivity and redundancy required for reliable communication within Honeywell’s LCN-based control networks.
