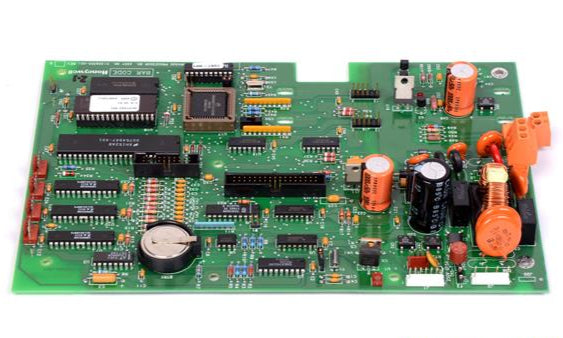

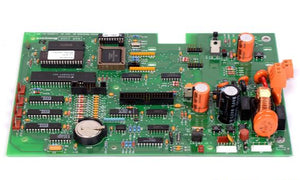

51309355-001 | Honeywell Processor Main Board DR4500 Chart
- Regular price
- $2,272.00
- Sale price
- $2,272.00
- Regular price
-
Couldn't load pickup availability
Do you need help?
Product Description P/N: 51309355-001
Description
The 51309355-001 is a processor board used in the Honeywell DR4500 circular chart recorder series. It digitally records up to four process variables while displaying real-time values and generating precise analog pen traces via fiber-tip pens.
Technical Specifications
| Condition | New/Never Used Surplus |
|---|---|
| Brand | Honeywell |
| Category |
PLCs/Machine Control
|
| Part Number | 51309355-001 |
| Subcategory | PC Board Computer |
| Model | DR4500 Processor Board |
| Function | Process variable recorder & controller interface board |
| Supported Inputs | Up to 4 analog variables via RTD, thermocouples, current loops |
| Recording Type | Circular chart, fiber-tip pens |
| Display | Digital display of process values |
| Control Outputs | Supports 1–2 digital control loops |
| Mounting | PCB assembly for DR4500 chart recorder |
| Dimensions | ≈ 2 × 13.5 × 24 cm (~0.06 kg volume) |
| Status | Discontinued by manufacturer |
| Recommended Use | Industrial & lab chart recording and control applications |
| Weight | 0.22 lb (≈ 0.1 kg) |
Information About 51309355-001
The 51309355-001 is a discontinued OEM processor board from Honeywell’s DR4500 chart recorder line, designed to handle both data acquisition and analog chart functionality. It integrates a digital display, supports continuous recording of multiple process variables, and outputs analog signals for connected controllers. Optimized for industrial and laboratory environments (through blast furnaces, cold rooms, etc.), it can support one or two controller loops. Despite its discontinued status, used and refurbished units are still sourced through specialty distributors with warranties and repair support.
Key Features:
- Multiple Process Variable Recording: Logs up to four variables simultaneously on the same timeline.
- Hybrid Analog/Digital Output: Combines analog fiber-tip pen traces with precise digital readings.
- Digital Display: Shows current process variable values in engineering units.
- Configurable Input Ranges: Compatible with various sensors and transmitters.
- Optional Loop Control: Offers one or two digital controllers to operate valves, dampers, etc.
- Field Repair Support: Refurbished units and component-level repair available.
- Compact and Lightweight: Approximately 0.22 lb (0.1 kg), easy to install.
- OEM Discontinuation: No longer produced by Honeywell, available via third-party suppliers.
- Warranty Options: Available with up to 2-year support through refurbishers.
- Industrial Reliability: Designed for continuous operation in industrial settings.
The 51309355-001 delivers reliable multi-variable recording and control in industrial chart recorder systems.
