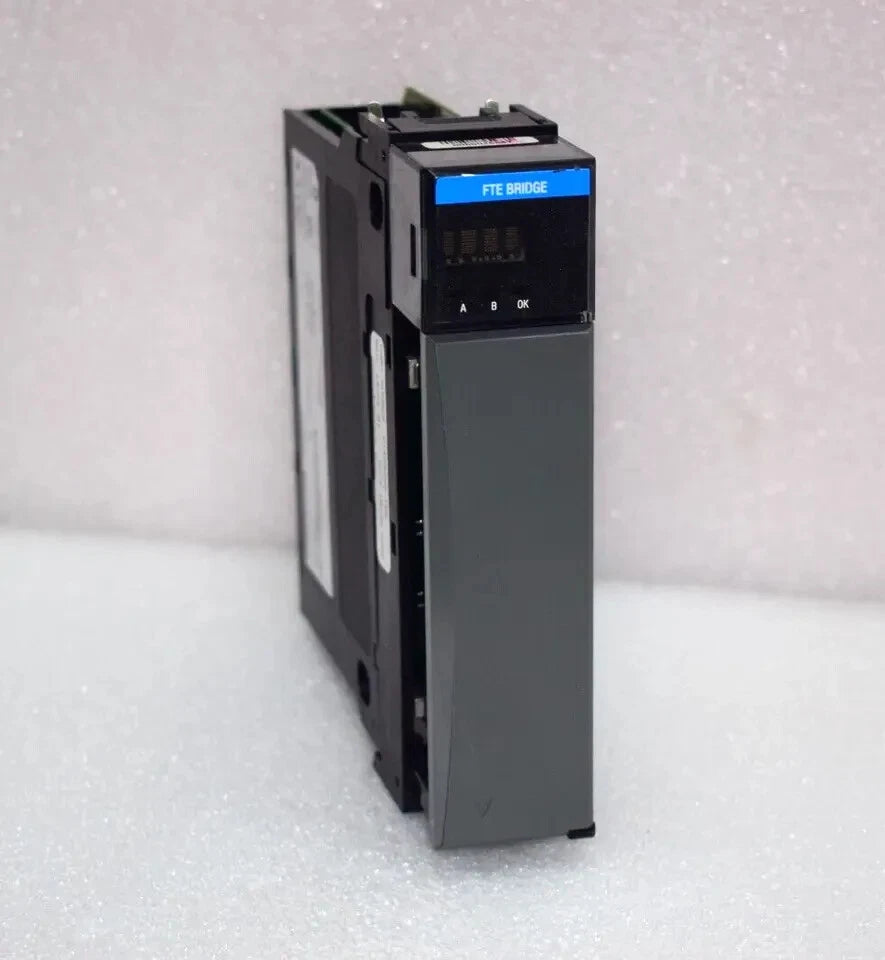

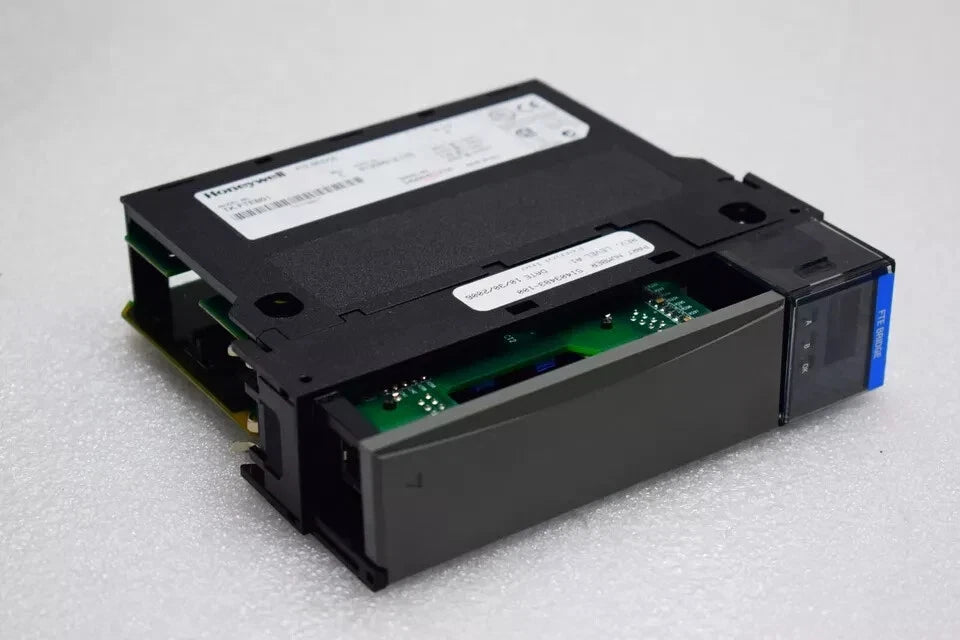

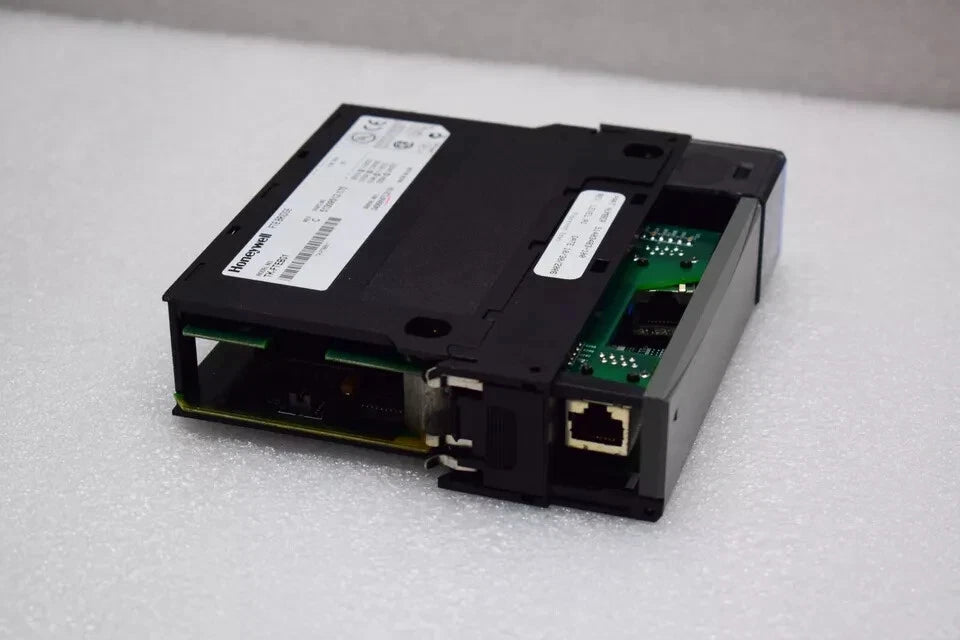

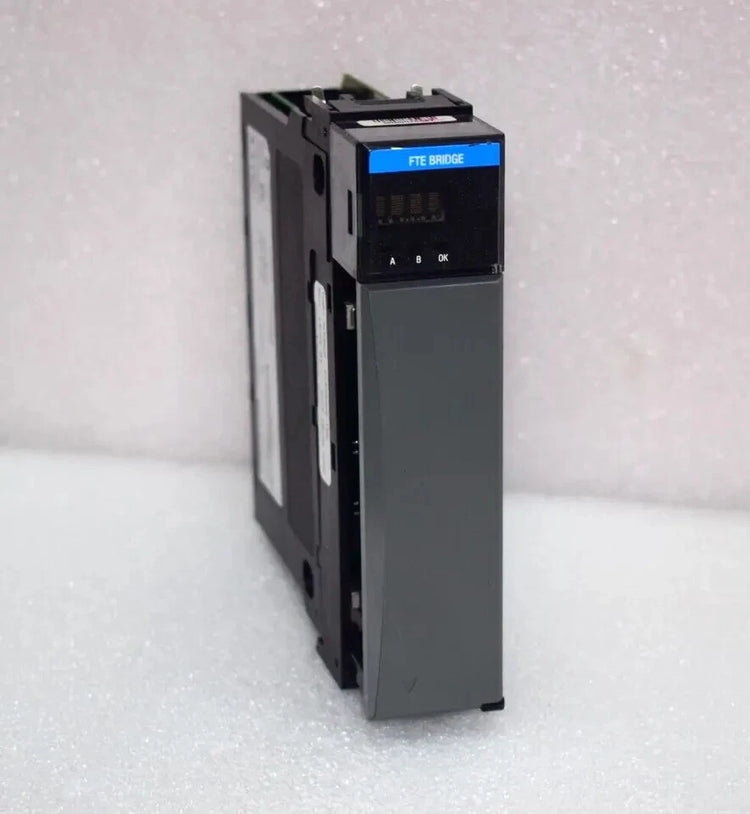

51309512-175 | Honeywell Digital I/O Bridge Module 4–20 mA Outputs Modbus RTU IP65
- Regular price
- $1,987.00
- Sale price
- $1,987.00
- Regular price
-
Couldn't load pickup availability
Do you need help?
Product Description P/N: 51309512-175
Description
The Honeywell 51309512-175 is a high-precision digital input/output module designed for industrial automation and process control applications. It provides four isolated 4–20 mA analog outputs with exceptional accuracy and repeatability for demanding environments. This module is built for reliable operation in wide temperature ranges and harsh conditions.
Technical Specifications
| Condition | New/Never Used Surplus |
| Brand | Honeywell |
| Category | PLCs/Machine Control |
| Part Number | 51309512-175 |
| Subcategory | PLC Module/Rack |
| Function | Four isolated 4–20 mA analog outputs |
| Applications | Industrial automation, process control, monitoring |
| Communication Protocol | Modbus RTU |
| Output Current | 4–20 mA |
| Output Impedance | 100 Ω |
| Resolution | 12 bits |
| Accuracy | ±0.1% |
| Repeatability | ±0.02% |
| Mounting Type | DIN rail |
| Protection Rating | IP65 |
| Operating Temperature Range | -40°C to +75°C |
| Voltage Range | 1.2–24 VDC |
| Current Draw | 0.007–0.020 A |
| Dimensions | 120 × 80 × 40 mm |
| Weight | 0.64 lbs (0.28 kg) |
Information About 51309512-175
The 51309512-175 is part of Honeywell’s FTE series of bridge modules, designed to integrate seamlessly into industrial control systems. It operates on 1.2–24 VDC with a current draw between 0.007–0.020 amps, ensuring efficient performance. Supporting Modbus RTU communication, it offers compatibility with various PLC and control platforms. The unit is DIN rail mountable and carries an IP65 rating, making it dust-tight and resistant to water jets for robust field installation.
Key Features:
- Four Isolated Outputs: Provides 4 independent 4–20 mA analog outputs for precise control.
- Modbus RTU Protocol: Enables integration with a wide range of automation and control systems.
- High Accuracy: ±0.1% accuracy with ±0.02% repeatability ensures stable performance.
- Rugged Protection: IP65-rated housing protects against dust and water jets.
- Wide Temperature Range: Operates reliably from -40°C to +75°C for diverse environments.
- Compact DIN Rail Mount: Saves space while simplifying installation.
- Low Power Consumption: Operates at 1.2–24 VDC, drawing only 0.007–0.020 amps.
- Industrial Grade Build: Designed for long-term reliability in harsh conditions.
The 51309512-175 delivers the reliability and precision required for industrial automation and process monitoring applications.
