5136-DNP-PCI | SST Interface Card
- Regular price
- $1,765.00
- Sale price
- $1,765.00
- Regular price
-
Couldn't load pickup availability
Do you need help?
Product Description P/N: 5136-DNP-PCI
Description
The 5136-DNP-PCI is a high-performance DeviceNet-compatible PCI interface card designed to provide seamless integration with industrial automation networks. It supports various CAN data rates and configurations, making it suitable for complex and scalable control systems.
Technical Specifications
|
Condition |
New/Never Used Surplus |
|---|---|
| Brand | SST |
| Category |
Interface Cards
|
| Part Number | 5136-DNP-PCI |
| Subcatecory |
DeviceNet / CAN Interface
|
| Form Factor | 32-bit PCI short card |
| Processor | 40 MHz |
| RAM / Flash | 512 KB / 512 KB |
| Shared RAM | 256 KB |
| DeviceNet Connector | 5-pin DeviceNet |
| CAN Data Rates | Up to 1 Mbaud (125, 250, 500 Kbaud supported) |
| Power Requirements | +5 V ±5%, 400 mA (typical) |
| Temperature Range (Operating) | 0 to 50°C (32 to 122°F) |
| Electrical Isolation | 500 V CAN interface isolation |
Information About 5136-DNP-PCI

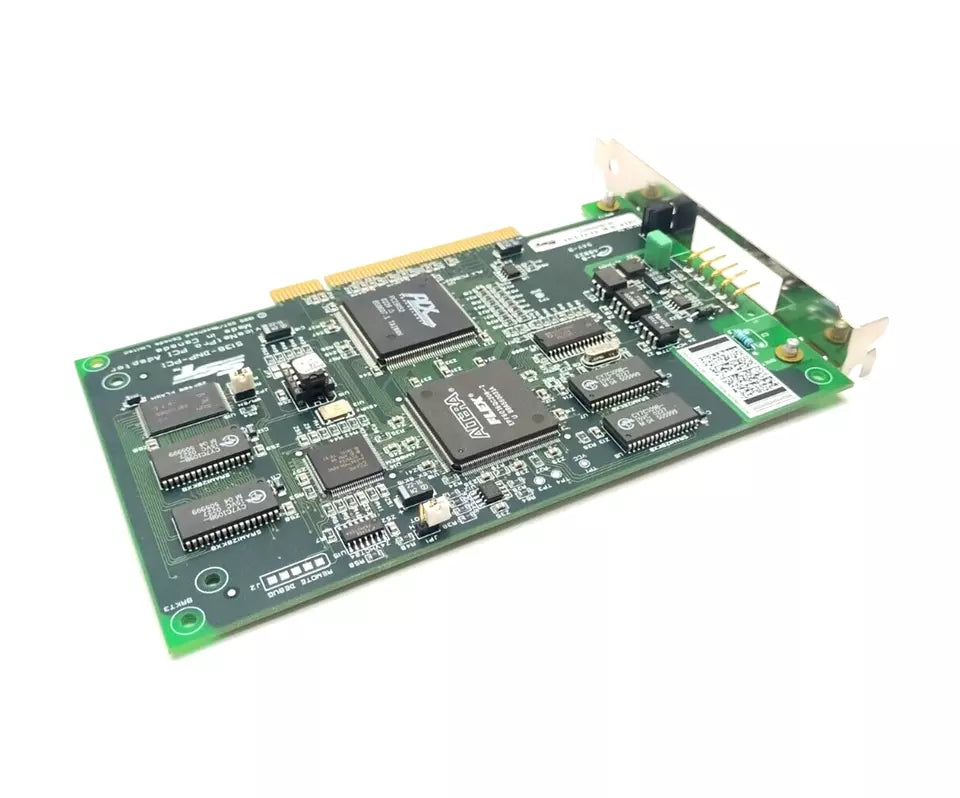

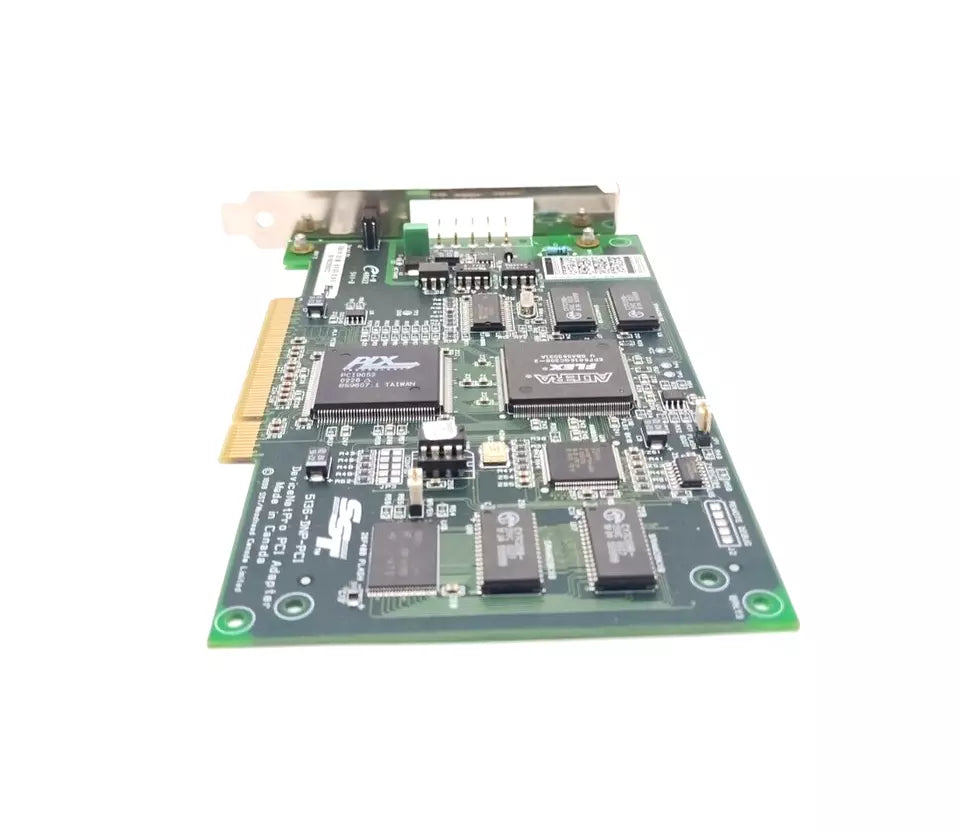

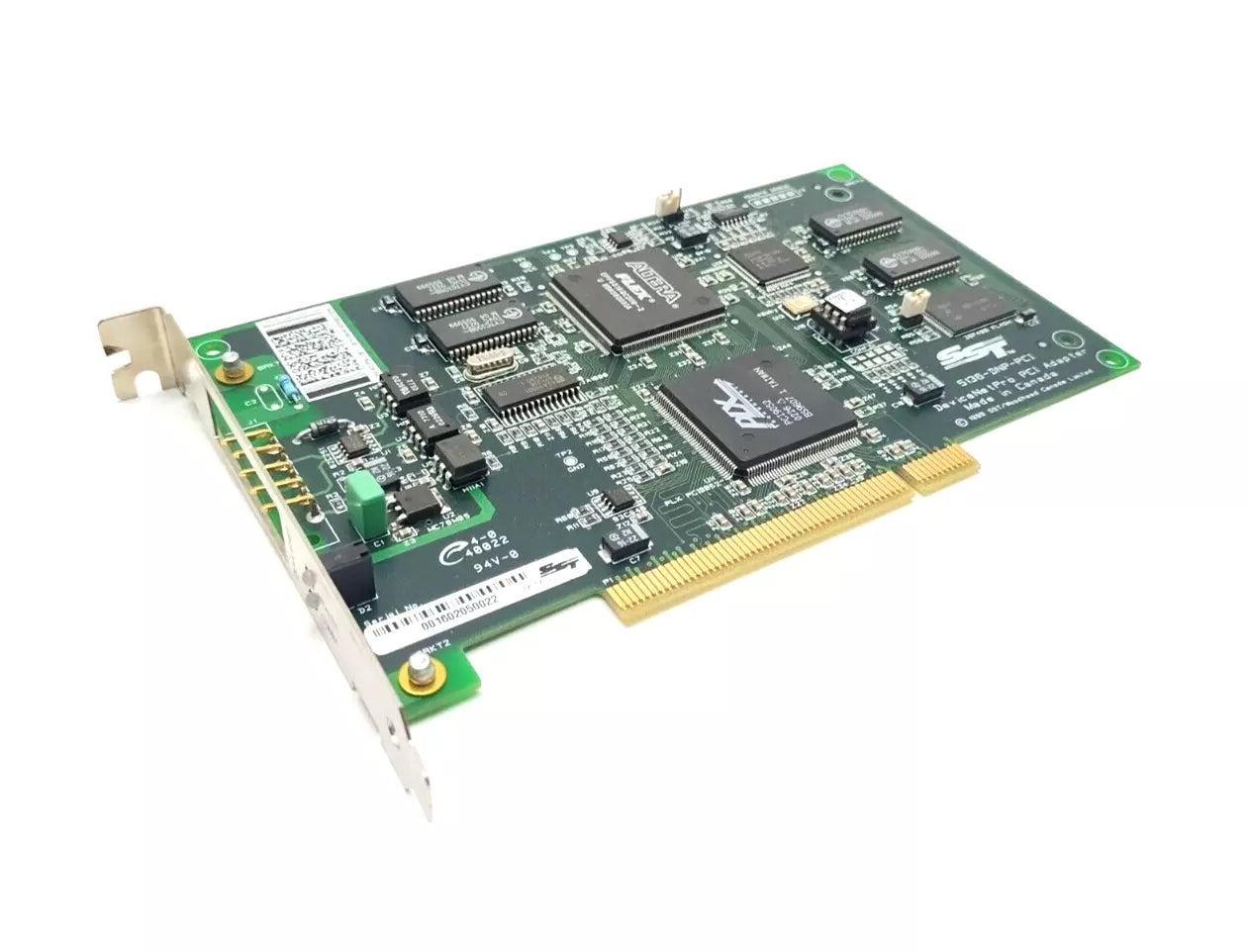

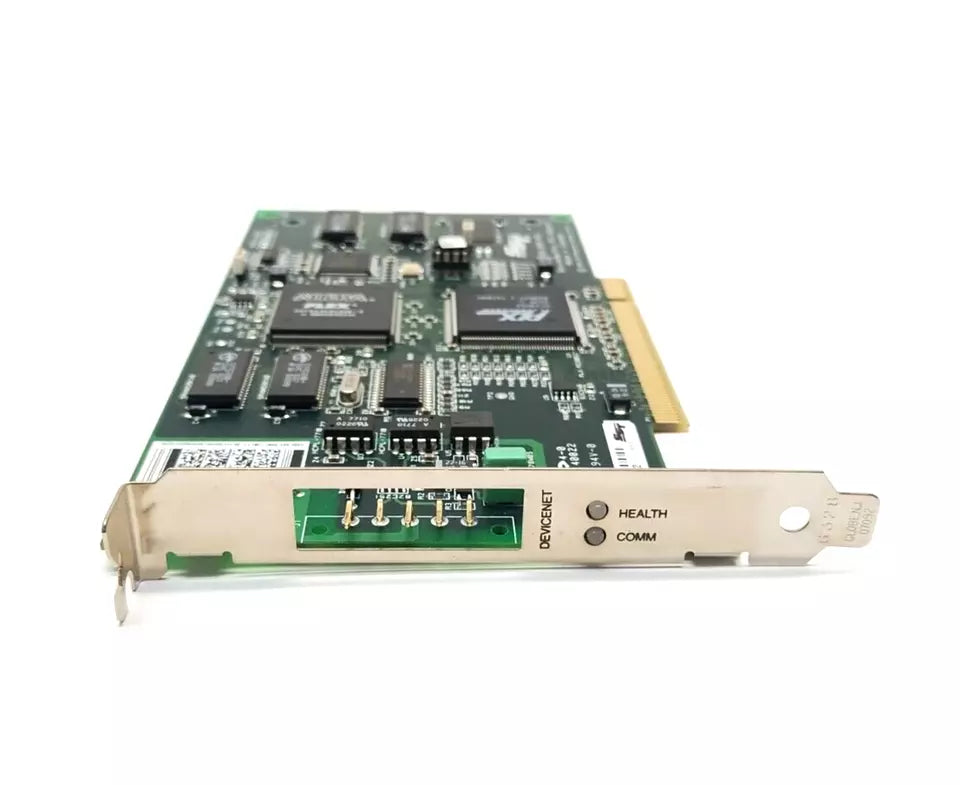

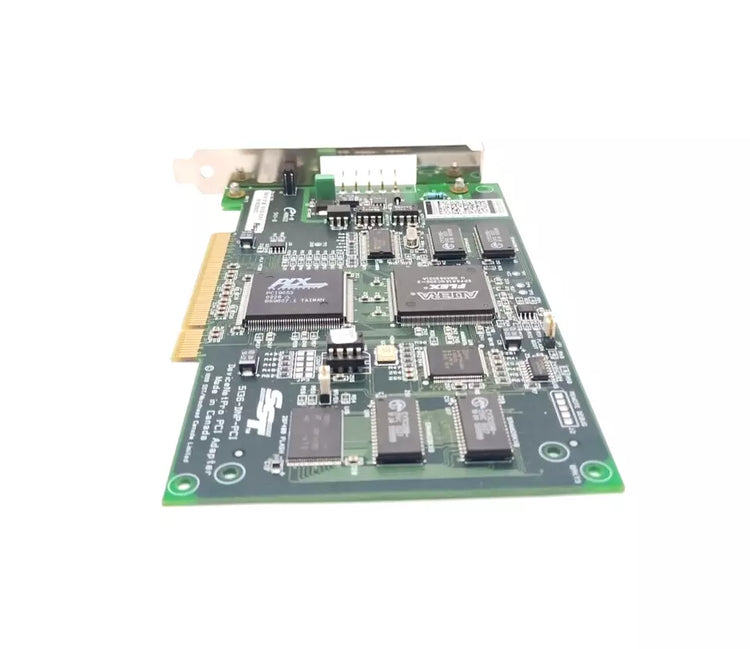

The 5136-DNP-PCI is a 32-bit PCI short card with a surface-mount design, compliant with PCI Specification 2.1. It comes equipped with 256 KB shared RAM, a 40 MHz processor, 512 KB RAM, and 512 KB flash memory, providing robust performance for data-intensive applications. This card supports standard PCI interrupts and includes a 5-pin DeviceNet connector as well as a network status LED indicator.
Key Features:
-
High-Speed Performance: 40 MHz processor with dedicated RAM and Flash
-
Wide Compatibility: CAN 2.0A support, all DeviceNet data rates (125, 250, 500 Kbaud)
-
Industrial Resilience: Operates in temperatures from 0 to 50°C; storage -25 to 70°C
-
Electrical Isolation: 500 V optically isolated CAN interface for safer operation
-
Plug & Play Ready: Driver and indicator support for rapid deployment
-
Scalability: Supports multiple card configurations per host
The 5136-DNP-PCI is ideal for industrial control systems requiring DeviceNet integration and CAN communication under demanding conditions.
