51402089-100 | Honeywell EPDG2 Interface Card for Universal Station Nodes

Description

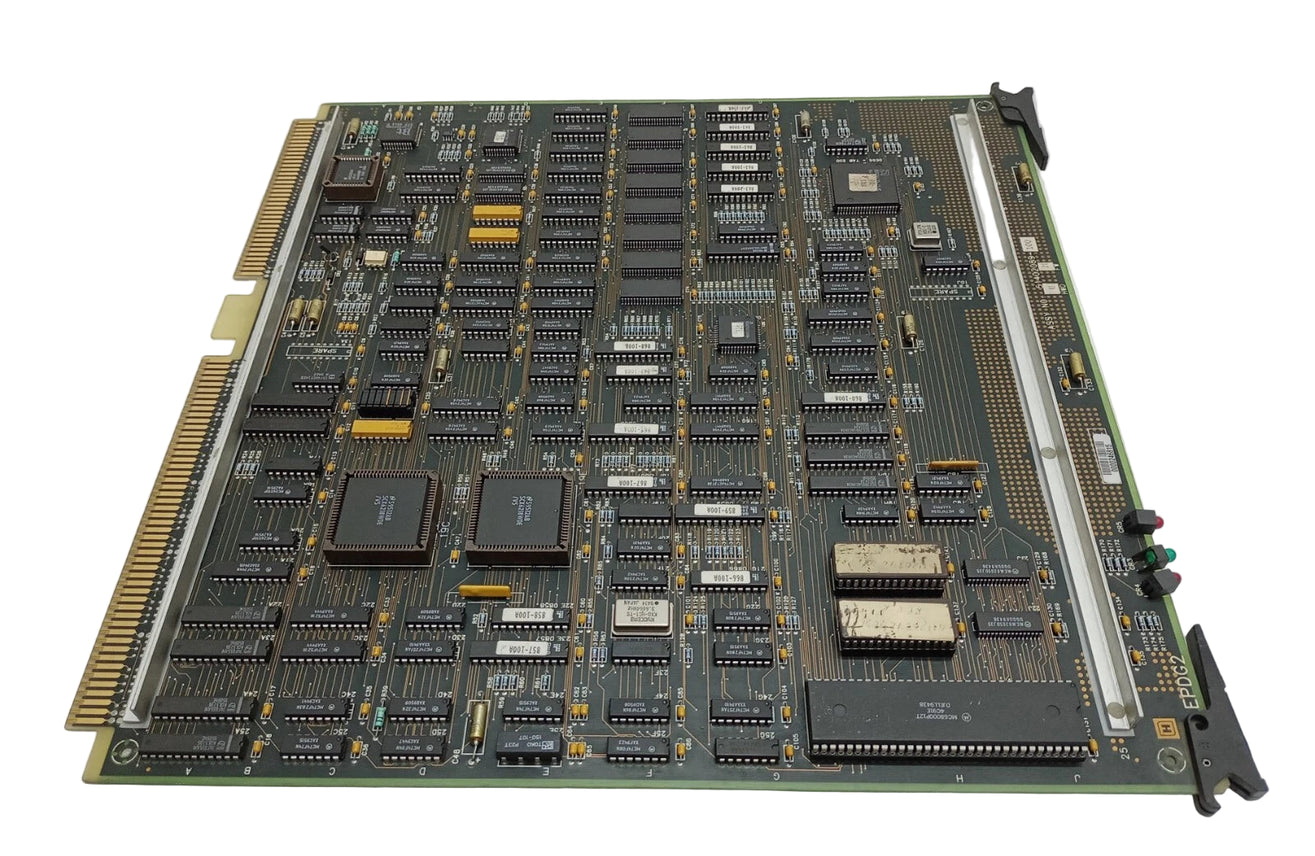

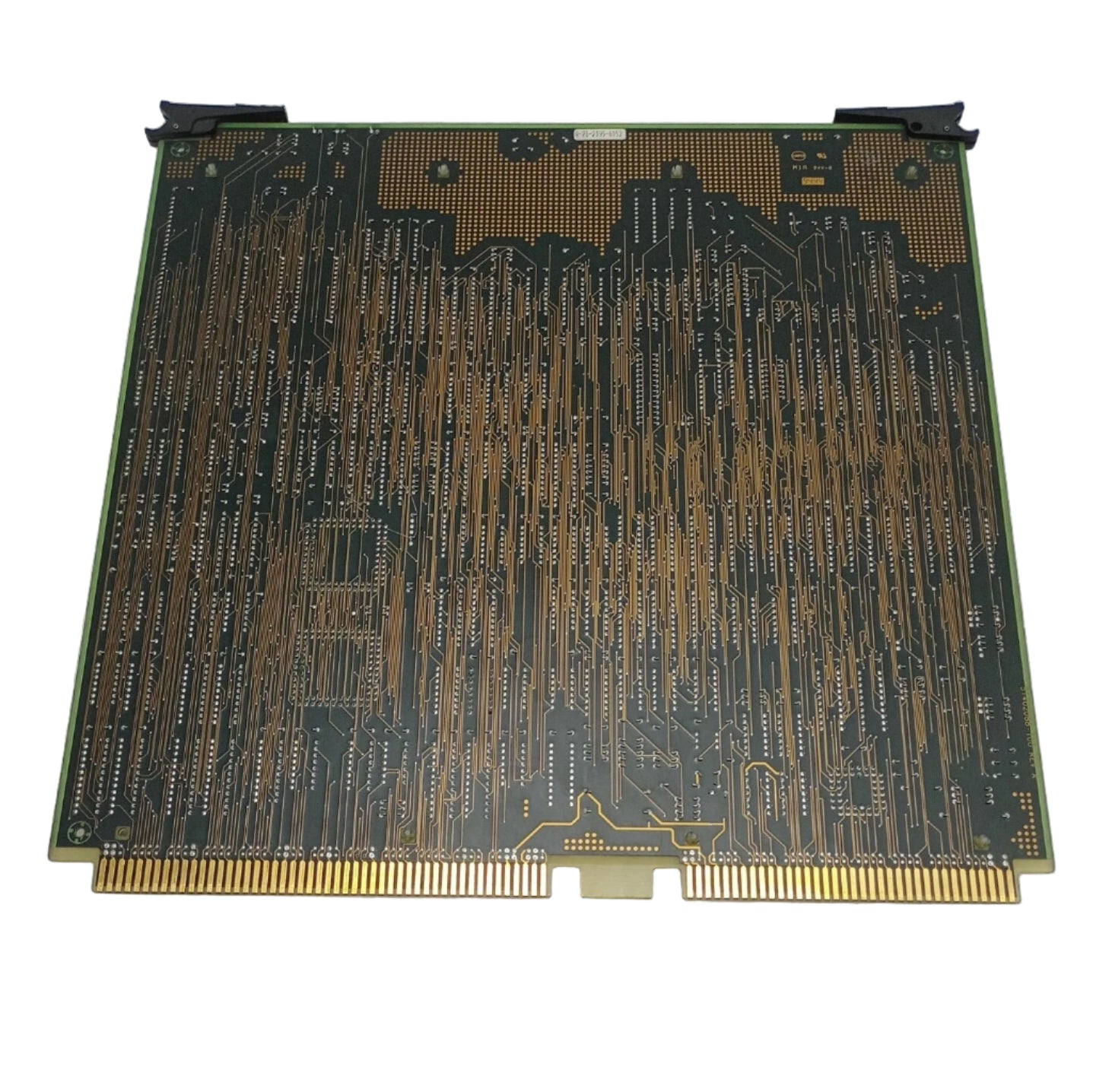

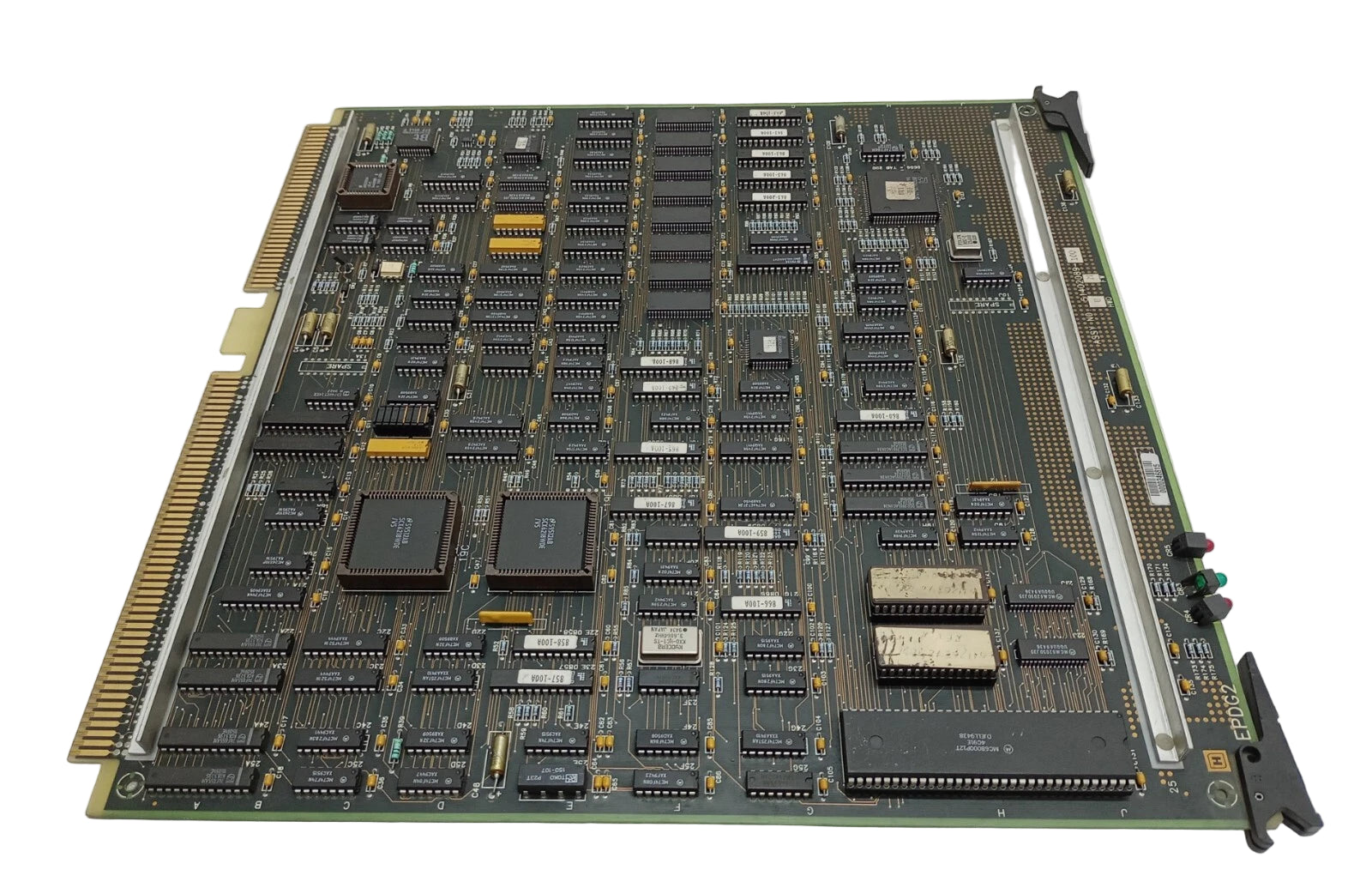

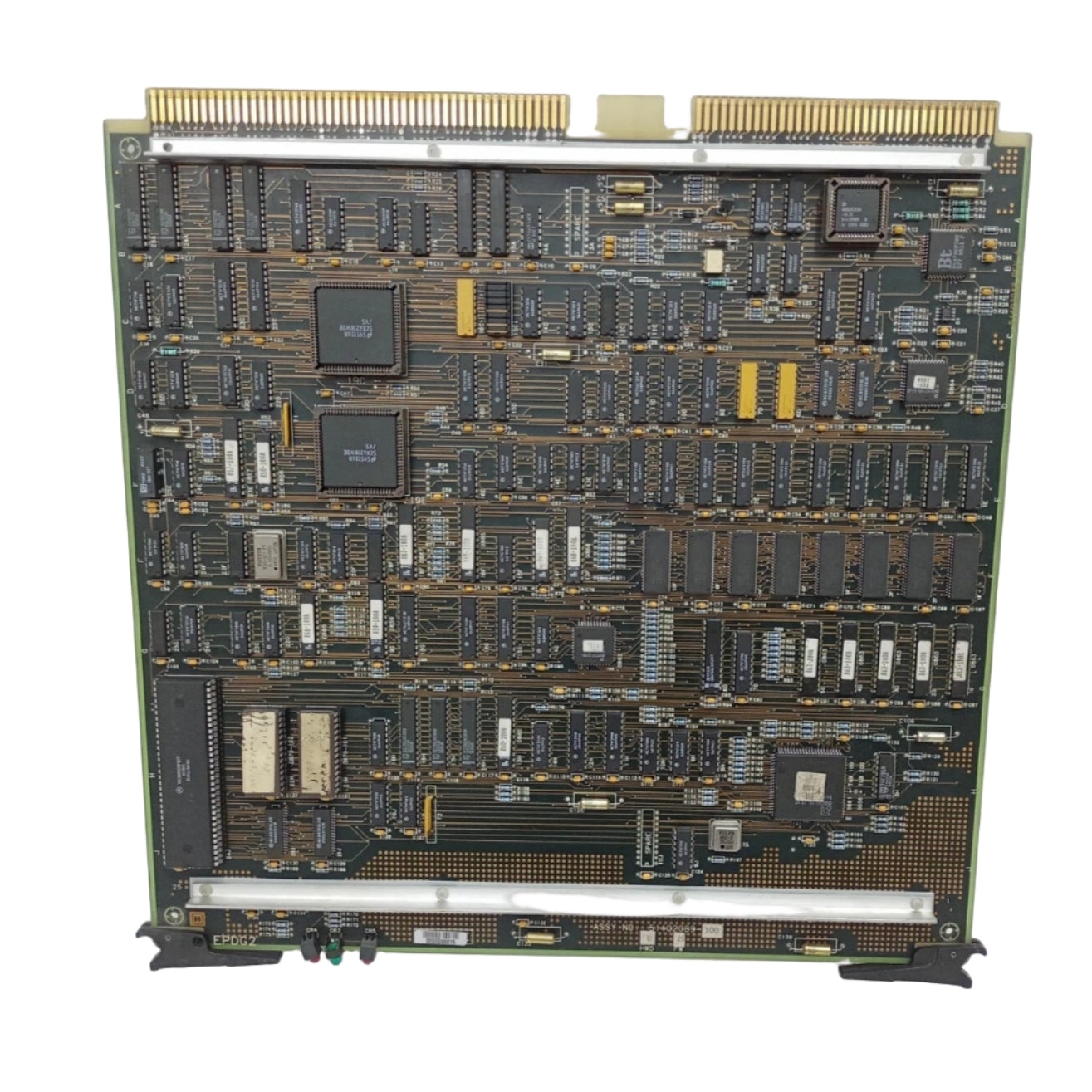

The Honeywell 51402089-100 is an Enhanced Peripheral Display Generator (EPDG2) interface card designed for Universal Station nodes. It provides video, peripheral, and communication signal management for integrated control system workstations.

Technical Specifications

Information About 51402089-100

The 51402089-100 is a second-generation EPDG2 card developed by Honeywell to manage display and peripheral functions in Universal Station nodes within industrial control environments. It generates the video signal for the system display, controls SCSI interfaces for Bernoulli or Zip drives, and supports user input devices such as touchscreens, trackballs, or mice. Additionally, it handles keyboard communication and printer connectivity, ensuring smooth operation of multiple workstation components. Its robust design and precise signal handling make it well-suited for demanding process control environments where reliable operator interface performance is critical.

Key Features:

• Video Signal Generation: Provides the required output for workstation display monitors.

• SCSI Device Control: Supports Bernoulli and Zip drives for data storage and retrieval.

• Multi-Device Input Support: Interfaces with touchscreens, trackballs, and mice for flexible user interaction.

• Keyboard Communication Management: Ensures responsive and reliable keyboard input handling.

• Printer Connectivity: Enables integration with printing devices for operational documentation.

• Industrial Control Integration: Designed specifically for Honeywell Universal Station nodes.

• Second-Generation EPDG2 Design: Offers improved reliability and performance over earlier versions.

• Rugged Construction: Built to withstand continuous operation in industrial environments.

The 51402089-100 delivers the reliability and functionality required to maintain seamless operation of displays and peripherals in Honeywell control system workstations.
