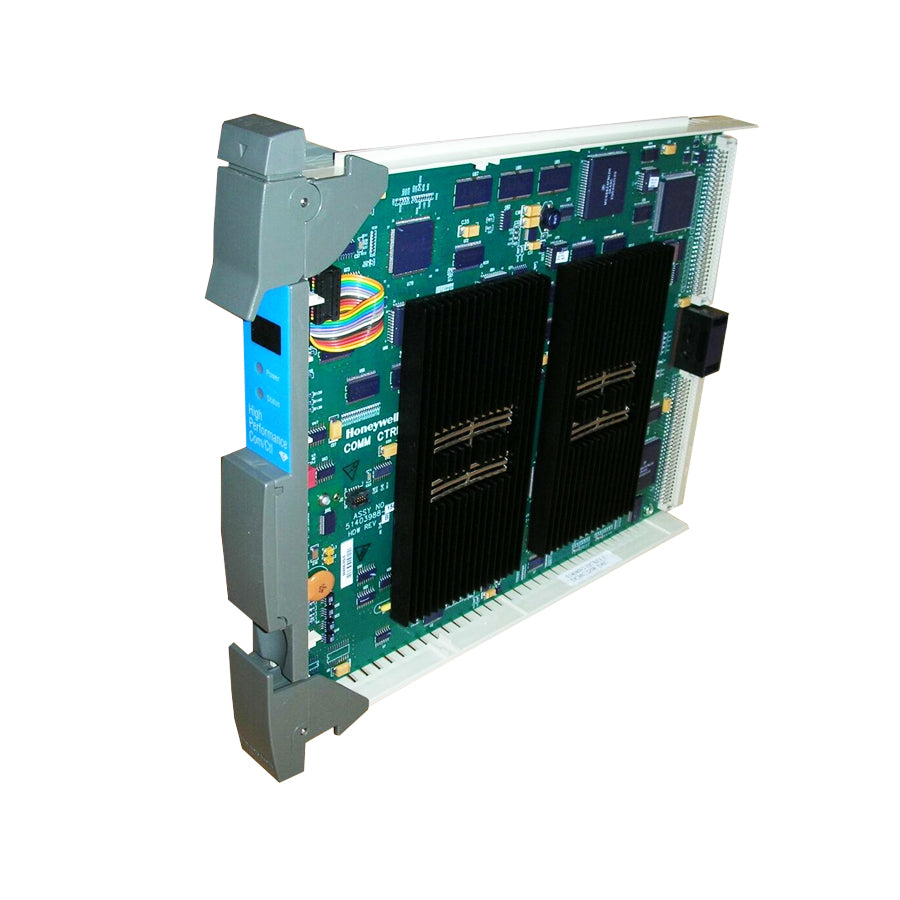

51403988-150 | Honeywell High Performance Process Manager Comm Controller
- Regular price
- $6,999.00
- Sale price
- $6,999.00
- Regular price
-
Couldn't load pickup availability
Do you need help?
Product Description P/N: 51403988-150
Description
The Honeywell 51403988-150 is a discontinued High Performance Process Manager Communication Controller designed for managing real-time communication, logic control, and sequencing within Universal Control Network (UCN) systems. It served as a central node in advanced process automation setups.
Technical Specifications
| Condition | New/Never Used Surplus |
|---|---|
| Brand | Honeywell |
| Category |
PLCs/Machine Control
|
| Part Number | 51403988-150 |
| Subcategory | PLC Module/Rack |
| Power Supply | 24 VDC (converted to 5 VDC internally) |
| Communication Network | UCN (Universal Control Network) |
| Network Speed | 5 Mbps |
| Network Topology |
Token Bus (carrier-band) |
| Card Assembly Components | Comm/Control Card, I/O Link Card, UCN Interface |
| Visual Indicators | Power, Status, Rx-A, Rx-B, UCN A, UCN B |
| Slot Requirements | 2 left-most card file slots |
| Compatibility | Replaces 51403422-150 |
| Dimensions (W×L×H) | 32.5 × 3 × 28 cm |
| Weight | 0.7 kg |
Information About 51403988-150
The 51403988-150 is part of the High Performance Process Manager (HPM) system, handling both communication and control functions via the UCN — a high-speed 5 Mbps token bus network optimized for secure industrial data exchange. This controller executes user programming, regulatory logic, and time-stamped data access. It replaces legacy part 51403422-150 and operates alongside the High-Performance I/O Link card (51309276-150) and the HPM UCN Interface module (51402573-150). These components form a coordinated assembly occupying the two leftmost card slots in a control rack. The unit includes built-in indicators for power presence, self-test status, and UCN activity.
Key Features:
- Integrated Communication & Control: Combines communication handling with execution of logic, sequencing, and user-defined programs.
- High-Speed UCN Interface: Operates on a secure 5 Mbps carrier-band UCN with token bus access protocol.
- Multi-Card Architecture: Supports HPMM system with paired Comm/Control and I/O Link cards, plus UCN interface.
- Self-Diagnostic Indicators: Power and Status LEDs validate power presence and internal test completion.
- Legacy Replacement: Supersedes the earlier 51403422-150 controller for higher performance.
- Slot-Specific Installation: Designed for left-most card file positions with integrated vertical UCN connectivity.
- Robust Signal Pathway: Includes dedicated SRAM, I/O link processors, and voltage conversion circuitry.
- Visual Channel Monitoring: Front-facing indicators (Rx-A/B, UCN A/B) allow easy network status checks.
- Modular Power Supply Support: Powered by +24 VDC converted to +5 VDC for subsystem operation.
The 51403988-150 provides combined logic execution and network communications within Honeywell’s high-performance UCN-based process automation environments.
