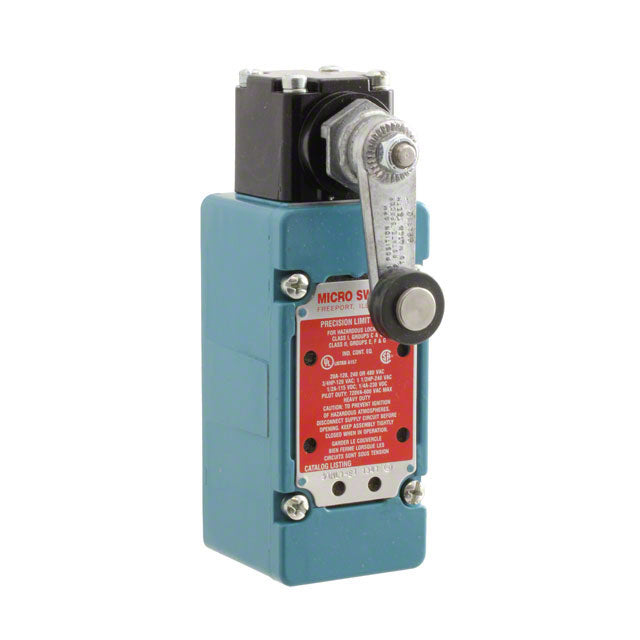

51ML1-E1 | Honeywell Heavy-Duty SPDT Limit Switch with Roller Lever, 20A 600VAC
- Regular price
- $3,099.00
- Sale price
- $3,099.00
- Regular price
-
$0.00
Couldn't load pickup availability
Do you need help?
Product Description P/N: 51ML1-E1
Description
The Honeywell 51ML1-E1 is a single-pole double-throw (SPDT) heavy-duty limit switch with a nylon roller lever designed for reliable position sensing in industrial environments. Featuring a durable die-cast alloy housing and threaded conduit entry, it ensures safe operation even in hazardous locations. This switch provides high performance with precise travel characteristics and robust electrical ratings for demanding control applications.
Technical Specifications
| Condition | New/Never Used Surplus |
| Brand | Honeywell |
| Category | Sensors & Switches |
| Part Number | 51ML1-E1 |
| Subcategory | Limit Switch |
| Operator Configuration | Standard |
| Head/Operator | Side Rotary Roller Lever |
| Operating Force | 3 lb (13.3 N) |
| Type | Heavy-Duty Hazardous Location Limit Switch |
| Head Action | Spring Return, Standard |
| Poles/Contacts | SPDT (1 NO / 1 NC) |
| Current Rating | 20A |
| Voltage Rating | 600 VAC / 230 VDC |
| Travel Direction | CW or CCW |
| Pre-Travel | 12° Maximum |
| Differential Travel | 4° Maximum |
| Over-Travel | 60° Minimum |
| Body Construction | Die-Cast Alloy |
| Connection Type | Threaded Entry |
| Connection Size | 1/2 in. NPT |
| Environmental Rating | NEMA A600 |
| Hazard Classification | Class I, Groups C & D; Class II, Groups E, F & G |
| Weight | 2.34 lbs |
Information About 51ML1-E1
The 51ML1-E1 is part of Honeywell’s MICRO SWITCH™ ML Series of heavy-duty limit switches built for hazardous locations and industrial automation. It features a side rotary roller lever actuator with spring-return action, suitable for applications requiring accurate position feedback under mechanical or environmental stress. The die-cast alloy construction offers excellent durability, while the threaded entry design allows for secure conduit connection. With a SPDT contact configuration and 20A rating, this unit delivers dependable switching performance in both AC and DC circuits.
Key Features:
- SPDT Contact Configuration: Provides one normally open and one normally closed contact for flexible control logic.
- Heavy-Duty Construction: Die-cast alloy housing ensures long-term durability in demanding industrial environments.
- Hazardous Location Rated: Certified for Class I, Groups C and D, and Class II, Groups E, F, and G hazardous areas.
- High Current Capacity: Handles up to 20 amps at 600 VAC, supporting a wide range of power and signal applications.
- Precision Travel Control: Features 12° maximum pre-travel, 4° differential, and 60° over-travel for accurate operation.
- Rugged Roller Lever Operator: Nylon roller lever allows smooth and consistent actuation with minimal wear.
- Threaded Electrical Entry: 1/2" NPT conduit entry ensures secure wiring connections and easy installation.
- Wide Operating Range: Suitable for clockwise or counterclockwise travel direction with spring-return mechanism.
- Reliable Electrical Performance: NEMA A600 rated for industrial use, offering dependable contact integrity under load.
- Industrial-Grade Design: Built for machinery, conveyor systems, and control panels requiring dependable limit sensing.
The 51ML1-E1 delivers the reliability and precision required for industrial automation and hazardous environment position control.
