531X111PSHARG2 | General Electric Motor Field Control and Power Supply Board
- Regular price
- $2,019.00
- Sale price
- $2,019.00
- Regular price
-
Couldn't load pickup availability
Do you need help?

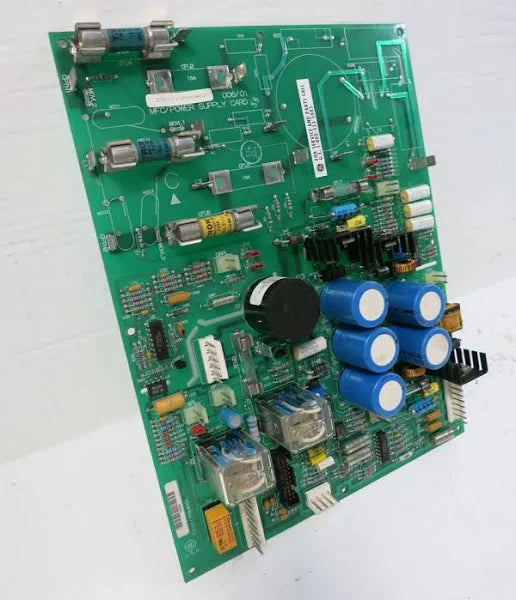

Product Description P/N: 531X111PSHARG2
Description
The General Electric 531X111PSHARG2 is a motor field control and power supply board designed to deliver stable DC outputs and precise field regulation for industrial drive systems. As part of the 531X Series, it supports reliable drive operation by generating multiple supply voltages and powering motor field circuitry.
Technical Specifications
| Condition | New/Never Used Surplus |
| Brand | General Electric |
| Category | Power Supplies |
| Part Number | 531X111PSHARG2 |
| Subcategory | Power Supply |
| Board Type | Motor field control and power supply board |
| Series | 531X Series |
| Voltage Outputs | 5 VDC, 15 VDC, 24 VDC |
| Relays | RUN (K1), MAX (K2), FAULT (K3) |
| Potentiometers | P1 Field Scale, P2 CFB Zero, P3 CFB Adjust |
| Jumpers | 5 configurable jumpers |
| Motor Field Control | Integrated pulse transformer |
| Compatibility | GE drives and exciters (external exciter support) |
| Application | Industrial drive power distribution and field regulation |
Information About 531X111PSHARG2
The 531X111PSHARG2 is a replacement power supply and field control board developed by GE for use in a variety of drives and exciters within the 531X product family. Designed as a G2 revision, it supports operation with external exciters while supplying regulated 5 VDC, 15 VDC, and 24 VDC outputs required by the host drive. The board incorporates relays, jumpers, potentiometers, and a pulse transformer to enable configuration, calibration, and precise motor field control. With robust construction and compatibility across GE industrial systems, the 531X111PSHARG2 integrates seamlessly into drive cabinets requiring dependable power distribution and field regulation.
Key Features
- Multi-Voltage Output Capability: generates 5 VDC, 15 VDC, and 24 VDC power supplies needed for GE drive system operation.
- Integrated Motor Field Control: includes a pulse transformer to regulate and supply motor field circuitry.
- G2 Revision Design: supports use with external exciters for enhanced system configuration.
- Three System Relays: RUN (K1), MAX (K2), and FAULT (K3) provide operational control and status management.
- Adjustable Calibration Potentiometers: P1 (Field Scale), P2 (CFB Zero), and P3 (CFB Adjust) allow fine-tuning of current feedback and circuit behavior.
- Configurable Jumpers: five onboard jumpers enable selection and adjustment of feedback and signal parameters.
- Industrial-Grade PCB Construction: engineered to maintain stable electrical performance within GE drive cabinets.
- Broad System Compatibility: suitable for a range of GE drives and exciters in industrial applications.
The 531X111PSHARG2 delivers the reliability and precision required for stable power supply generation and accurate motor field control in GE industrial drive systems.
