531X126SNDAEG1 | General Electric Snubber Printed Circuit Board

Description

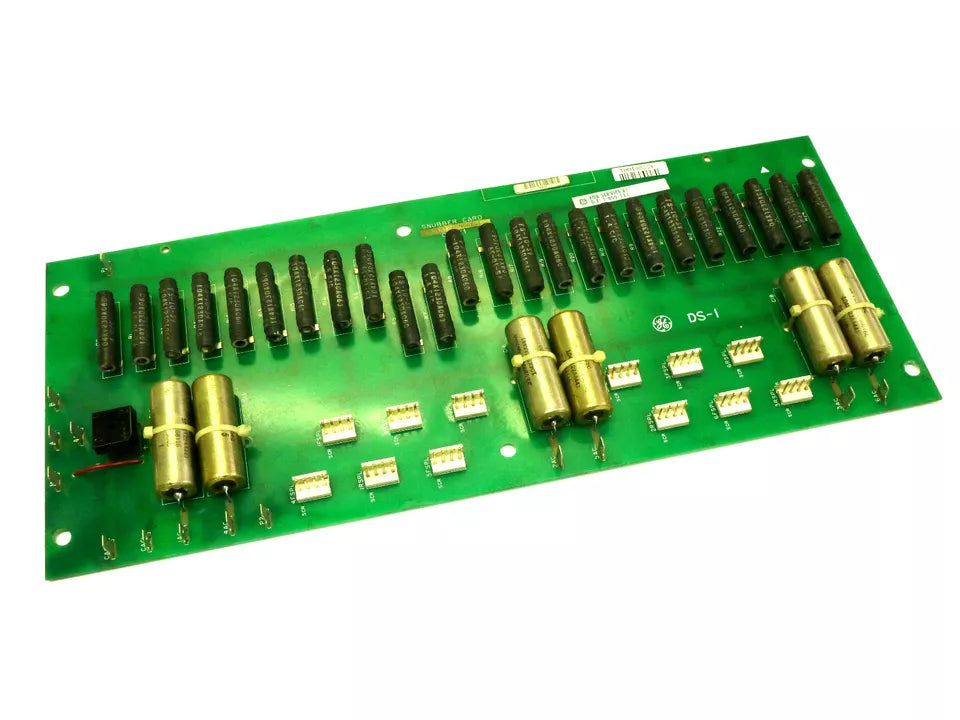

The 531X126SNDAEG1 is a Snubber Printed Circuit Board manufactured by General Electric. This board is identified by its part number (531X126SNDAEG1), the designation of "SNUBBER CARD," and the General Electric logo, along with the marking +SV-1, displayed on its face. It features twelve sets of male terminals with white plastic bases and backing, each comprising four thin metal prongs for attachment to surrounding circuit boards.

Included on the board is a small black square transistor, a semiconductor device utilized for switching or amplifying electrical power or electronic signals. This transistor is identifiable by three connection points on the circuit board. Additionally, the 531X126SNDAEG1 incorporates fourteen metal tabs arranged vertically throughout its surface.

Furthermore, the board is equipped with six large silver resistors, securely fastened to the circuit board with zip ties, and twenty-four long black resistors, each labeled with the resistor equation in white. Resistors, as passive two-terminal electrical components, serve various functions in electronic circuits, including current flow reduction, signal level adjustment, voltage division, biasing active elements, and transmission line termination.

Technical Specifications

Information About 531X126SNDAEG1

The General Electric 531X126SNDAEG1 is a specialized Control/Interface Board, commonly referred to as a Snubber Card, designed to enhance the performance and reliability of industrial drive systems. This board is an integral component of the DS-1 Series, known for its robust construction and superior functionality in demanding industrial applications.

The primary function of the 531X126SNDAEG1 Snubber Card is to suppress voltage transients, which can occur during the switching of power electronic devices. By mitigating these transients, the board helps to protect sensitive components within the drive system, ensuring stable and reliable operation. This capability is particularly crucial in high-power applications where electrical noise and spikes can cause significant disruptions and potential damage to the system.

With dimensions of 17 inches by 7 inches, the 531X126SNDAEG1 Snubber Card is designed for easy integration into existing control panels and drive systems. Its compact yet effective design allows it to fit seamlessly into various industrial setups, ensuring that it can be used to upgrade or maintain the performance of current systems without requiring extensive modifications.

The 531X126SNDAEG1 is constructed using high-quality materials and advanced manufacturing techniques, ensuring long-term durability and reliability. Its robust design enables it to withstand the harsh conditions typically found in industrial environments, including exposure to temperature variations, electrical noise, and mechanical vibrations. This durability translates to reduced maintenance requirements and increased system uptime, providing significant cost savings and improved productivity for industrial operators.

As part of the DS-1 Series, the 531X126SNDAEG1 Snubber Card benefits from the series' reputation for cutting-edge technology and high performance. The DS-1 Series is renowned for its advanced features and reliable operation, making it a trusted choice for industrial automation and control solutions. The inclusion of the 531X126SNDAEG1 within this series underscores its importance in delivering high-quality snubber functionality.

In addition to its technical capabilities, the 531X126SNDAEG1 is designed with user-friendly features that simplify installation and maintenance. The board includes standard connectors and interfaces, facilitating quick and straightforward setup. This ease of installation ensures minimal downtime during upgrades or system expansions, allowing for rapid deployment and immediate improvements in system performance.

General Electric's commitment to quality and innovation is evident in the design and manufacture of the 531X126SNDAEG1. Each unit undergoes rigorous testing and quality control procedures to ensure it meets the highest standards of performance and reliability. This meticulous attention to detail guarantees that customers receive a product they can depend on for their critical industrial operations.

In summary, the General Electric 531X126SNDAEG1 Snubber Card is a vital component for enhancing the performance and reliability of industrial drive systems within the DS-1 Series. Its robust construction, advanced snubber functionality, and ease of integration make it an ideal choice for modern industrial applications. By incorporating the 531X126SNDAEG1 into their systems, industries can achieve improved control, reduced maintenance needs, and greater operational reliability, reflecting General Electric's dedication to delivering high-quality, innovative solutions for industrial automation.
