531X133PRUAPG1 | General Electric Process Interface Board

Description

The 531X133PRUAPG1 General Electric Process Interface Board is essential for connecting and interfacing process signals within industrial control systems. It ensures accurate signal processing and reliable data communication. Built for durability and high performance, it supports efficient operation in demanding environments.

Technical Specifications

Information About 531X133PRUAPG1

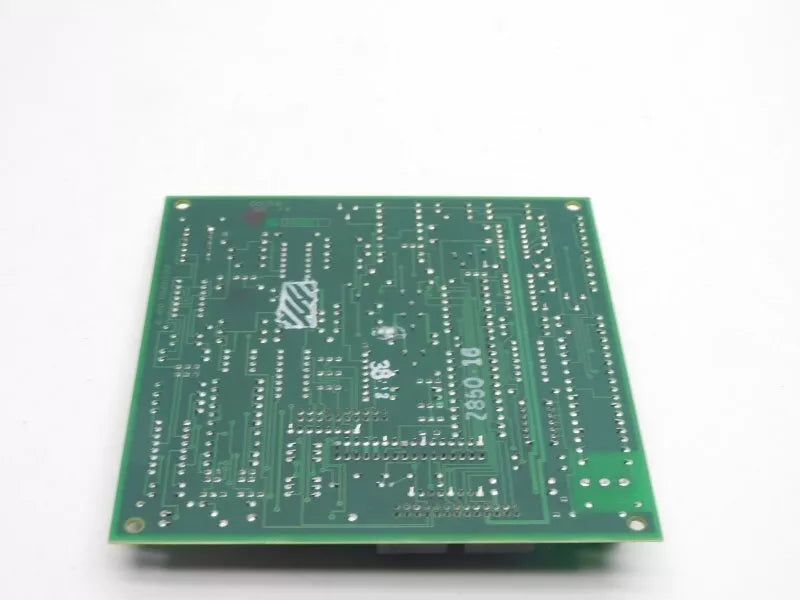

The GE 531X133PRUAPG1 Process Interface Board is a component designed for general-purpose drives manufactured by General Electric. It features factory-drilled mounting holes in each corner and is marked with codes such as C-ESS, 006/03, 002/03, and F31X133PRUAPG1 on its surface.

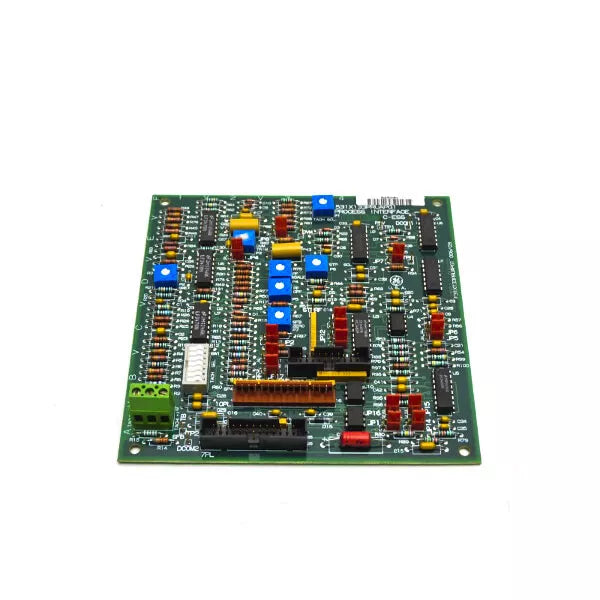

The board includes 100 metal film resistors, seven potentiometers, and five resistor network arrays. The potentiometers are labeled with their reference designators and specific uses, such as TACH SCL, STP SCL, SFB ZERO, and PF OFF. It also incorporates various capacitors, including ceramic, polyester vinyl, and one aluminum electrolytic capacitor.

There are nine integrated circuits on the 531X133PRUAPG1, serving as high-performance analog operational amplifiers, line drivers, line receivers, and XOR gates. These integrated circuits are marked with their part numbers for easy replacement.

Additionally, the board features a 16-pin header connector, two vertical pin cable connectors, and a 3-screw terminal strip labeled TACH + and TACH -. It also includes a switch component with seven individual toggles that can be set to on or off positions.

Manufacturer information

General Electric (GE) is a multinational conglomerate founded in 1892, based in the United States. It operates in various industries, including aviation, healthcare, renewable energy, and power. GE is known for its innovations in technology, manufacturing, and infrastructure solutions.
