531X149SNCADG1 | General Electric Snubber Card

Description

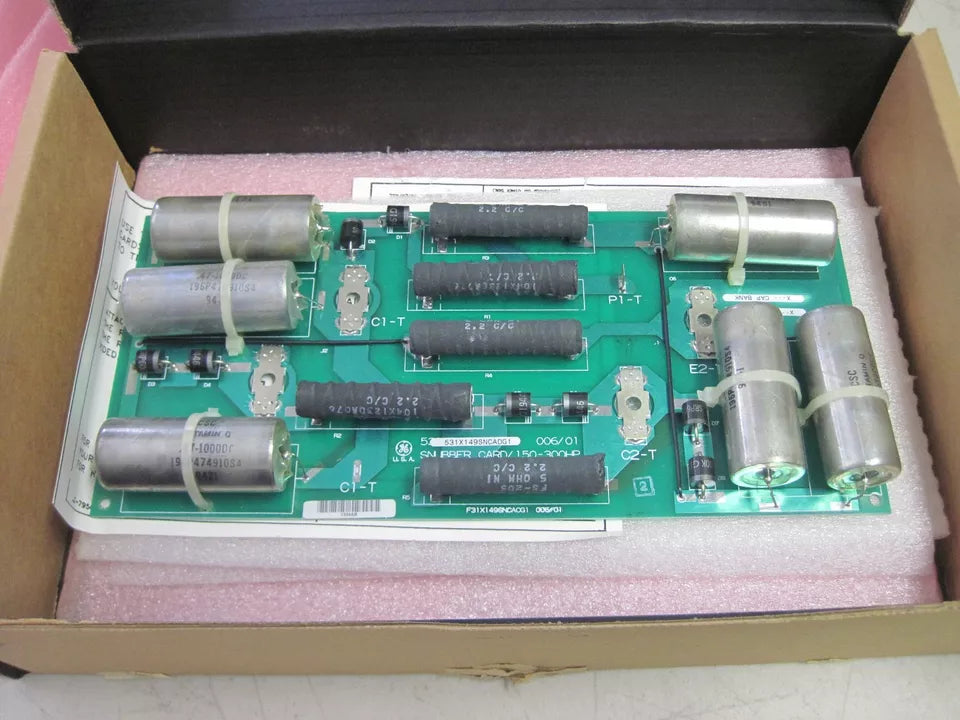

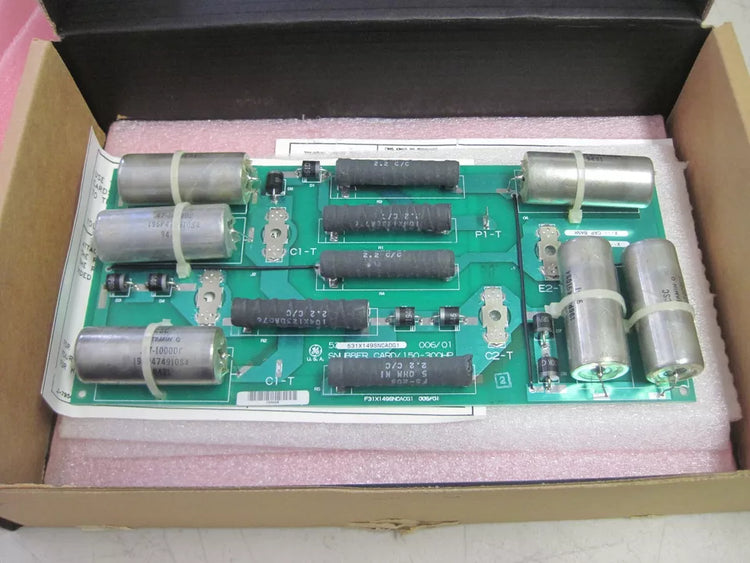

The 531X149SNCADG1 snubber card is a rectangular printed circuit board featuring minimal electrical components distributed across its surface. Positioned at various points on the board are eight diodes, arranged in four pairs. Additionally, there are six silver cylindrical components, identified as Sprague Vitamin Q capacitors, arranged in two groups of three at the board's shorter ends. In the center of the board, five long black resistors are aligned vertically. Furthermore, two long black jumper wires are present: one horizontally on the left side and one vertically on the right side. Lastly, four metal riveting holes are situated at different locations in the middle section of the board.

Technical Specifications

Information About 531X149SNCADG1

The General Electric 531X149SNCADG1 is a specialized Snubber Card designed for the AC300 series, falling under the category of PLCs/Machine Control and specifically classified as a PC Board PLC/Add-On Board. This component is engineered to enhance the performance and reliability of programmable logic controllers (PLCs) by mitigating the detrimental effects of voltage spikes and transients within the control system.

As a snubber card, the 531X149SNCADG1 plays a critical role in protecting the PLC circuitry from high-voltage spikes typically caused by inductive loads. These voltage spikes can cause significant damage to sensitive electronic components, leading to system failures and costly downtimes. By absorbing and dissipating these spikes, the snubber card ensures the longevity and reliability of the PLC system.

The 531X149SNCADG1 is an add-on board, designed to be easily integrated into existing PLC setups. Its installation is straightforward, allowing for seamless enhancement of the control system without extensive modifications. This makes it an ideal solution for upgrading the performance of older PLC systems or adding additional protection to new installations.

This snubber card is part of the AC300 series, which is known for its robust performance in industrial environments. The AC300 series components are engineered to withstand harsh conditions, providing reliable operation in various applications such as manufacturing, automation, and process control. The 531X149SNCADG1 adheres to these high standards, ensuring consistent performance even in demanding situations.

In terms of technical specifications, the 531X149SNCADG1 is designed with high-quality components that ensure efficient operation and long-term durability. The board is equipped with specialized snubber circuits that effectively clamp high-voltage spikes, protecting the main PLC components. This protection extends the operational life of the PLC system and reduces the need for frequent maintenance and replacements.

The snubber card's design includes various passive components such as resistors and capacitors, strategically placed to optimize the snubbing effect. These components are selected for their reliability and performance, ensuring that the snubber card functions effectively under different load conditions. The overall construction of the board is robust, capable of withstanding the mechanical stresses and thermal variations typical in industrial environments.

General Electric's attention to detail and quality is evident in the 531X149SNCADG1. The board is manufactured using advanced techniques and subjected to rigorous testing to ensure it meets the high standards expected of industrial control components. This commitment to quality ensures that each snubber card performs reliably, providing peace of mind to operators and engineers.

In summary, the General Electric 531X149SNCADG1 Snubber Card for the AC300 series is a vital add-on component for PLC systems, designed to protect against voltage spikes and enhance the overall reliability of machine control operations. Its easy integration, robust construction, and high-quality components make it an essential addition to any industrial control system. By ensuring the longevity and reliability of PLC components, the 531X149SNCADG1 helps maintain optimal system performance and reduces the risk of unexpected downtimes, ultimately contributing to more efficient and reliable industrial operations.
