531X167MFRALG1 | General Electric Motor Field Remote

The 531X167MFRALG1 is a Motor Field Remote Circuit Board manufactured by General Electric, categorized under Drives, specifically as a Drive Board. Designed for precise control and monitoring of motor field operations, this circuit board integrates seamlessly into various industrial systems, providing reliable and efficient operation in demanding environments. With a weight of 0.20 lbs, the 531X167MFRALG1 is a lightweight yet robust component engineered for durability and performance.

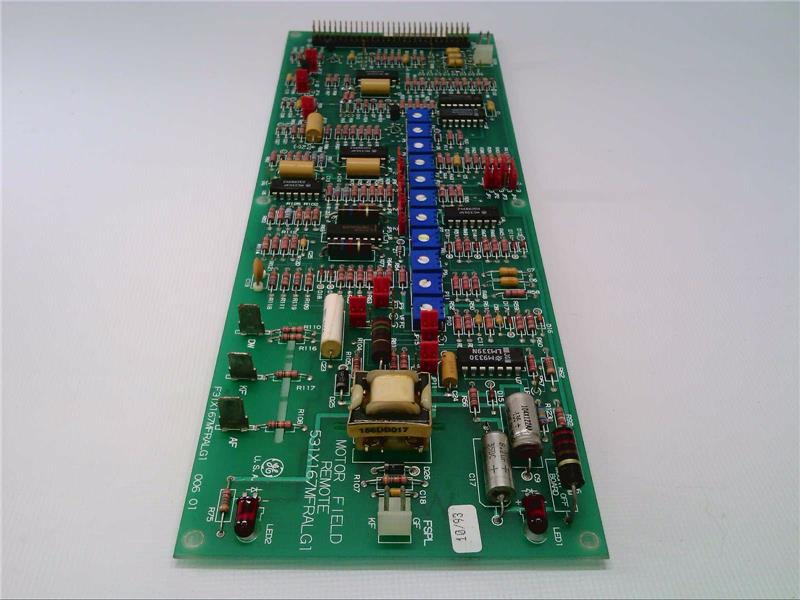

Physically, the 531X167MFRALG1 is characterized by its extended length, accommodating the complex arrangement of components essential for its functionality. This circuit board hosts hundreds of diverse components, carefully selected to ensure optimal performance. The inclusion of different types of resistors is a notable feature. The first type is axial-lead resistors, distinguished by their striped markings, which are designed to dissipate energy effectively across the circuit. The second type encompasses variable resistors, also known as rheostats or potentiometers, which are utilized to regulate smaller energy flows, typically not exceeding one watt. These variable resistors enable precise adjustment of electrical resistance, facilitating fine control over the circuit's behavior.

Capacitors, referred to as condensers in some documentation, are another critical component of the 531X167MFRALG1. These capacitors vary in size and are strategically positioned to create electrical fields, allowing them to store and release energy as required by the circuit's operational needs. This capability is vital for maintaining voltage stability and ensuring the circuit's reliable performance.

The board features eight Integrated Circuits (ICs), each housing the necessary programming and instructions to govern the board's operations. These ICs are integral to the circuit board's ability to perform its designated functions, enabling complex processing and control tasks to be executed efficiently.

Jumper ports are incorporated throughout the 531X167MFRALG1, equipped with small caps that function as ON/OFF switches. These jumper ports provide engineers with the flexibility to configure and control specific sections of the circuit, tailoring its operation to meet particular requirements. The ability to modify circuit pathways enhances the board's adaptability and makes it suitable for a wide range of applications.

The board is also equipped with two small red light-emitting diodes (LEDs). These LEDs serve as visual indicators, providing immediate feedback on the circuit's status and aiding in diagnostics and troubleshooting. Their red color ensures visibility in various lighting conditions, contributing to the board's user-friendliness and operational safety.

Three thin metal prongs are included on the 531X167MFRALG1, serving as connection points for interfacing with other components or systems. These prongs are designed to provide reliable and secure connections, ensuring stable electrical pathways and minimizing the risk of disconnections or signal loss.

Additionally, the board features two small white male ports and one large black male port, facilitating connections to other devices or circuit boards. These ports are designed to support standard interfacing requirements, ensuring compatibility with a wide range of equipment.

The inclusion of a transformer within the 531X167MFRALG1 underscores its capability to handle variations in electrical potential, contributing to its overall versatility. Transformers are essential for adjusting voltage levels, and their presence in this circuit board allows it to manage different power requirements effectively.

Finally, the 531X167MFRALG1 is designed with four mounting holes, one in each corner, enabling secure installation within equipment enclosures or mounting racks. This feature ensures the board remains stable during operation, reducing the risk of vibration or movement that could compromise its functionality.

In summary, the 531X167MFRALG1 Motor Field Remote Circuit Board is a highly versatile and reliable component, engineered to meet the demanding requirements of industrial motor control applications. Its comprehensive array of components, including resistors, capacitors, integrated circuits, jumper ports, LEDs, and connectors, work in unison to provide precise control, monitoring, and adaptability, making it a valuable asset in various industrial settings.
