Product Description P/N: 531X170TBSACG1
Description
The 531X170TBSACG1 is a TB Option Card manufactured by General Electric. This PCB is not designed to be a component for a particular drive system; rather it is used in various general purpose drive systems created by GE, including the DC-300 drive.
Technical Specifications
Brand | General Electric |
Category | Panel Accessories |
Part Number | 531X170TBSACG1 |
Subcategory | Terminal Blk/Strip Wiring Dev |
Product Type | TB Option Card |
Information About 531X170TBSACG1

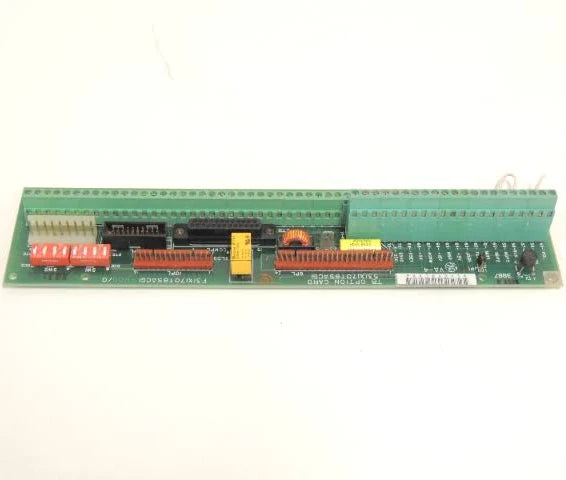

The 531X170TBSACG1 is a narrow, long rectangular board. It measures 11 by 2.75 inches and is marked with codes like F31X170TBSACG1, 004/0, and FR00/0. The board has factory-made holes to allow for mounting options. This includes a mounting hole in each corner, one in the center of the board, and two on a long board edge. The board has two terminal strips, including one that has fifty-four screw connections and one with twenty-one screw connections. These connections are all numbered and labeled on the board surface.
The 531X170TBSACG1 is populated by several other components. This includes three header connectors (one 9-pin, one 16-pin, and one 24-pin,) one male pin cable connector and one female cable connector. The board has a single stab-on connector, a polyester-vinyl capacitor, a single jumper switch, and one silicon bridge rectifier diode. The board has an inductor coil, a relay, and two switch components. The relay is a DS2E-M-DC24V 2 Form C relay with a nominal operating power of 400 mW. Each of the switch components has four toggle switches that can be set to “DCE” or “DTE.”
Manufacturer information
General Electric (GE) is a multinational conglomerate founded in 1892, based in the United States. It operates in various industries, including aviation, healthcare, renewable energy, and power. GE is known for its innovations in technology, manufacturing, and infrastructure solutions.
