531X170TBSAGG1 | Ge Fanuc Serial Communication Termination Module
- Regular price
- $872.00
- Sale price
- $872.00
- Regular price
-
Couldn't load pickup availability
Do you need more quantity?
Product Description P/N: 531X170TBSAGG1
Description

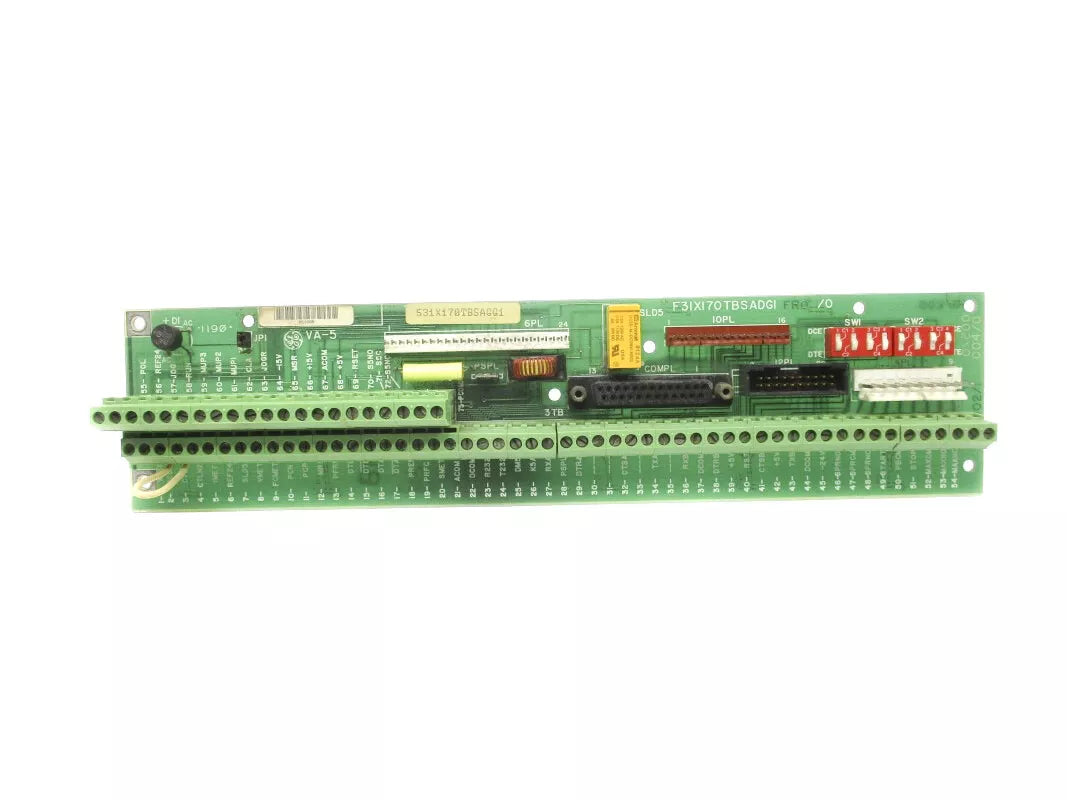

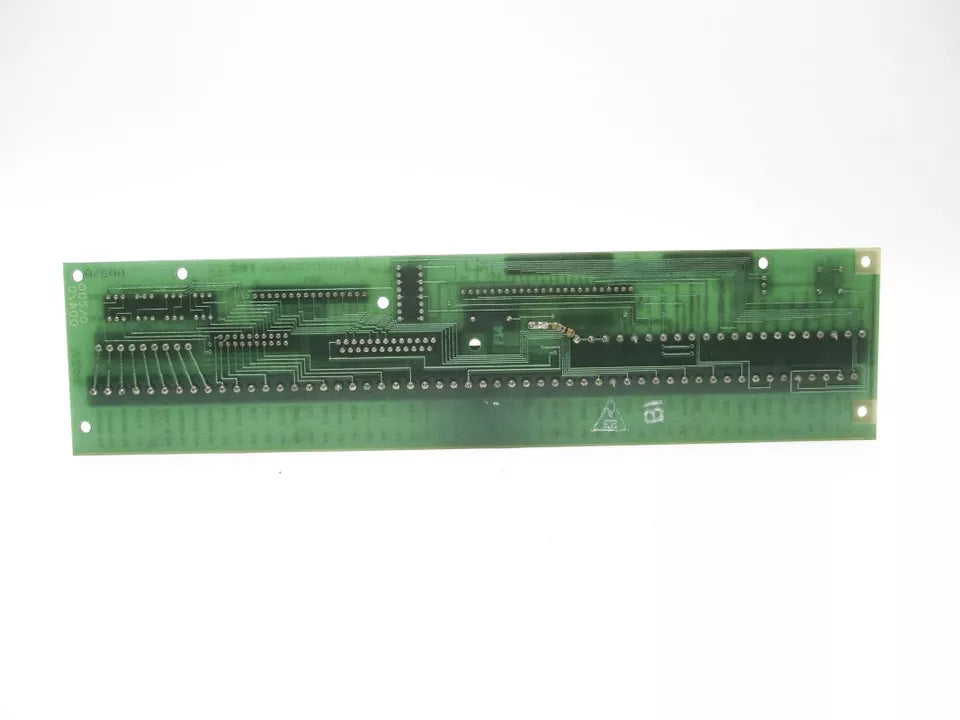

The 531X170TBSAGG1 is a TB Option Card manufactured by GE for integration into various general-purpose drive systems, including the DC-300 drive. Compatibility with the 531x series of boards should be verified using the system's manual or user guide.
This module features two central terminal strips: one with 21 screw connections and another with 54 screw connections, each individually numbered and labeled. The larger terminal strip includes connections labeled Xstp, Pcom, Ctln1, Ctln2, Imet, Ref24, Sld5, Vmet, Fcmet, Pcn, Pcp, Mri, Pfrf, and Dtb. The second terminal strip includes connections labeled Ref24, Jog, Run, Mup3, Mup2, Mup1, CLA, and Jogr.
Technical Specifications
|
Part No |
531X170TBSAGG1 |
|
Manufacturer |
General Electric |
|
Product Type |
Serial Communication Termination Module |
|
Series |
Mark V LM |
|
Operating Temperature |
-30 to 65°C |
|
Power Supply Voltage |
24 V dc |
|
Board Size |
14.3 cm high x 23.1 cm |
|
Weight |
0.45 kg |
Information About 531X170TBSAGG1
The 531X170TBSAGG1 is a TB Option Card developed by GE specifically designed for integration into various general-purpose drive systems, notably including the DC-300 drive. Compatibility with the 531x series of boards should be confirmed through reference to the system’s manual or user guide.
This module features two central terminal strips, each meticulously populated with screw connections. The first terminal strip houses 21 connections, while the second accommodates 54 connections. Each connection is uniquely numbered and labeled, with designations such as Xstp, Pcom, Ctln1, Ctln2, Imet, Ref24, Sld5, Vmet, Fcmet, Pcn, Pcp, Mri, Pfrf on the larger strip, and Ref24, Jog, Run, Mup3, Mup2, Mup1, CLA, Jogr on the second strip.
