531X185CPTAKG1 | General Electric VA-5 Pulse Transformer Board
- Regular price
- $772.00
- Sale price
- $772.00
- Regular price
-
Couldn't load pickup availability
Product Description P/N: 531X185CPTAKG1
DescriptionΒ
The 531X185CPTAKG1 is a VA-5 Pulse Transformer Board. It is used for pulse signal transformation within specified electronic systems. The board is designed to convert and isolate pulse signals to ensure accurate signal transmission and integrity.Β
Β
Β
Technical SpecificationsΒ
|
ConditionΒ |
New / Never Used SurplusΒ |
|
Part Number |
531X185CPTAKG1Β |
|
CategoryΒ |
DrivesΒ |
|
SubcategoryΒ |
Drive BoardΒ |
|
WeightΒ |
1.00 lbsΒ |
|
DescriptionΒ |
Pulse Board, PC AC500, CONV, XFMRΒ |
Β
Β
Information About 531X185CPTAKG1Β

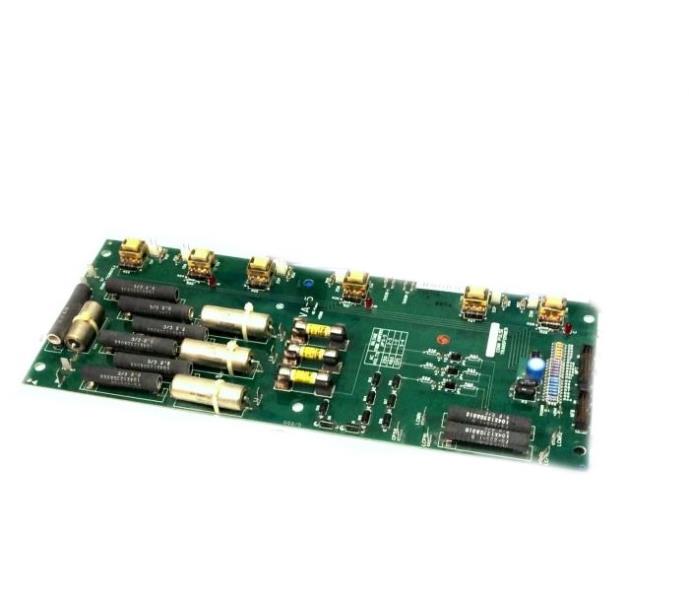

The 531X185CPTAKG1 is a VA-5 Conv. Pulse Transformer circuit board manufactured by General Electric. This board is substantial in size and features numerous large components. It includes nine large black resistors, each marked with the following codes: HE1-8808, FS-20S-1 N, 104X123DA010, and 2.2 C/C. These codes indicate the specific characteristics and ratings of the resistors. Additionally, the board contains two smaller black resistors labeled CG5, 33Ξ© 5%, 3W, which provide further resistive functionality.Β
The circuit board is equipped with thirty-eight axial-lead resistors. These resistors are identified by their color-coded strips, which allow engineers to determine their resistance values through a color-coding system and associated equations.Β
The 531X185CPTAKG1 features fifteen black diodes. Each diode has a small grey line at one end, which indicates the direction of current flow through the component. The board also includes three sets of Jumper Ports. Each Jumper Port has two positions and can be adjusted using sleeve caps to alter the board's configuration.Β
Β Β
Manufacturer informationΒ
General Electric (GE) is a multinational conglomerate founded in 1892, based in the United States. It operates in various industries, including aviation, healthcare, renewable energy, and power. GE is known for its innovations in technology, manufacturing, and infrastructure solutions.
