531X191RTBAHG1 | General Electric Relay Terminal Board
- Regular price
- $2,322.00
- Sale price
- $2,322.00
- Regular price
-
Couldn't load pickup availability
Do you need help?
Product Description P/N: 531X191RTBAHG1
Description

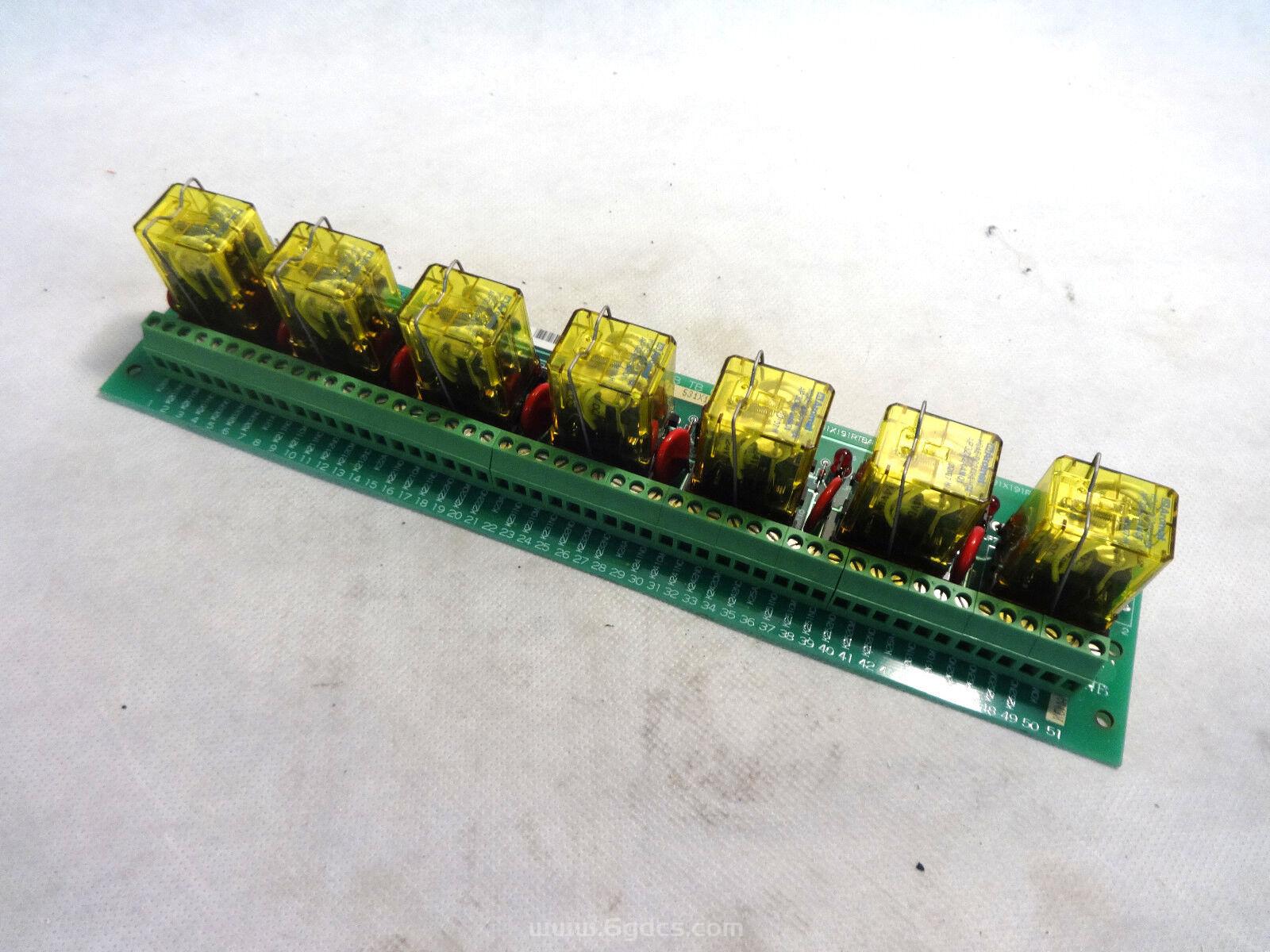

The 531X191RTBAHG1 is a relay terminal board developed by General Electric for the 531X series of replacement boards. This board is designed to be installed in drives and exciters from the GE brand. It provides seven additional relays for controlling external circuits and offers access to contacts and coils through its terminal board.
Technical Specifications
|
Part Number |
531X191RTBAHG1 |
|
Manufacturer |
General Electric |
|
Category |
Relay Terminal Board |
|
Series |
531X |
|
Application |
Drives and exciters |
|
Relays Provided |
7 additional relays |
|
Coil Voltage Rating |
115 VAC |
|
Coil Frequency |
50/60 Hz |
|
Holding Current |
9 mA |
|
Contact Voltage Rating |
0.7 amps DC or 105 VDC |
|
Indicator LEDs |
Yes, for each relay |
Information About 531X191RTBAHG1
The 531X191RTBAHG1 is a relay terminal board developed by General Electric (GE) for use with the 531X series of replacement boards. This board is compatible with various GE drives and exciters, and it provides seven additional relays that are used to control external circuits. The board also features access to contacts and coils via its terminal board.
The relay terminal board includes the relays and associated circuitry necessary for its operation. Each relay on the 531X191RTBAHG1 is equipped with a coil that has a voltage rating of 115 VAC and operates at a frequency of 50/60 Hz. The holding current for each relay coil is 9 mA. The contacts on the board are rated for 0.7 amps DC or 105 VDC. The device includes indicator LEDs for each relay; these LEDs illuminate when the relay coils are energized, providing a visual indication of relay status. Additionally, the board supports tabulation of relay contacts and RTB (Relay Terminal Board) points.
Manufacturer information
General Electric (GE) is a multinational conglomerate founded in 1892, based in the United States. It operates in various industries, including aviation, healthcare, renewable energy, and power. GE is known for its innovations in technology, manufacturing, and infrastructure solutions.
