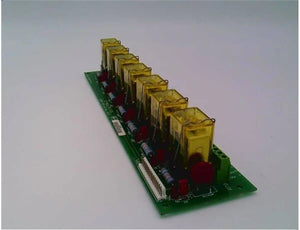

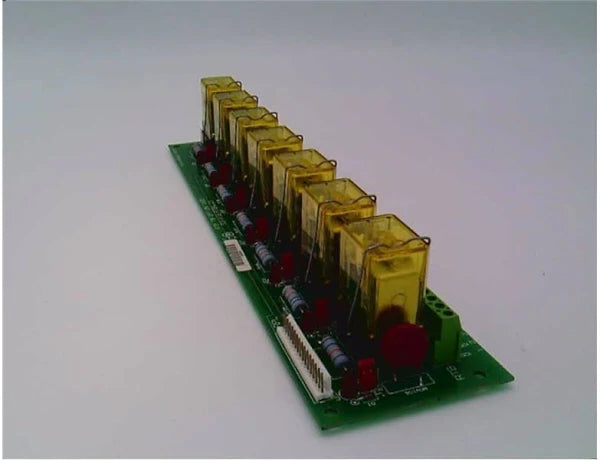

531X191RTBALG3 | General Electric Relay Terminal Board 531X Series
- Regular price
- $895.00
- Sale price
- $895.00
- Regular price
-
Couldn't load pickup availability
Do you need help?
Product Description P/N: 531X191RTBALG3
Description
The General Electric 531X191RTBALG3 is a relay terminal board designed to provide reliable relay interfacing and signal routing within GE industrial drive systems. As part of the 531X Series, it offers dependable connectivity for relay coils and contacts used in control and monitoring applications.
Technical Specifications
| Condition | New/Never Used Surplus |
| Brand | General Electric |
| Category | Drives |
| Part Number | 531X191RTBALG3 |
| Subcategory | Control/Interface Board |
| Type | PC board |
| Series | 531X Series |
| Relay Positions | 7 |
| Coil Rating | 115 VAC |
| Contact Rating | 125 VAC or 28 VDC |
| Contact Current Rating | 2.4 A |
| Inrush Current | 25 mA |
| Holding Current | 14 mA |
| Application | Relay interface and control routing |
| System Compatibility | GE drives and exciters |
Information About 531X191RTBALG3
The 531X191RTBALG3 is a G3-revision relay terminal board engineered for GE drives and exciters, supporting relay communication and external circuit integration. It provides seven relay positions and direct access to onboard coils and contacts, enabling flexible system control functions. With defined voltage and current ratings for both coils and contacts, the board ensures stable relay operation in demanding industrial environments. Designed for installation within 531X drive architectures, the 531X191RTBALG3 offers a dependable interface for managing relay-based control processes.
Key Features
- Seven Relay Positions: supports multiple relay connections for expanded control capability.
- Coil and Contact Access: provides user access to relay coils and contacts for wiring and system configuration.
- G3 Revision Design: offers specific electrical ratings unique to the G3 variant of the board.
- Defined Electrical Ratings: 115 VAC coil rating; 125 VAC / 28 VDC contact rating; 2.4 A contact current capacity.
- Stable Relay Operation: includes inrush currents of 25 mA and holding currents of 14 mA for coil reliability.
- Broad Drive Compatibility: installs into GE drives and exciters within the 531X replacement board series.
- Industrial PCB Construction: built to withstand electrical and mechanical demands of industrial control systems.
- Reliable Signal Routing: enables precise control of external circuits through structured relay interfacing.
The 531X191RTBALG3 delivers the reliability and precision required for stable relay interfacing in GE 531X industrial drive systems.
