531X210DMCAMM1 | General Electric Interface Processor Board
- Regular price
- $2,209.00
- Sale price
- $2,209.00
- Regular price
-
Couldn't load pickup availability
Do you need more quantity?
Product Description P/N: 531X210DMCAMM1
Description
The 531X210DMCAMM1 is an interface processor board designed for integration into control systems. It features a range of connectors and components that facilitate communication between various system modules. The board is used to manage data processing and interface tasks within the system, ensuring effective signal handling and processing.
Technical Specifications
|
Condition |
New / Never Used Surplus |
|
Part Number |
531X210DMCAMM1 |
|
Type |
PC Board Assembly |
|
Ports |
1 female port, 3 black male ports, 1 small white male port |
|
Oscillators |
2 crystal oscillators for precise frequency generation |
|
LEDs |
2 raised red LEDs |
|
Jumpers |
Over 20 jumpers with multiple positions for circuit control |
|
Capacitors |
Various types including tiny beads, large cylindrical, thin bar, and tall cylinders |
|
Fuses |
3 fuses placed around large cylindrical capacitors |
|
Button |
1 small button on the circuit board |
|
Diodes |
Multiple diodes for controlling energy flow |
|
Resistors |
Multiple resistors for energy dissipation |
|
Integrated Circuits |
47 integrated circuits with space for 2 additional |
Information About 531X210DMCAMM1

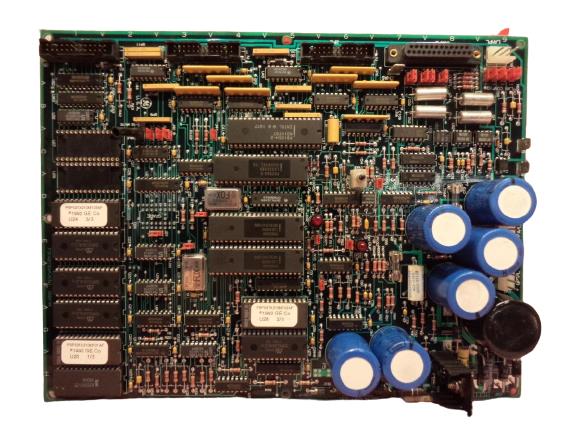

The 531X210DMCAMM1 is a printed circuit board (PCB) assembly designed for use in industrial applications. The board features one female port, three black male ports, and one small white male port for connectivity. It incorporates two crystal oscillators that generate precise frequencies necessary for the board's operation. Additionally, the board is equipped with two raised red light-emitting diodes (LEDs) which serve as indicators for operational status.
The 531X210DMCAMM1 includes over twenty jumpers. Each jumper has at least two positions, enabling it to function as a switch that controls circuit connections and directs the flow of electrical energy. The board utilizes various types and styles of capacitors, including tiny bead capacitors, large cylindrical capacitors, thin bar capacitors, and tall cylindrical capacitors. These capacitors create individual electrical fields used to store and manage electrical current for the board's operation.
To ensure protection and reliability, the 531X210DMCAMM1 is equipped with three fuses, which are strategically placed around the larger cylindrical capacitors. The board also features one small button intended for user interaction or system reset functions.
Manufacturer information
General Electric (GE) is a multinational conglomerate founded in 1892, based in the United States. It operates in various industries, including aviation, healthcare, renewable energy, and power. GE is known for its innovations in technology, manufacturing, and infrastructure solutions.
IQElectro 2 Year Warranty
IQElectro offers a 2-Year Warranty on all our products. This complimentary two-year warranty ensures that every purchase from IQElectro is a secure investment in the future of your company.Warranty Terms
IQElectro is not an authorized distributor.
