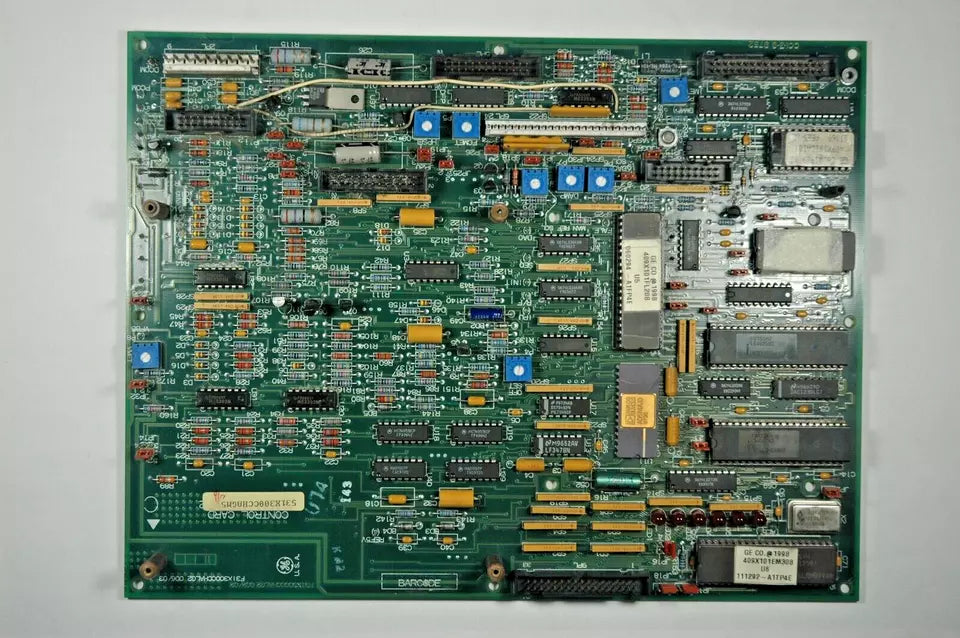

531X300CCHAGM5 | GE FANUC Control Card
- Regular price
- $2,887.00
- Sale price
- $2,887.00
- Regular price
-
Couldn't load pickup availability
Product Description P/N: 531X300CCHAGM5
DescriptionΒ
The 531X300CCHAGM5 serves as a Control Card designed for use in General Electric's general-purpose drives, notably compatible with the DC-300 system. These drives are versatile and robust, tailored for a wide range of industrial applications. They are available in various sizes and ratings, supporting both AC and DC power inputs depending on specific operational requirements. Compatibility details can be found in the system's user guide or manual, specifically addressing integration with the 531X series of cards.Β
Β
Β
Technical Specifications
|
Part Number |
531X300CCHAGM5Β |
|
CategoryΒ |
DrivesΒ |
|
SubcategoryΒ |
Drive BoardΒ |
|
WeightΒ |
1.00 lbsΒ |
|
ManufacturerΒ |
General ElectricΒ |
|
Compatible SystemsΒ |
DC-300 systemΒ |
|
ApplicationsΒ |
Various industrial applicationsΒ |
|
Board StandoffsΒ |
8 installed, for adding 2 auxiliary boardsΒ |
|
Auxiliary Board ConnectionΒ |
Screw connections to standoffs, vertical pin (male) cable connectorsΒ |
|
ConnectorsΒ |
6 vertical pin connectors, 2 header connectorsΒ |
|
ComponentsΒ |
8 potentiometers, 25 resistor network arrays, 1 press button switchΒ |
|
Voltage RegulatorΒ |
Lower right corner of the board, with surface wiringΒ |
|
Additional ComponentsΒ |
30 jumper switches, 11 transistors, capacitors, resistors, diodesΒ |
|
Test PointsΒ |
Multiple TP test pointsΒ |
|
LED IndicatorsΒ |
6 red LEDsΒ |
Β
Β
Information About 531X300CCHAGM5
The 531X300CCHAGM5 serves as a Control Card designed by General Electric for general purpose drives, notably compatible with the DC-300 system. These drives are versatile solutions tailored for diverse industrial applications, featuring varying sizes and ratings, such as heavy duty or light duty, and supporting both AC and DC power inputs. Compatibility specifics can be found in the systemβs user guide or manual, particularly regarding the 531X series cards.Β
Structurally, the 531X300CCHAGM5 incorporates eight pre-installed board standoffs facilitating the attachment of up to two auxiliary boards via screw connections. Communication between these auxiliaries and the motherboard is facilitated through six vertical pin (male) cable connectors, supplemented by two header connectors for additional functionality.Β
Β
Β
Manufacturer information
GE FANUC, now part of Emerson Automation Solutions, was a leading provider of industrial automation and control systems. Known for innovative solutions, GE FANUC played a key role in advancing manufacturing, offering a range of products including PLCs, CNCs, and HMI solutions.
