531X307LTBAFG1 | General Electric LAN I/O Terminal Board

Description

The 531X307LTBAFG1 is a LAN I/O Terminal Board used in industrial control systems. It facilitates the connection and management of LAN inputs and outputs, enabling communication between networked devices.

Technical Specifications

Information About 531X307LTBAFG1

The 531X307LTBAFG1 is a LAN Terminal Board designed and manufactured by General Electric, a leading provider of industrial control solutions. This board is a crucial component within the EX2000 series, which is widely recognized for its reliability and efficiency in managing complex industrial processes. The 531X307LTBAFG1 is specifically engineered to facilitate communication between various control devices, such as drives and exciters, and external systems, including interlocks, pushbuttons, contactors, and indicator lights. Its primary function is to ensure seamless data transmission and signal routing, thereby enhancing the overall performance and reliability of the control system.

The 531X307LTBAFG1 LAN Terminal Board is typically installed within drive or exciter cabinets, where it serves as a central hub for connecting internal and external components. The board's design is optimized for efficient signal management, with multiple input and output interfaces that enable it to handle a wide range of signals and control commands. This functionality is critical in industrial environments where precise and reliable control of machinery and processes is essential for maintaining operational efficiency and safety.

One of the key features of the 531X307LTBAFG1 is its flexibility in accommodating different types of input signals. The board is available in two versions: the G1 LTB, which is equipped with eight 24VDC input plugs, and the G2 LTB, which does not have these inputs and instead uses DC input signals from connector terminals. This versatility allows the 531X307LTBAFG1 to be tailored to specific application requirements, making it a versatile solution for a variety of industrial control systems.

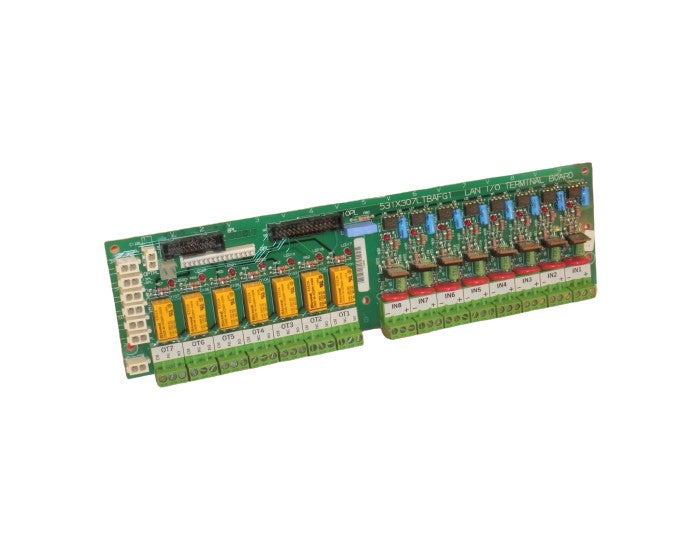

The physical design of the 531X307LTBAFG1 is both robust and functional. The board is designed with three terminal strips located along one of its long edges, providing ample space for secure and organized connections. On the opposite edge, the board features two male vertical pin connectors, along with the aforementioned input plugs. This arrangement ensures that the board can accommodate a variety of connections while maintaining a compact and organized layout, which is particularly important in environments where space is limited.

In addition to its connectivity features, the 531X307LTBAFG1 is equipped with a series of 15 LED indicators that span the length of the board. These LEDs provide real-time visual feedback on the board's operational status, making it easier for technicians and operators to monitor the system and quickly identify any issues. This feature is especially valuable in complex industrial settings, where immediate feedback on system performance can help prevent downtime and ensure smooth operation.

The board's internal components are selected for their durability and performance. It includes transistors, seven relays, multiple metal oxide varistors, resistors, diodes, and capacitors, all of which contribute to the board's ability to manage and route signals efficiently. The use of high-quality components ensures that the 531X307LTBAFG1 can withstand the demands of continuous operation in industrial environments, providing long-term reliability and reducing the need for frequent maintenance or replacement.

General Electric's attention to detail is evident in the board's construction. The 531X307LTBAFG1 is clearly marked with the GE logo, the board ID number, and a barcode located near the center of the board. Additionally, each component is labeled with reference designations, making it easier for technicians to identify and service the board as needed. These features reflect GE's commitment to quality and customer support, ensuring that the 531X307LTBAFG1 meets the high standards expected in industrial applications.

In summary, the 531X307LTBAFG1 LAN Terminal Board is an integral part of the EX2000 series, designed to provide reliable and efficient communication between control devices and external systems. Its flexible design, robust construction, and comprehensive connectivity options make it a versatile and dependable solution for a wide range of industrial applications. With its advanced features and high-quality components, the 531X307LTBAFG1 is well-suited to meet the demands of modern industrial environments, ensuring reliable operation and contributing to the overall efficiency and performance of the control system.
