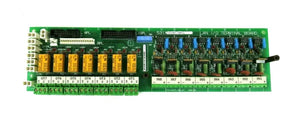

531X307LTBAKG1 | General Electric LAN Terminal Board 531X Series
- Regular price
- $3,350.00
- Sale price
- $3,350.00
- Regular price
-
Do you need more quantity?
Product Description P/N: 531X307LTBAKG1
Description
The General Electric 531X307LTBAKG1 LAN terminal board is specifically designed for the 531X series, serving as a replacement board compatible with various GE brand drives and exciters. Acting as an interface system, it facilitates communication between the controlling drive and external devices such as contactors, interlocks, and indicator lights.
Upon installation, the card provides the drive with eight configurable control input plugs, capable of accepting AC and DC voltages ranging from 2 to 240 V. These voltages are converted into 24VDC logic signals and transmitted to the control board, LAN terminal, and NTB terminal as needed. Additionally, the board features seven outputs, all equipped with low voltage and low current form C relay contact connectors.
Technical Specifications
Part Number |
531X307LTBAKG1 |
Series |
531X Series |
Manufacturer |
General Electric |
Functional Description |
LAN Terminal Board |
Interface |
LAN (Local Area Network) |
Compatible Series |
531X Series |
Application |
Replacement board for GE brand drives and exciters |
Input Plugs |
Eight configurable control input plugs |
Input Voltage Range |
AC and DC voltages rated between 2 and 240 V |
Output Plugs |
Seven outputs with low voltage and low current form C relay contact connectors |
Installation Parameters |
Guidelines provided to prevent accidental damages |
Personnel Qualification |
Only qualified personnel trained in installing drive boards should handle the card |
Documentation |
Detailed wiring and installation instructions available in the device’s datasheet and manual |
Technical Support |
General Electric, the original manufacturer of the board, provides technical support services |
Information About 531X307LTBAKG1
The General Electric 531X307LTBAKG1 LAN terminal board is designed for the 531X series, serving as a replacement board compatible with various GE brand drives and exciters. Functioning as an interface system, it facilitates communication between the controlling drive and external devices such as contactors, interlocks, and indicator lights.
Upon installation, the 531X307LTBAKG1 board enables LAN signal transmission to and from the drive. It offers eight configurable control input plugs, capable of accepting AC and DC voltages ranging from 2 to 240 V. These voltages are converted into 24VDC logic signals and transmitted to the control board. The input plugs facilitate signal distribution throughout the LAN terminal, drive control board, and NTB terminal. Additionally, the board features seven outputs equipped with low voltage and low current form C relay contact connectors.
Manufacturer information
General Electric (GE) is a multinational conglomerate founded in 1892, based in the United States. It operates in various industries, including aviation, healthcare, renewable energy, and power. GE is known for its innovations in technology, manufacturing, and infrastructure solutions.
