531X309SPCAFG1 | General Electric Signal Processor Card 531X Series
- Regular price
- $1,920.00
- Sale price
- $1,920.00
- Regular price
-
Couldn't load pickup availability
Do you need more quantity?
Product Description P/N: 531X309SPCAFG1
Description

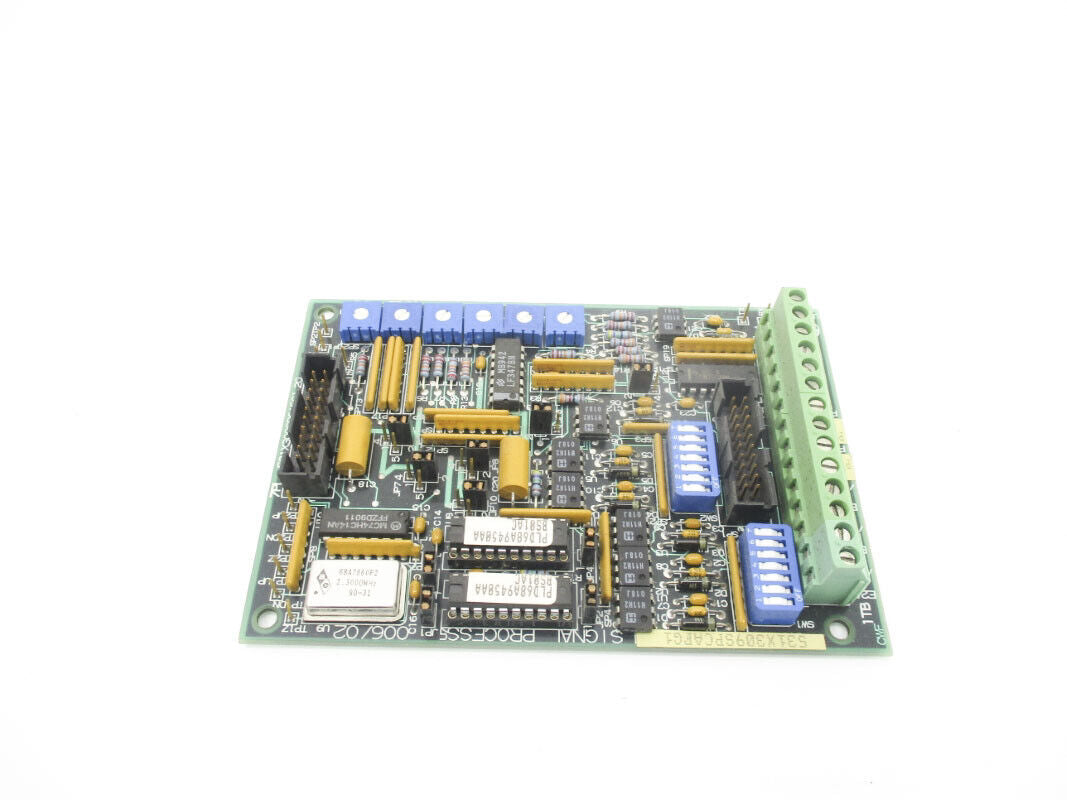

The General Electric 531X309SPCAFG1 board is a signal processor card. As a member of the 531X series, this processor card can be installed in the cabinets of a number of GE brand drives or exciters. The board operates by processing the I/O sent to the LAN control board, as well as that sent to the drive control board.
Technical Specifications
| Brand | General Electric |
| Category | Drives |
| Part Number | 531X309SPCAFG1 |
| Subcategory | Drive Board |
| Series | 531X |
| Product Type | Signal Processor Card |
Information About 531X309SPCAFG1
A number of functions are built into this signal processor board. Interfacing capabilities between the card and encoders or tachometers are provided with this board. These communications can provide speed feedback to the drive’s control board. Three current reference signals and a single voltage level signal are converted by this card into voltage reference signals. 531X309SPCAFG1 then relays these signals to the control board. RS-422 serial signals are processed by this card and are sent to the drive’s onboard motor control processor. A number of switches, jumpers, and potentiometers allow users to alter signal filtering, gains, and hardware configuration.
Any installation parameters provided by the board’s manufacturer should be met. Following these provided guidelines will prevent any unintentional damages to the board and the drive. Only trained personnel qualified to install drive boards should be allowed to handle the 531X309SPCAFG1. Wiring directions for this signal processor card can be found in the board’s datasheet and manual.
Manufacturer information
General Electric (GE) is a multinational conglomerate founded in 1892, based in the United States. It operates in various industries, including aviation, healthcare, renewable energy, and power. GE is known for its innovations in technology, manufacturing, and infrastructure solutions.
