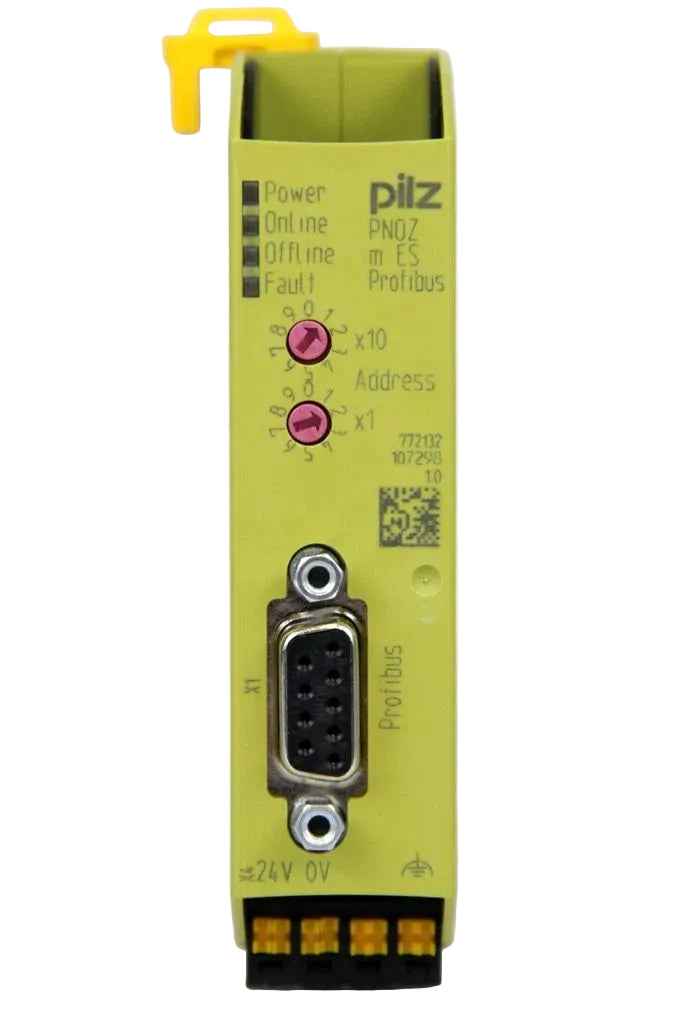

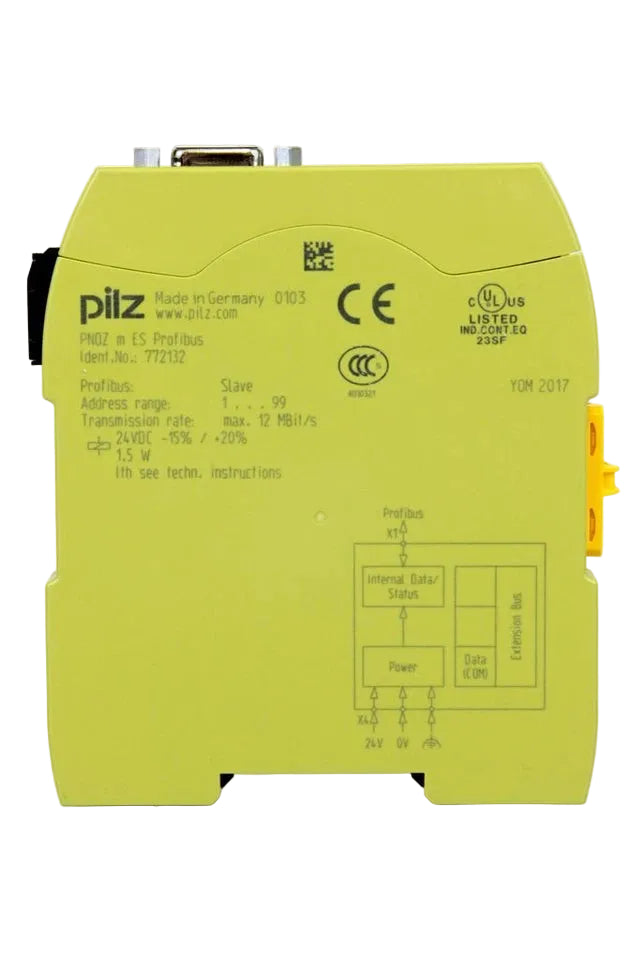

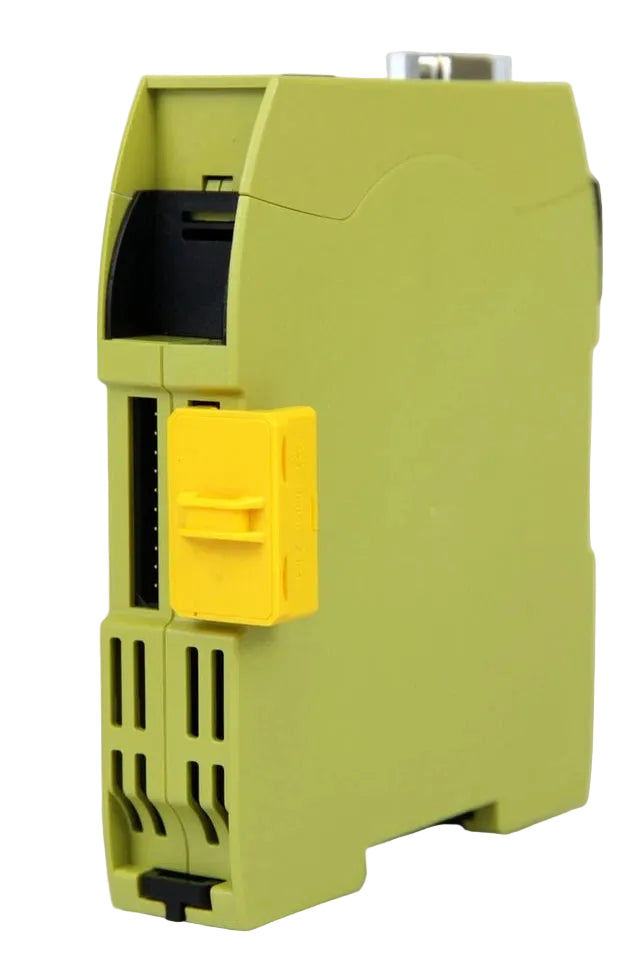

772132 | Pilz PNOZ M ES Profibus Communication Module 24VDC
- Regular price
- $364.00
- Sale price
- $364.00
- Regular price
-
Couldn't load pickup availability
Product Description P/N: 772132
Description
The Pilz 772132 PNOZ m ES Profibus is a communication module designed to integrate PNOZmulti safety controllers into PROFIBUS-DP networks. Operating on 24 VDC, it enables reliable data exchange as a DPV0 slave within industrial automation and safety systems.
Technical Specifications
| Condition | New/Never Used Surplus |
| Brand | Pilz |
| Category | PLC Communication Modules |
| Part Number | 772132 |
| Subcategory | Fieldbus Communication Modules |
| Product Series | PNOZmulti |
| Module Type | PROFIBUS communication module |
| Supply Voltage (U1) | 24 VDC |
| Power Consumption | 0.9 W |
| Potential Isolation (U1) | Yes |
| Fieldbus Interface | PROFIBUS-DP |
| Fieldbus Device Type | Slave DPV0 |
| Permitted Station Address | 0…99 |
| Transmission Rate | 9.6 kbit/s…12 Mbit/s |
| Fieldbus Connection | 9-pin D-Sub female |
| Galvanic Isolation (Fieldbus) | Yes |
| Test Voltage | 500 VAC |
| Electrical Connection | Screw / spring-loaded terminals |
| Conductor Size | 24…12 AWG |
| Dimensions (W×H×D) | 22.5 × 101.4 × 115 mm |
| Weight | 0.21 lb (95 g) |
Information About 772132
The 772132 is part of the Pilz PNOZmulti communication module range developed to extend safety controllers with industrial fieldbus connectivity. This module enables PROFIBUS-DP integration, allowing safety-related data and status information to be exchanged with higher-level control systems. It features galvanic isolation for both the power supply and fieldbus interface, enhancing system robustness and noise immunity. Its slim 22.5 mm housing supports space-efficient installation in control cabinets.
Key Features
- PROFIBUS-DP Interface: Enables seamless communication between PNOZmulti safety controllers and PROFIBUS-based automation systems.
- DPV0 Slave Operation: Supports standard cyclic data exchange for reliable and deterministic fieldbus communication.
- Wide Transmission Speed Range: Operates from 9.6 kbit/s up to 12 Mbit/s to match various network requirements.
- Galvanic Isolation: Electrical isolation of both supply and fieldbus interface improves reliability and protects against interference.
- Compact Module Design: Narrow 22.5 mm width allows efficient use of space in densely populated control cabinets.
- 24 VDC Low-Power Operation: Consumes only 0.9 W, supporting energy-efficient system designs.
- Industrial-Grade Connectivity: Uses a standard 9-pin D-Sub connector for robust PROFIBUS network connections.
The 772132 delivers the reliability and precision required for integrating PNOZmulti safety controllers into PROFIBUS-based industrial automation architectures.
