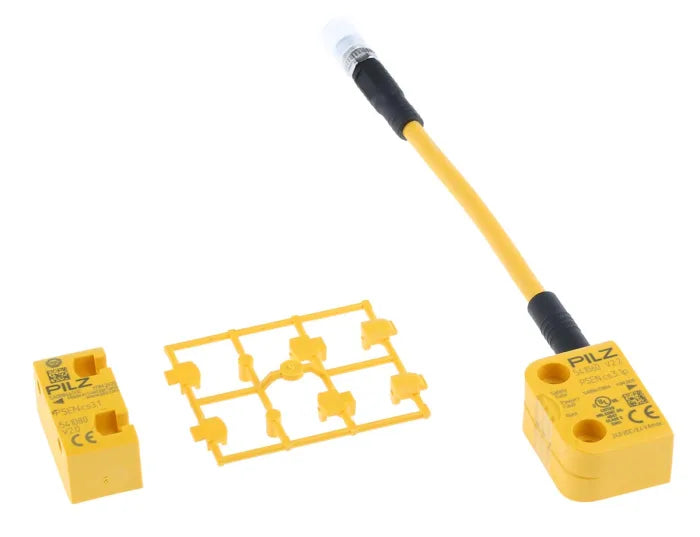

541010 | Pilz PSENcode Transponder Non-Contact Safety Switch, 24 VDC, M8 Connector
- Regular price
- $255.00
- Sale price
- $255.00
- Regular price
-
Couldn't load pickup availability
Product Description P/N: 541010
Description
The Pilz 541010 is a complete non-contact RFID transponder safety switch assembly from the PSENcode family. Designed for high-integrity guard monitoring, it combines a compact switch and coded actuator, offering secure position and access detection with high resistance to tampering. Operating at 24 VDC, it provides dual OSSD safety outputs (100 mA each) and utilizes an 8-pin M8 male connector for straightforward integration. With IP69K protection and a wide operating temperature range, it is ideal for harsh industrial environments.
Technical Specifications
| Condition | New/Never Used Surplus |
| Brand | Pilz |
| Part Number | 541010 |
| Product Family | PSENcode |
| Switch Type | Non-contact safety switch set |
| Actuator Type | Coded (RFID) |
| Supply Voltage | 24 VDC |
| Outputs | 2× OSSD semiconductor outputs, 100 mA each |
| Switching Distance | Sao 8 mm, Sar 20 mm |
| Connection Type | 8-pin M8 male connector |
| Housing Material | PBT (Polybutylene Terephthalate) |
| Protection Rating | IP69K |
| Ambient Operating Temperature | -25 to +70 °C |
| Mounting Style | Compact rectangular |
| Application | Guard door and position monitoring |
Information About 541010
The Pilz PSENcode transponder switch enables safe monitoring of movable guards, doors, and protective covers in accordance with EN 60947-5-3. It uses RFID-coded technology, ensuring strong manipulation protection and allowing the switch to accept any compatible PSENcode actuator. Offering both safety and diagnostics, the unit includes three integrated LEDs for status indication.
Key Features:
- RFID-coded safety switch with non-contact operation
- Rated switching distance: Sao 8 mm / Sar 20 mm
- Dual OSSD semiconductor safety outputs (100 mA each)
- Compact rectangular housing for easy installation
- High manipulation protection due to RFID coding
- IP69K protection for harsh or washdown environments
- -25 to +70 °C operating temperature
- 8-pin M8 male connector
- Three diagnostic LEDs for status and fault indication
With a switching distance of 8 mm (Sao) / 20 mm (Sar), the safety switch ensures reliable activation even with slight misalignment. The 541010 model is built with a durable PBT housing and rated for IP69K, making it suitable for washdown and high-contamination environments. It is engineered for seamless integration into Pilz evaluation devices or any standard safety controller with OSSD inputs.
