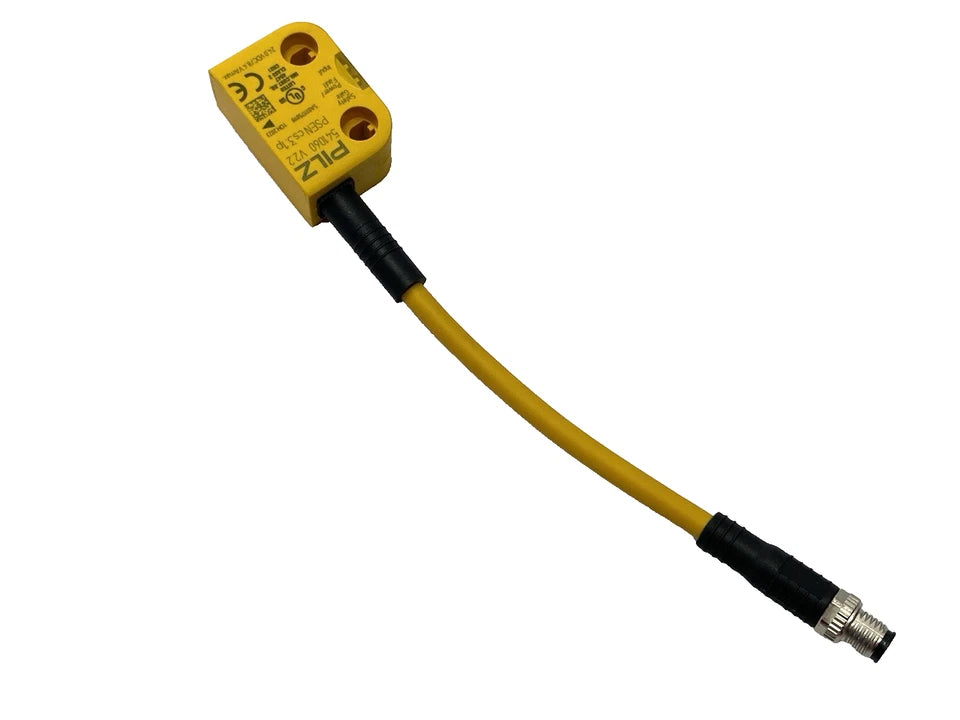

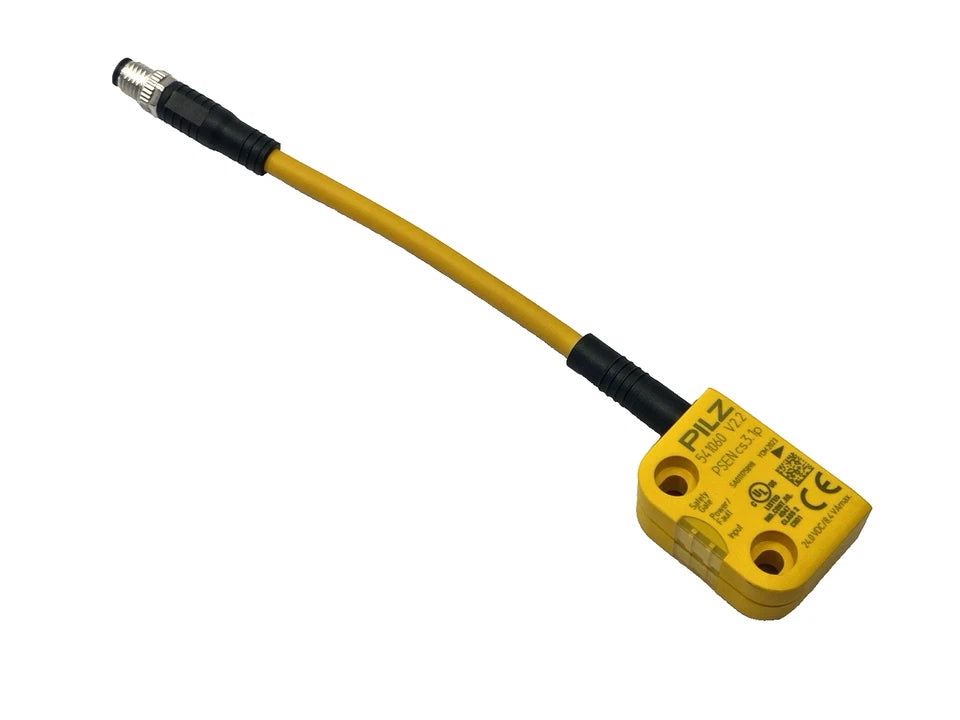

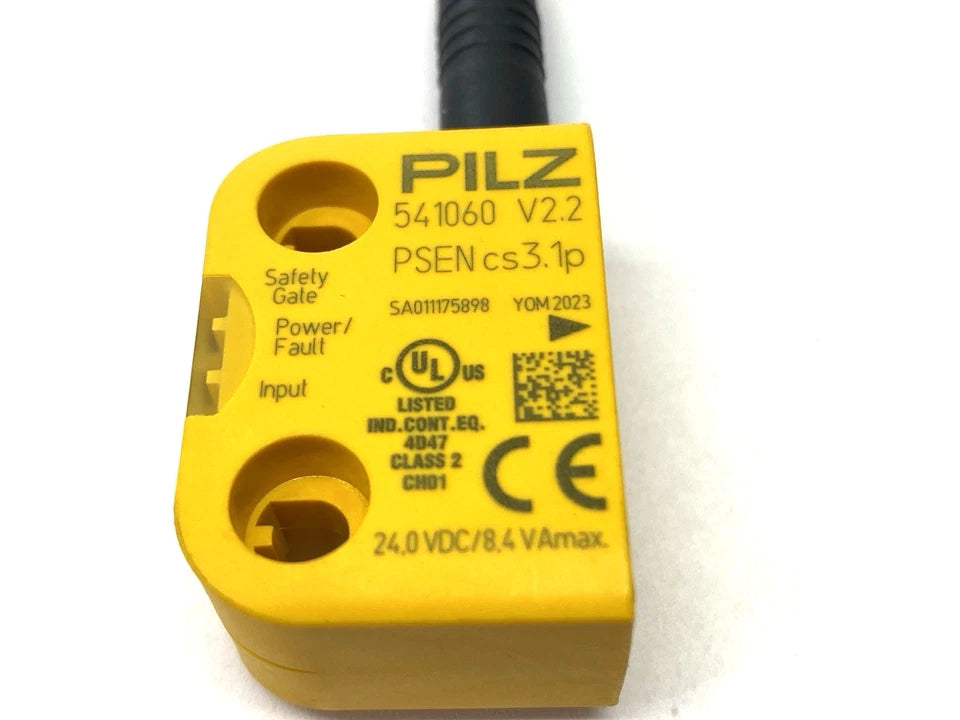

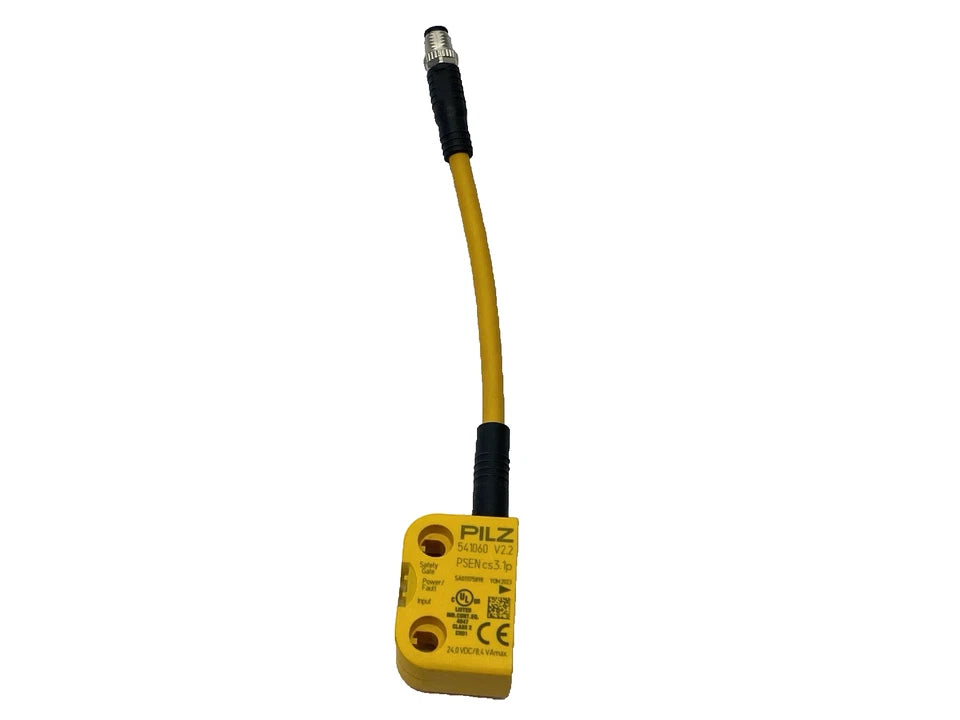

541060 | Pilz PSEN cs3.1p Safety Switch With OSSD Outputs
- Regular price
- $319.00
- Sale price
- $319.00
- Regular price
-
Couldn't load pickup availability
Product Description P/N: 541060
Description
The Pilz 541060 safety switch is a compact coded safety sensor designed for reliable monitoring of protective guards and safety doors in industrial machinery. Operating on a 24 VDC supply, it provides secure OSSD outputs for integration into safety control circuits.
Technical Specifications
| Condition | New/Never Used Surplus |
| Brand | Pilz |
| Category | Safety Switches |
| Part Number | 541060 |
| Subcategory | Safety Interlock Switches |
| Product Series | PSEN cs |
| Model | PSEN cs3.1p 1switch |
| Supply Voltage | 24 V DC |
| Power Consumption | 1 W |
| Number of Inputs | 2 |
| Input Voltage | 24 V DC |
| OSSD Outputs | 2 |
| Signal Outputs | 1 |
| Short-Circuit Proof Outputs | Yes |
| Potential Isolation Outputs | No |
| Ambient Temperature | -25 to +70 °C |
| Max Ambient Temperature (Hmax) | +60 °C |
| Max Ambient Temperature (2000 m) | +70 °C |
| Height | 37 mm |
| Width | 26 mm |
| Depth | 18 mm |
| Weight | 50 g |
Information About 541060
The 541060 is part of the Pilz PSEN cs series of compact coded safety switches developed for space-critical machine safety applications. It is designed to monitor the position of movable guards and safety doors using a coded sensor principle that reduces the risk of manipulation. The device operates with two safety-related OSSD outputs and an additional signal output for status indication or diagnostics. Its robust design supports reliable operation across a wide temperature range in demanding industrial environments.
Key Features
- PSEN cs Coded Safety Technology: Uses coded sensor principles to ensure reliable guard monitoring and increased protection against tampering.
- Dual OSSD Safety Outputs: Provides two semiconductor OSSD outputs for direct connection to safety relays or safety controllers.
- Additional Signal Output: Includes a dedicated signal output for diagnostic or control feedback within the automation system.
- Compact Housing Design: Extremely small dimensions allow installation in applications with limited mounting space.
- Short-Circuit Protected Outputs: OSSD outputs are short-circuit proof, supporting stable and fault-tolerant operation.
- Wide Operating Temperature Range: Designed for continuous use in environments from -25 to +70 °C.
- Low Power Consumption: Requires only 1 W at 24 VDC, reducing overall system power demand.
The 541060 delivers the reliability and precision required for safety door and protective guard monitoring in industrial safety systems.
