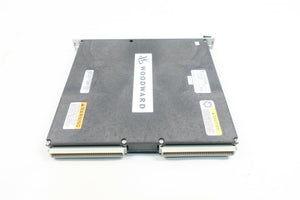

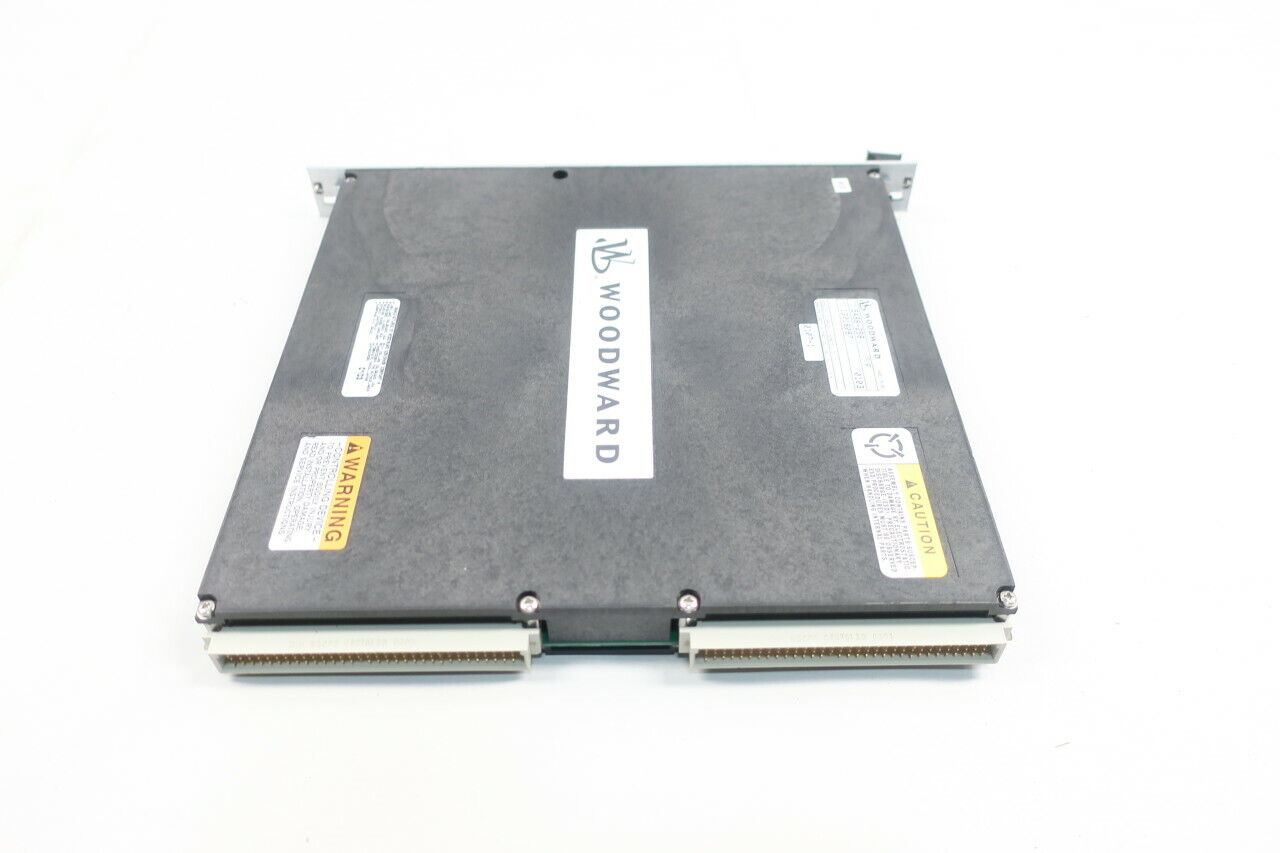

5466-258 | Woodward Discrete I/O Module
- Regular price
- $4,217.00
- Sale price
- $4,217.00
- Regular price
-
Couldn't load pickup availability
Do you need help?
Product Description P/N: 5466-258
Description
The Woodward 5466-258 is a Simplex 48/24 Discrete Input/Output Module designed for use in both MicroNet and Vertex-Pro chassis. This module features one red fault LED and holds UL and ATEX listings. The 5466-258 is an integral component of the Vertex-Pro system for MicroNet Digital Controllers.
Technical Specifications
| Brand | Woodward |
| Category | PLCs/Machine Control |
| Part Number | 5466-258 |
| Subcategory | PLC Module/Rack |
| Air Quality | Pollution Degree 2 |
| Control Type | Vertex-Pro Motor-Driven Compressor |
| Installation Overvoltage Rating | Category II |
| Listings | IL, ATEX, CE(EMC), DNV, ABS, and LRS |
| Module Type | Simplex Discrete 48/24 I/O Module |
| Operating Temperature Range | 0-55°C |
| Storage Temperature | -40 to +105 °F |
Information About 5466-258
The Woodward 5466-258 is a sophisticated Simplex Discrete 48/24 I/O Module designed for use in advanced PLC and machine control systems, offering reliable performance and robust control capabilities. Engineered for demanding industrial environments, this module is an essential component for systems that require precise control and monitoring of motor-driven compressors, specifically within the Vertex-Pro series. With its advanced features and certifications, the 5466-258 is a versatile and durable solution suitable for a wide range of applications.
This module operates within a Pollution Degree 2 air quality rating, making it ideal for environments where only non-conductive pollution occurs. This rating ensures that the module can function reliably in industrial settings where contaminants like dust and dirt are present but do not pose a direct threat to the module's performance. The Pollution Degree 2 rating emphasizes the module's suitability for environments where control systems are housed in protective enclosures, shielding them from more severe environmental conditions.
Designed to manage both 48 V and 24 V discrete inputs and outputs, the 5466-258 provides flexible control options for a variety of applications. Whether used to monitor and control motor-driven compressors or other industrial machinery, this module delivers precise and reliable performance, ensuring that all connected systems operate efficiently and effectively. The module's discrete I/O capabilities allow for straightforward integration into existing control systems, making it a practical choice for both new installations and upgrades.
The 5466-258 is rated for installation under Overvoltage Category II conditions, indicating that it is designed to handle overvoltage transients typically found in fixed installations like industrial control systems. This rating ensures that the module can withstand electrical surges and spikes commonly encountered in industrial environments, providing an added layer of protection for the control system and enhancing overall system reliability.
The module is listed and certified under several international standards, including IL, ATEX, CE(EMC), DNV, ABS, and LRS. These certifications demonstrate the module's compliance with stringent safety and performance standards, making it a trusted choice for use in a variety of industries, including marine, offshore, and hazardous environments. The ATEX and CE(EMC) listings confirm the module's suitability for use in environments where explosive atmospheres or electromagnetic compatibility are concerns, ensuring safe and interference-free operation.
Temperature tolerance is another key feature of the 5466-258. It operates within a temperature range of 0-55°C, making it suitable for use in environments with moderate temperature variations. Additionally, the module's storage temperature range extends from -40 to +105°F, allowing it to withstand extreme conditions during transportation and storage without compromising its performance or reliability.
The Woodward 5466-258 module's design prioritizes durability and ease of integration, featuring a compact and rugged construction that ensures long-term reliability even in demanding industrial settings. The module is engineered for simple installation into PLC racks, with standard connectors and interfaces that facilitate quick and secure connections to other system components. This ease of installation and maintenance reduces downtime and enhances the overall efficiency of the control system.
In summary, the Woodward 5466-258 Simplex Discrete 48/24 I/O Module is a highly reliable and versatile component designed for advanced PLC and machine control systems. With its Pollution Degree 2 rating, Overvoltage Category II protection, and extensive certifications, this module is well-suited for a wide range of industrial applications, including those in hazardous or marine environments. Its robust design, flexible I/O capabilities, and broad temperature tolerance make it an ideal choice for controlling motor-driven compressors and other critical industrial machinery, ensuring efficient and safe operation across various demanding settings.
Manufacturer information
Woodward is a leading manufacturer of control systems and components for the aerospace and industrial sectors. With a history spanning over 150 years, Woodward specializes in providing innovative solutions for engine and energy control, serving customers worldwide.
