5466-409 | Woodward Processor Module

Description

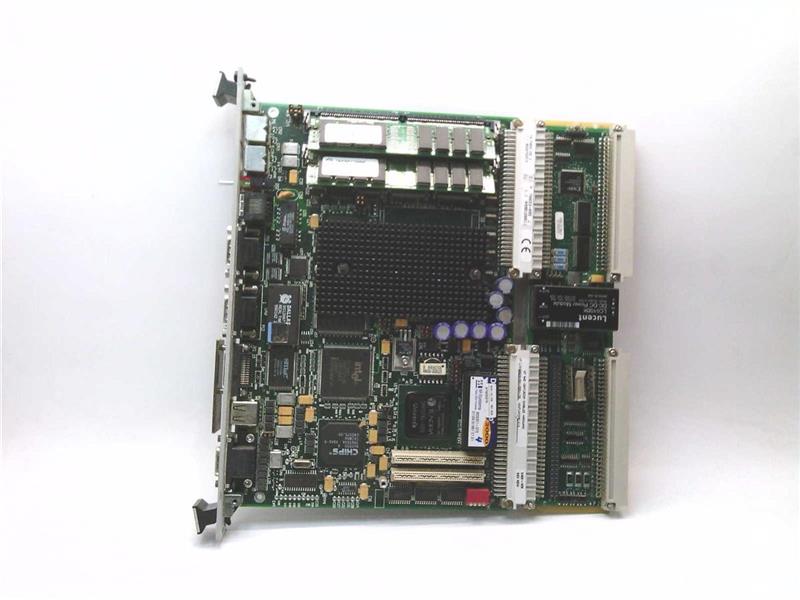

The 5466-409 is a Processor Module manufactured by Woodward. It is designed for use in control systems, providing processing capabilities to manage and execute control functions within industrial applications.

Technical Specifications

Information About 5466-409

The 5466-409 is a highly specialized Processor Module designed by Woodward, intended for integration within PLC systems to provide robust processing capabilities essential for managing complex industrial control functions. Categorized under PLCs/Machine Control and further classified as a PLC Module/Rack, this processor module is engineered to meet the demanding requirements of modern industrial environments, where reliability, precision, and compliance with industry standards are paramount.

Weighing 3.20 lbs, the 5466-409 is constructed to be both durable and efficient, ensuring consistent performance even in challenging operational conditions. The module’s design reflects a commitment to high-quality engineering, with a focus on delivering long-term reliability in continuous operation environments. Its solid build and careful component selection contribute to its ability to withstand the physical and electrical stresses commonly encountered in industrial settings, such as vibration, temperature fluctuations, and electrical noise.

One of the key features of the 5466-409 Processor Module is its compliance with several important industry standards, including LRS (Lloyd's Register of Shipping), DNV (Det Norske Veritas), and CE (Conformité Européenne) with EMC (Electromagnetic Compatibility) directives. These certifications attest to the module’s adherence to stringent safety, quality, and environmental standards, making it suitable for deployment in a wide range of industrial applications, particularly in environments where regulatory compliance is critical.

The module operates as a Simplex redundancy type, which is a common configuration in systems where a single processor is sufficient to handle all control tasks without the need for backup or failover capabilities. This redundancy type is ideal for applications where simplicity and cost-effectiveness are prioritized, and where the risk of system failure is minimized by the stable operating conditions and reliable hardware.

The 5466-409 is powered by a Pentium-class CPU, providing the processing power necessary to execute complex control algorithms and manage high-speed data processing tasks. With a processor speed of 233 MHz, this module delivers adequate computational performance to handle a wide range of industrial control applications. The 64 MB of onboard memory supports the storage and execution of large control programs, enabling the module to manage multiple tasks simultaneously with efficiency and precision.

Connectivity is a crucial aspect of the 5466-409, and the module is equipped with both Ethernet and RS-232 ports. These communication ports provide versatile options for integrating the module into broader control networks, allowing it to interface seamlessly with other PLCs, HMIs, sensors, and external devices. The Ethernet port facilitates high-speed data transfer and network connectivity, which is essential for real-time monitoring and control in modern industrial systems. The RS-232 port offers a reliable serial communication option, ensuring compatibility with a wide range of legacy devices and systems.

The 5466-409 is designed for installation in an expansion chassis, allowing it to be easily integrated into existing PLC systems as an upgrade or addition to enhance processing capabilities. The expansion chassis design provides flexibility in system configuration, enabling users to scale their control systems according to their specific needs without the need for extensive reconfiguration or replacement of existing components.

Operating within a temperature range of 0 to 50°C, the 5466-409 is suited for use in controlled industrial environments where temperature conditions are stable. This operating range ensures that the module can function reliably without the risk of overheating or performance degradation, even during extended periods of operation.

In summary, the 5466-409 Processor Module by Woodward is a high-performance, reliable component designed to meet the rigorous demands of industrial control applications. With its compliance with LRS, DNV, and CE (EMC) standards, it is suitable for use in regulated environments where safety and quality are of utmost importance. The Simplex redundancy, Pentium-class CPU with 233 MHz speed, 64 MB memory, and versatile connectivity options via Ethernet and RS-232 ports make it an ideal choice for a wide range of industrial automation tasks. The module’s design, optimized for installation in an expansion chassis, ensures easy integration into existing systems, while its robust construction and operational reliability make it a dependable choice for maintaining efficient and effective control in industrial environments.
