5496 | Honeywell Silent Knight 6A Intelligent Power Module for Fire Alarm Systems
- Regular price
- $399.00
- Sale price
- $399.00
- Regular price
-
Couldn't load pickup availability
Do you need help?
Product Description P/N: 5496
Description

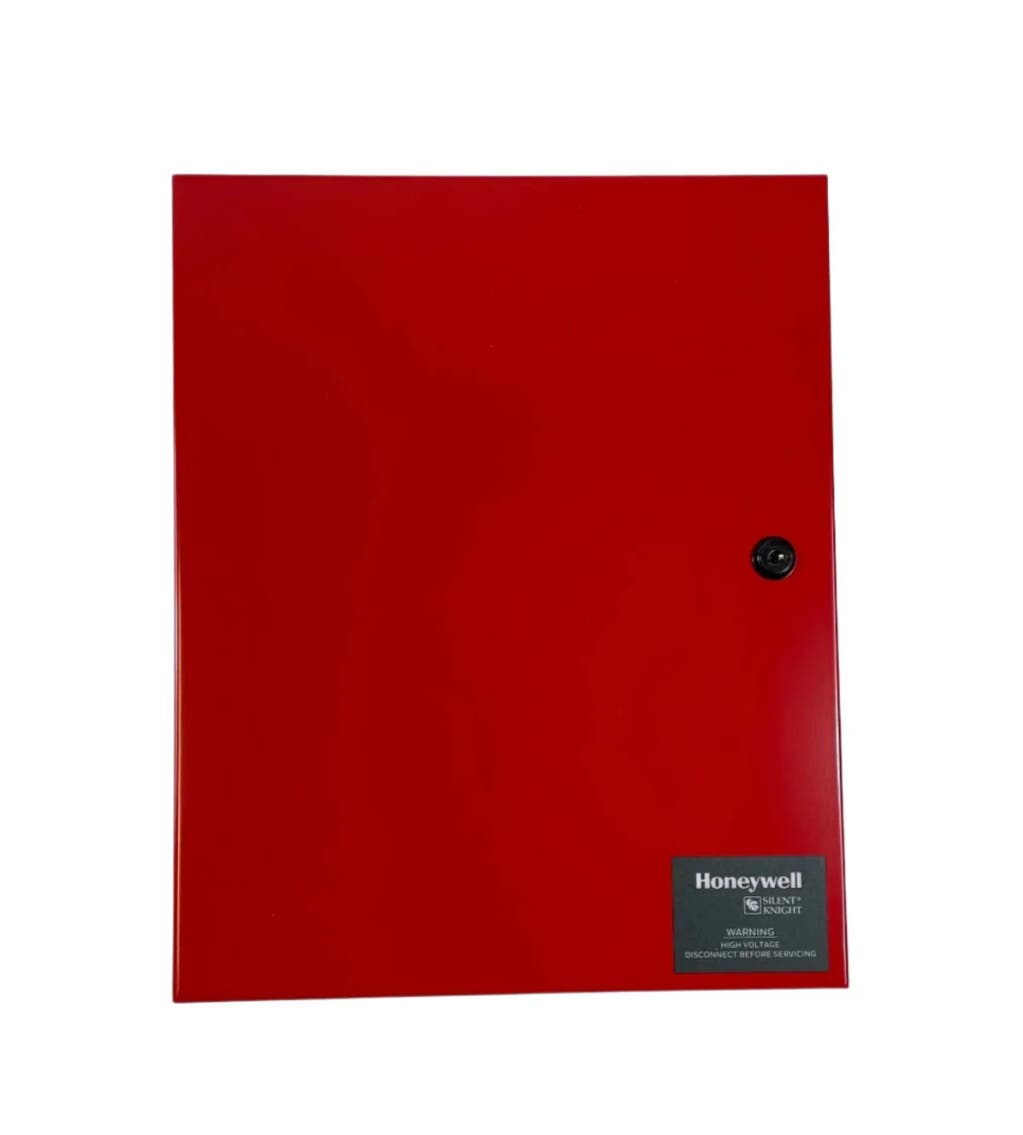

The Silent Knight 5496 Intelligent Power Module by Honeywell (Part Number: 5496) is a high-efficiency 6-amp notification power expander designed for use with Silent Knight addressable fire alarm control panels (FACPs). This unit provides additional power for notification appliances, synchronization capability for multiple brands, and backup power through integrated battery charging. With its advanced switch mode power supply design, the 5496 offers optimal performance, energy efficiency, and reliability in commercial fire protection systems.
Technical Specifications
| Condition | New/Never Used Surplus |
| Brand | Silent Knight by Honeywell |
| Category | Fire Alarm Systems |
| Part Number | 5496 |
| Subcategory | Power Supply Modules |
| Input Voltage | 120 VAC, 60 Hz |
| Output Voltage | 24 VDC filtered |
| Output Current | 6 Amps total (3A per circuit) |
| Number of Outputs | 4 (configurable as NAC or auxiliary) |
| Communication Interface | 4-wire SBUS (up to 6000 ft) |
| Synchronization Compatibility | System Sensor®, Gentex®, AMSECO®, Wheelock® |
| Certifications | UL Listed, FM Approved, NFPA 72, CSFM Approved |
| Mounting Type | Wall-mounted (cabinet not included) |
| Operating Temperature | 32°F to 120°F (0°C to 49°C) |
| Backup Power | Battery charging and supervision supported |

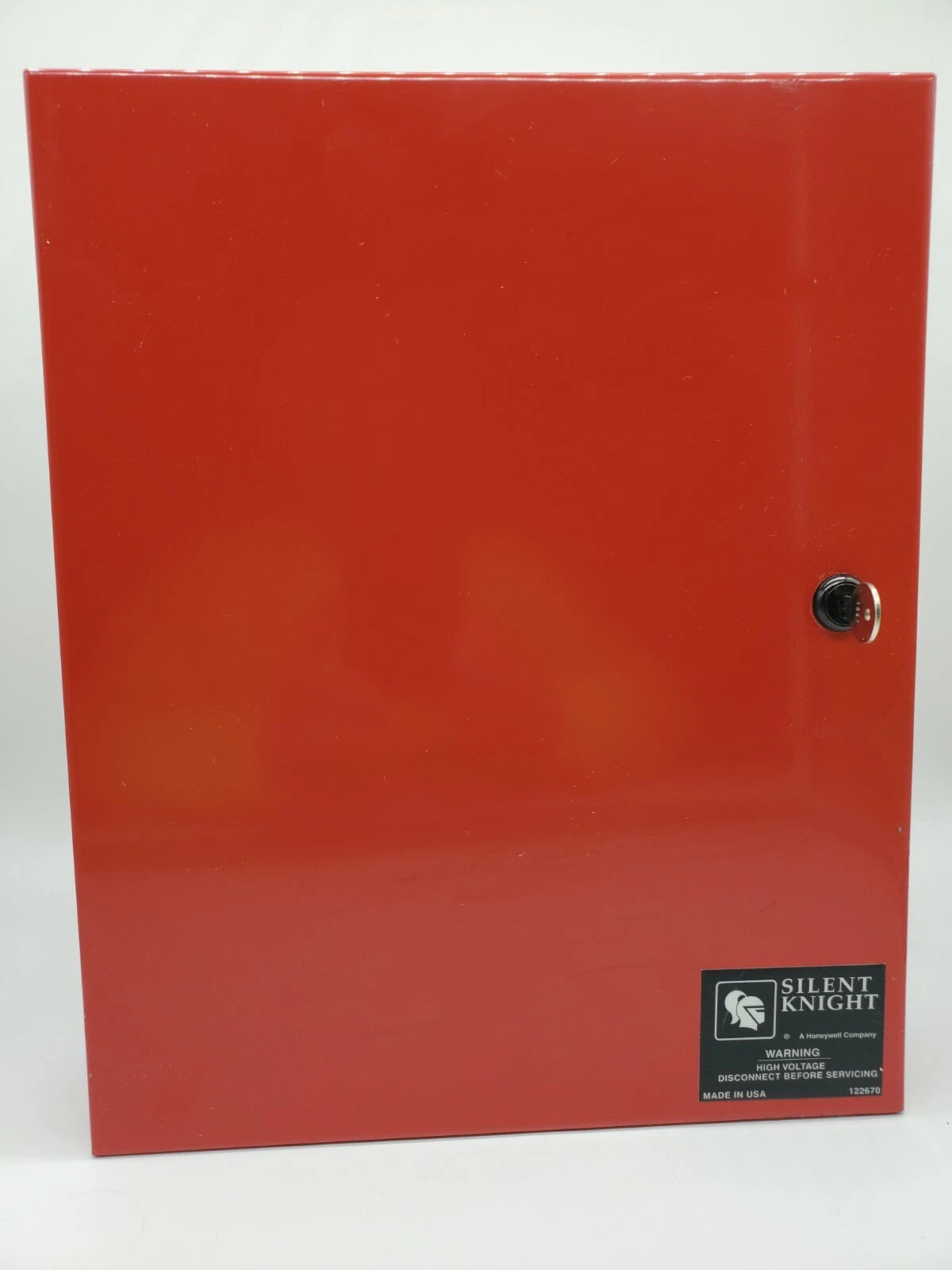

| Enclosure Dimensions | 16" H × 12.3" W × 3" D |
| Compatibility | Silent Knight FACPs: 6700, 6808, 6820, 6820EVS |
| Country of Origin | United States |
| Weight | 12 lbs |
Information About 5496
The Silent Knight 5496 Intelligent Power Module by Honeywell (Part Number: 5496) is a high-efficiency 6-amp notification power expander designed for use with Silent Knight addressable fire alarm control panels (FACPs). This unit provides additional power for notification appliances, synchronization capability for multiple brands, and backup power through integrated battery charging. With its advanced switch mode power supply design, the 5496 offers optimal performance, energy efficiency, and reliability in commercial fire protection systems.
Key Features
- High Power Output: Delivers 6 amps of notification circuit power for extensive system coverage.
- Programmable Outputs: Four output circuits configurable as notification or auxiliary power.
- Advanced Efficiency: Switch mode design reduces heat generation and increases power efficiency by up to 50%.
- Built-in Synchronization: Compatible with System Sensor®, Gentex®, AMSECO®, and Wheelock® appliances.
- Integrated Battery Backup: Includes battery charging and supervision for continuous operation.
- Ground Fault Detection: Monitors and reports system integrity for enhanced safety.
- Flexible Configuration: Supports Class A, Class B, or combined circuit setups.
- UL, FM, and NFPA Certified: Meets rigorous fire protection and reliability standards.
The 5496 delivers the reliability and precision required for commercial and institutional fire protection systems.
