5501-380 | Woodward MicroNet Digital Control

Description

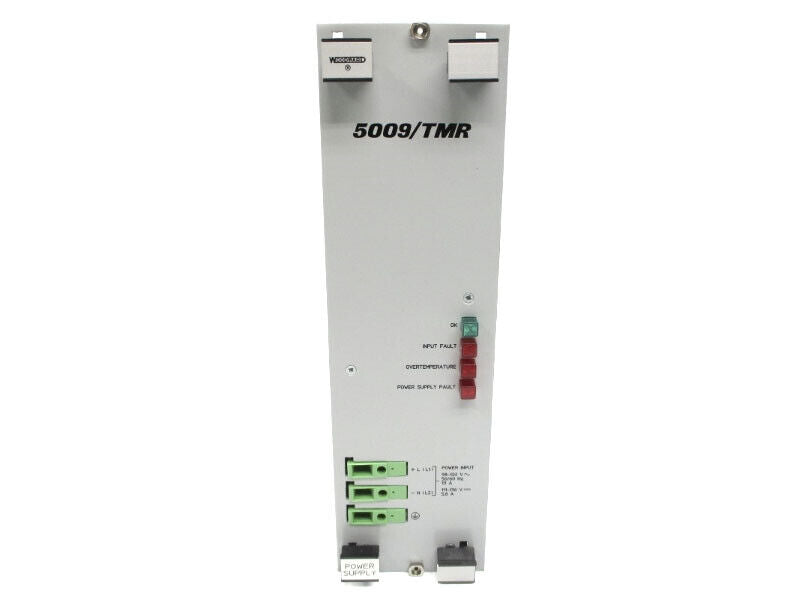

The 5009/MicroNet TMR Power Supply Board 5501-380 operates on a supply of 120 VAC/VDC. Each voltage uses a different maximum current: the maximum current for VDC is 5.8 A.

Technical Specifications

Information About 5501-380

The Woodward 5501-380 is a high-performance PLC module designed to integrate seamlessly within the MicroNet TMR (Triple Modular Redundant) chassis, offering robust and reliable control capabilities for industrial automation and machine control applications. This module is engineered to meet the demanding requirements of modern industrial systems, providing precise control, efficient power management, and reliable operation even in the most challenging environments. The 5501-380 is a critical component in ensuring that complex processes are managed effectively, maintaining operational stability and reducing the risk of downtime.

Operating with an input voltage of 120 VAC/VDC, the Woodward 5501-380 is versatile and adaptable, making it suitable for a wide range of industrial applications. The module’s power specifications include a maximum power output of 1150 VA when used with VAC and 576 W when operating with VDC, providing ample power to support various control functions within the system. This flexibility in power usage ensures that the module can be effectively utilized in different configurations, depending on the specific needs of the application.

One of the key features of the 5501-380 is its ability to handle different wire sizes for 100-150 VDC connections. The module is designed to accommodate 14 AWG or 2.5 mm squared wire sizes, ensuring secure and reliable connections that are essential for maintaining the integrity of the control system. This adaptability in wire sizing allows for flexibility in installation, making it easier to integrate the module into existing systems or during new setups.

The 5501-380 is equipped with a 20 A breaker rating for VAC, ensuring that the module is protected against overcurrent conditions that could potentially damage the system. This breaker rating is crucial for maintaining the safety and reliability of the control system, preventing electrical faults from escalating into more significant issues. Additionally, the module features a maximum fuse or circuit breaker (C.B.) rating of 10 A, further enhancing its protective capabilities.

In terms of performance, the 5501-380 offers a holdup time of 7 ms at 120 VDC, ensuring that the module can maintain operation during brief power interruptions. This holdup time is critical in environments where power stability is a concern, as it allows the system to continue functioning without interruption, thereby reducing the risk of process disruptions and maintaining overall system stability.

The Woodward 5501-380 is housed within the MicroNet TMR chassis, a platform known for its redundancy and reliability in critical control applications. The TMR architecture provides triple modular redundancy, which significantly enhances the reliability and fault tolerance of the system. This makes the 5501-380 an ideal choice for applications where downtime is not an option and where continuous, reliable operation is essential.

The robust construction of the 5501-380 ensures long-term durability, withstanding the harsh conditions typically found in industrial environments. Its design is built to resist temperature fluctuations, electrical noise, and mechanical vibrations, ensuring that the module performs reliably over extended periods. This durability reduces maintenance requirements and extends the lifespan of the module, contributing to lower overall operating costs.

In summary, the Woodward 5501-380 PLC module is a versatile and reliable component designed for use within the MicroNet TMR chassis. With its flexible power options, robust protective features, and precise control capabilities, this module is well-suited for a variety of industrial applications. Its ability to handle different wire sizes, combined with its strong safety features, makes it an indispensable part of any industrial control system where reliability, safety, and efficiency are paramount. Whether used in new installations or as part of an upgrade to existing systems, the 5501-380 delivers the performance and reliability needed to ensure smooth and uninterrupted operations in demanding industrial environments.

Manufacturer information

Woodward is a leading manufacturer of control systems and components for the aerospace and industrial sectors. With a history spanning over 150 years, Woodward specializes in providing innovative solutions for engine and energy control, serving customers worldwide.
