5520-N5 | Edwards Signaling High-Decibel 120V Electronic Horn-Siren
- Regular price
- $1,265.00
- Sale price
- $1,265.00
- Regular price
-
Couldn't load pickup availability
Do you need help?
Product Description P/N: 5520-N5
Description
1. Description

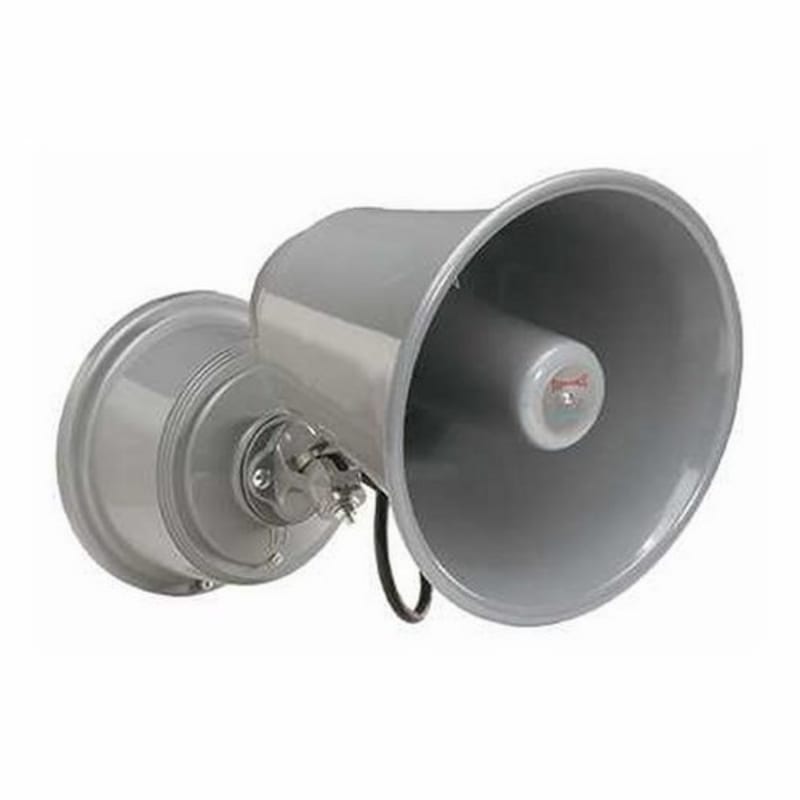

The Edwards Signaling 5520-N5 is a high-performance electronic audible signal capable of operating as either a horn or a siren via an internal switch, delivering a maximum output of 114 dB at 10 feet. This device is specifically engineered for use in commercial and industrial settings like factories and schools for applications requiring continuous or coded timing, paging, or evacuation alarms.
Technical Specifications
| Condition |
New/Never Used Surplus
|
| Brand |
Edwards Signaling
|
| Part Number | 5520-N5 |
| Subcategory | Horn/Siren |
| Series | 5520 Series |
| Supply Voltage | 120 VAC |
| Frequency | 60 Hz |
| Primary Type | Horn/Siren |
| Sound Level (Horn) |
124 dB @ 1 m, 114 dB @ 10 ft.
|
| Sound Level (Siren) |
122 dB @ 1 m, 112 dB @ 10 ft.
|
| Horn Frequency | 1.1 KHz |
| Siren Modulation |
Rises/Falls from 600 to 1300 Hz every 3 seconds
|
| Mounting Type | Adaptaplate |
| Speaker Swivel |
180∘ Horizontal, 90∘ Vertical
|
| Approvals | UL; FM |
| Weight | Not Specified |
Information About 5520-N5
The 5520-N5 is part of the Edwards Signaling 5520 Series, an electronic sound signal built with a tamper-proof internal switch to select between horn and siren functions. Its design utilizes the universal Adaptaplate mounting system, ensuring swift and versatile installation directly on walls or various single-gang, square, or equivalent box openings. This audible signal is primarily used in unsupervised industrial and commercial signaling contexts, providing a high-decibel output that is effective in high-noise environments. It achieves its high output through electronic technology, capable of a maximum sound level of 124 dB at 1 meter (Horn).
Key Features:
- Dual Functionality: Internally switchable to operate as either a high-decibel horn for general signaling or a rising/falling siren for emergency alerts.
- High Sound Output: Produces a maximum sound level of 114 dB at 10 feet (Horn), making it effective in high ambient noise areas.
- Adaptaplate Mounting: Features the Adaptaplate for quick, easy installation onto standard walls or various junction box sizes.
- Flexible Orientation: The integrated speaker swivels 180
∘
horizontally and 90
∘
vertically for optimal sound direction. - Wide Application Range: Suitable for use in schools, factories, and lumber yards for timing, paging, and general alarm applications.
- Siren Modulation: Siren frequency cycles between 600 Hz and 1300 Hz over a 3-second period for enhanced alerting.
- Power Requirement: Operates on a standard 120 VAC, 60 Hz supply voltage.
- Approvals Compliance: Meets stringent safety standards with UL and FM approvals.
The 5520-N5 delivers the reliability and precision required for critical industrial and commercial audible signaling and alarm applications.
