5531M-120N5 | Edwards Signaling Adaptatone Millennium Multi-Tone Signal 120 VAC 110 dB
- Regular price
- $2,751.00
- Sale price
- $2,751.00
- Regular price
-
Couldn't load pickup availability
Do you need help?
Product Description P/N: 5531M-120N5
Description

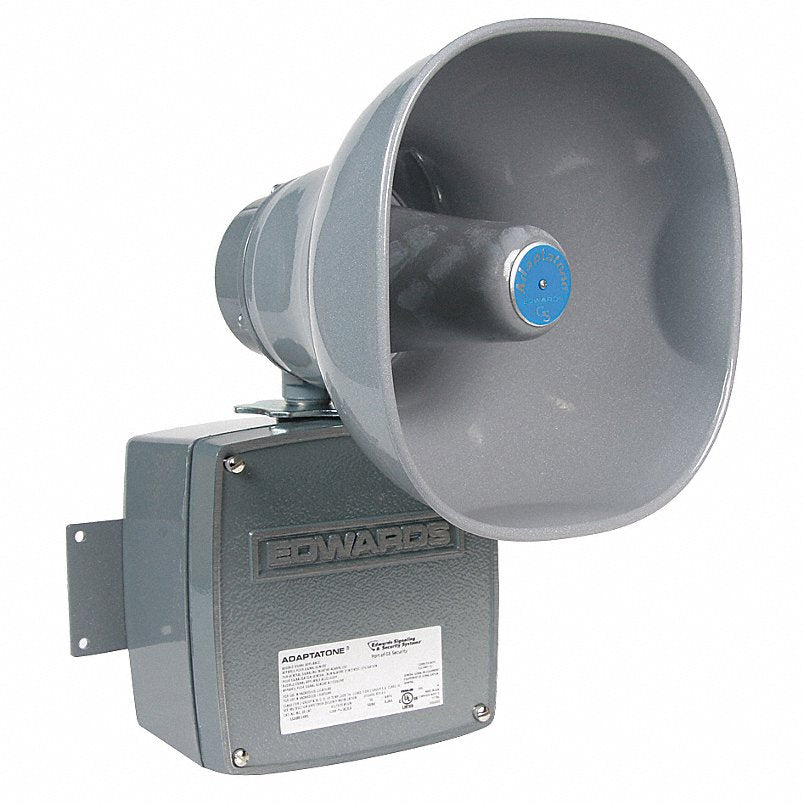

The Edwards Signaling 5531M-120N5 Adaptatone Millennium Multi-Tone Signal is an industrial-grade audible signaling device designed for hazardous and non-hazardous environments. Operating on 120 VAC, it delivers up to 110 dB at 10 feet, providing 55 selectable tone patterns for reliable notification in demanding applications.
Technical Specifications
| Condition | New/Never Used Surplus |
| Brand | Edwards Signaling |
| Category | Audible Signaling Devices |
| Part Number | 5531M-120N5 |
| Subcategory | Multi-Tone Signal Horn |
| Series | Adaptatone Millennium |
| Voltage Rating | 120 VAC, 50/60 Hz |
| Current Rating | 0.36 A |
| Sound Output | 110 dB @ 10 ft, 95–98 dB @ 1 m (min) |
| Number of Tones | 55 selectable tones |
| Sound Pattern | Continuous |
| Material | Zinc alloy |
| Housing Finish | Gray corrosion-resistant coating |
| Mounting Type | Conduit or surface mount |
| Operating Temperature (Hazardous) | -31°F to 104°F (-35°C to 40°C) |
| Operating Temperature (Non-Hazardous) | -40°F to 151°F (-40°C to 66°C) |
| Ingress Protection Rating | IP44 |
| NEMA Rating | NEMA 3R |
| Hazardous Location Rating | Class I Div 2 Groups A, B, C, D; Class II Div 2 Groups F, G; Class III |
| Approvals | UL Listed, cULus Certified |
| Color | Gray |
| Connection Type | Wire leads |
| Mounting Style | Surface mount |
| Power Source | 120 VAC wired |
| Weight | 8.0 lb (approx.) |
Information About 5531M-120N5
The 5531M-120N5 is part of the Edwards Adaptatone Millennium Series, engineered for industrial and hazardous locations requiring flexible and powerful audible alerts. Constructed from durable zinc alloy, this unit is NEMA 3R and IP44 rated for both indoor and outdoor use. It supports Class I Division 2, Class II Division 2, and Class III hazardous area classifications while maintaining superior acoustic performance. The unit includes captive components for secure assembly and offers multiple mounting options for conduit or surface installation.
Key Features:
- Multi-Tone Capability: Offers 55 user-selectable tones to suit diverse signaling applications.
- High Sound Output: Produces 110 dB at 10 feet for effective warning in noisy environments.
- Hazardous Location Rated: Certified for Class I Div 2, Class II Div 2, and Class III installations.
- Durable Construction: Zinc alloy housing provides corrosion resistance and long-term reliability.
- Wide Temperature Range: Operates from -31°F to 104°F (hazardous) and -40°F to 151°F (non-hazardous).
- Flexible Mounting: Supports conduit and surface mounting configurations.
- Safety Certified: UL 464 and 1604 Listed, meeting rigorous safety standards.
- Weather Resistant: NEMA 3R and IP44 rated for indoor/outdoor installation.
The 5531M-120N5 delivers the reliability and precision required for industrial signaling in hazardous and demanding operating environments.
