5532M-N5 | Edwards 120V Remote Speaker/Amplifier, 110 dB Output, NEMA 3R
- Regular price
- $899.00
- Sale price
- $899.00
- Regular price
-
Couldn't load pickup availability
Do you need help?
Product Description P/N: 5532M-N5
Description

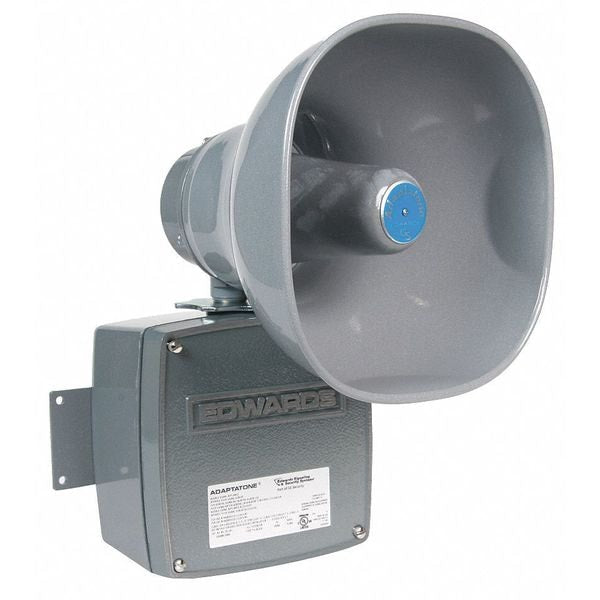

The Edwards 5532M-N5 is a high-output remote speaker/amplifier designed for use with Adaptatone Millennium signaling systems. Operating at 120 VAC, it delivers up to 110 dB at 10 feet, making it ideal for demanding industrial and emergency applications. Built for reliability, it is housed in a NEMA 3R enclosure and supports both conduit and surface mounting.
Technical Specifications
| Condition | New/Never Used Surplus |
| Brand | Edwards Signaling |
| Category | Audible Signaling Devices |
| Part Number | 5532M-N5 |
| Subcategory | Remote Speaker/Amplifier |
| Product Series | 5532M Adaptatone Millennium |
| Nominal Voltage | 120 VAC |
| Sound Output | 110 dB at 10 feet |
| Current Rating | 0.23 A |
| Mounting Type | ½-inch conduit or surface mount |
| Enclosure Rating | NEMA Type 3R |
| System Compatibility | Works with 5540M Central Tone Generator or 5541M Master Panel |
| PLC Compatible | No |
| Explosion Proof | No |
| Hazardous Location | No |
| Safety Approvals | UL, cUL, CE, TUV |
| Typical Applications | Industrial alarms, paging, evacuation, security alerts |
| Dimensions | 8 in W × 8-47/64 in D |
| Net Weight | 10.38 lbs |
| Gross Weight | 10.38 lbs |
Information About 5532M-N5
The 5532M-N5 is part of the Edwards 5532M Adaptatone Millennium Series, engineered for loud, clear signaling in industrial and commercial environments. This unit connects to a 5540M Central Tone Generator or 5541M System Master Panel for system-wide tone distribution. Each speaker/amplifier operates from its own local power source, allowing integration into facilities with varying voltage requirements. With rugged construction, volume control, and multiple safety approvals, it is well-suited for applications such as evacuation alarms, plant paging, and security alerts.
Key Features:
- High Sound Output: Produces 110 dB at 10 feet for reliable notification in noisy environments.
- Independent Volume Control: Allows adjustable output to meet site-specific requirements.
- Flexible Power Integration: Operates directly from local 120 VAC power sources.
- Durable Housing: NEMA 3R-rated enclosure ensures protection in demanding conditions.
- Mounting Options: Supports both ½-inch conduit and surface mounting.
- System Compatibility: Designed for use with Edwards 5540M or 5541M Adaptatone controllers.
- Safety Approvals: UL, cUL, CE, and TUV certified for compliance across regions.
- Reliable Construction: Captive components reduce maintenance and improve system durability.
The 5532M-N5 delivers the reliability and precision required for industrial signaling, emergency warning, and mass notification systems.
Description
The Edwards 5532M-N5 is a high-output remote speaker/amplifier designed for use with Adaptatone Millennium signaling systems. Operating at 120 VAC, it delivers up to 110 dB at 10 feet, making it ideal for demanding industrial and emergency applications. Built for reliability, it is housed in a NEMA 3R enclosure and supports both conduit and surface mounting.
Technical Specifications
| Condition | New/Never Used Surplus |
| Brand | Edwards Signaling |
| Category | Audible Signaling Devices |
| Part Number | 5532M-N5 |
| Subcategory | Remote Speaker/Amplifier |
| Product Series | 5532M Adaptatone Millennium |
| Nominal Voltage | 120 VAC |
| Sound Output | 110 dB at 10 feet |
| Current Rating | 0.23 A |
| Mounting Type | ½-inch conduit or surface mount |
| Enclosure Rating | NEMA Type 3R |
| System Compatibility | Works with 5540M Central Tone Generator or 5541M Master Panel |
| PLC Compatible | No |
| Explosion Proof | No |
| Hazardous Location | No |
| Safety Approvals | UL, cUL, CE, TUV |
| Typical Applications | Industrial alarms, paging, evacuation, security alerts |
| Dimensions | 8 in W × 8-47/64 in D |
| Net Weight | 10.38 lbs |
| Gross Weight | 10.38 lbs |
Information About 5532M-N5
The 5532M-N5 is part of the Edwards 5532M Adaptatone Millennium Series, engineered for loud, clear signaling in industrial and commercial environments. This unit connects to a 5540M Central Tone Generator or 5541M System Master Panel for system-wide tone distribution. Each speaker/amplifier operates from its own local power source, allowing integration into facilities with varying voltage requirements. With rugged construction, volume control, and multiple safety approvals, it is well-suited for applications such as evacuation alarms, plant paging, and security alerts.
Key Features:
- High Sound Output: Produces 110 dB at 10 feet for reliable notification in noisy environments.
- Independent Volume Control: Allows adjustable output to meet site-specific requirements.
- Flexible Power Integration: Operates directly from local 120 VAC power sources.
- Durable Housing: NEMA 3R-rated enclosure ensures protection in demanding conditions.
- Mounting Options: Supports both ½-inch conduit and surface mounting.
- System Compatibility: Designed for use with Edwards 5540M or 5541M Adaptatone controllers.
- Safety Approvals: UL, cUL, CE, and TUV certified for compliance across regions.
- Reliable Construction: Captive components reduce maintenance and improve system durability.
The 5532M-N5 delivers the reliability and precision required for industrial signaling, emergency warning, and mass notification systems.
