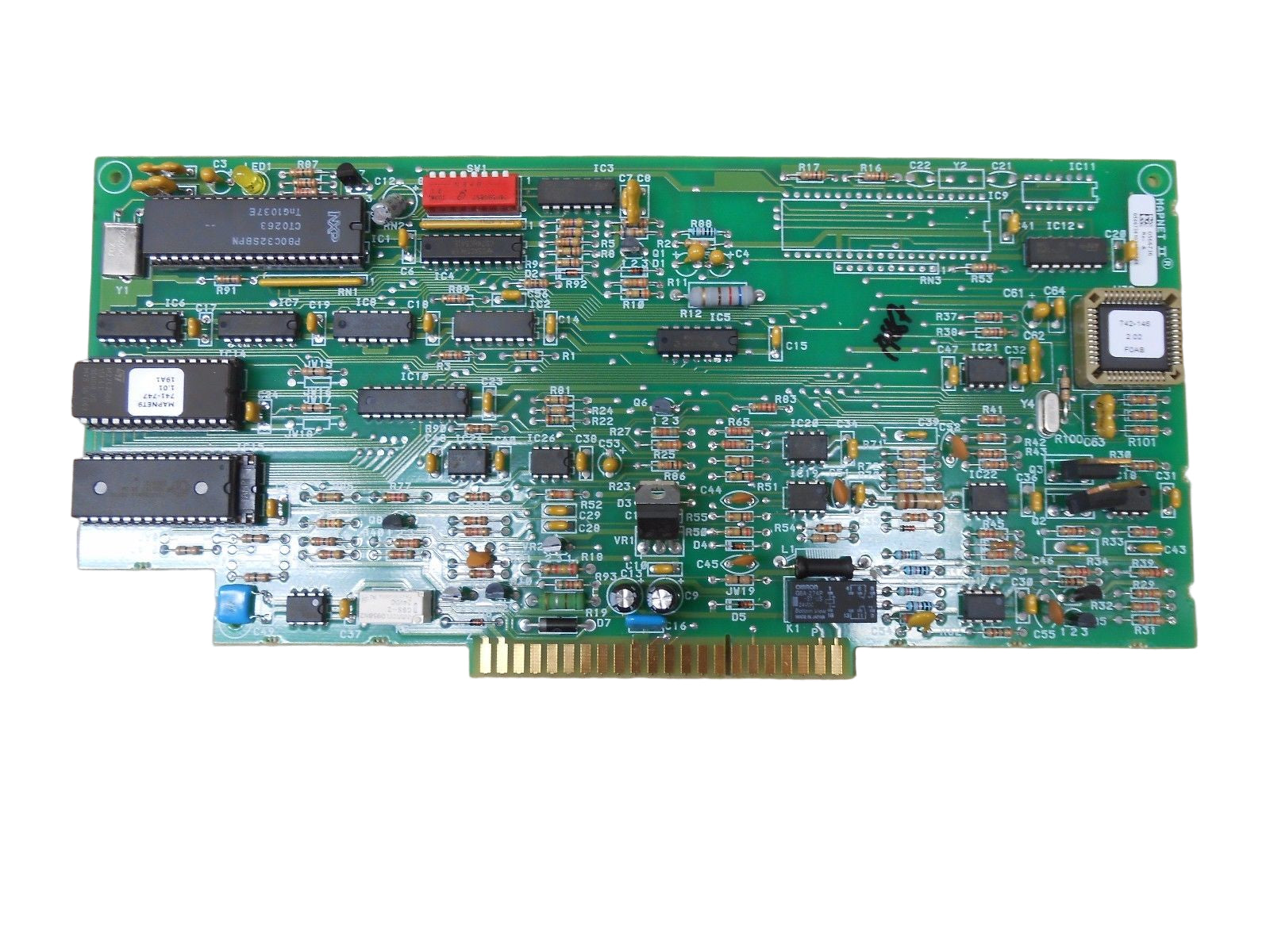

566-736 | Simplex MapNet II Transceiver Board for 4100 Fire Alarm Systems
- Regular price
- $644.00
- Sale price
- $644.00
- Regular price
-
$0.00
Couldn't load pickup availability
Do you need help?
Product Description P/N: 566-736
Description
The Simplex 566-736 is a MapNet II transceiver board designed for use with 4100 fire alarm systems. It serves as an interface module for the 4100-3102 and provides reliable communication between control panels and MapNet II addressable devices.
Technical Specifications
| Condition | New/Never Used Surplus |
| Brand | Simplex |
| Category | PLCs/Machine Control |
| Part Number | 566-736 |
| Subcategory | PC Board PLC/Add-On Board |
| Function | MapNet II transceiver / interface module |
| Compatible Systems | Simplex 4100 Series Fire Alarm Panels |
| Compatible Module | 4100-3102 |
| Communication Type | MapNet II addressable SLC |
| Supported Devices | MapNet II detectors, modules, and notification appliances |
| Supervision | Full line and device supervision |
| Mounting Type | Internal panel slot installation |
| Application | Fire alarm signaling and device integration |
| Status | Discontinued by Manufacturer |
| Use Case | Legacy MapNet II system maintenance |
| Weight | 0.78 lbs |
Information About 566-736
The 566-736 is a dedicated transceiver board that enables Simplex 4100 series fire alarm control panels to communicate over the MapNet II signaling line circuit (SLC). It converts panel-level signals into MapNet II protocol, allowing addressable devices such as detectors, modules, and control points to function within the system. Designed as a direct interface for the 4100-3102, this board provides robust and supervised data transmission. Although discontinued, it remains essential for servicing legacy installations still operating with MapNet II technology.
Key Features:
- MapNet II Transceiver: Provides communication between panels and addressable devices.
- 4100 Compatibility: Designed for use with Simplex 4100 series panels.
- Interface Module: Works directly with 4100-3102 boards.
- Addressable Device Support: Enables use of MapNet II detectors and modules.
- Supervised Communication: Monitors signal integrity across the SLC.
- Reliable Integration: Ensures smooth panel-to-device connectivity.
- Legacy System Role: Essential for maintaining older MapNet II fire alarm systems.
- Compact PCB Design: Circuit board format for internal installation.
- Discontinued Part: No longer manufactured, available only for repair/maintenance.
The 566-736 delivers the reliability and precision required for MapNet II communications in Simplex 4100 fire alarm systems.
