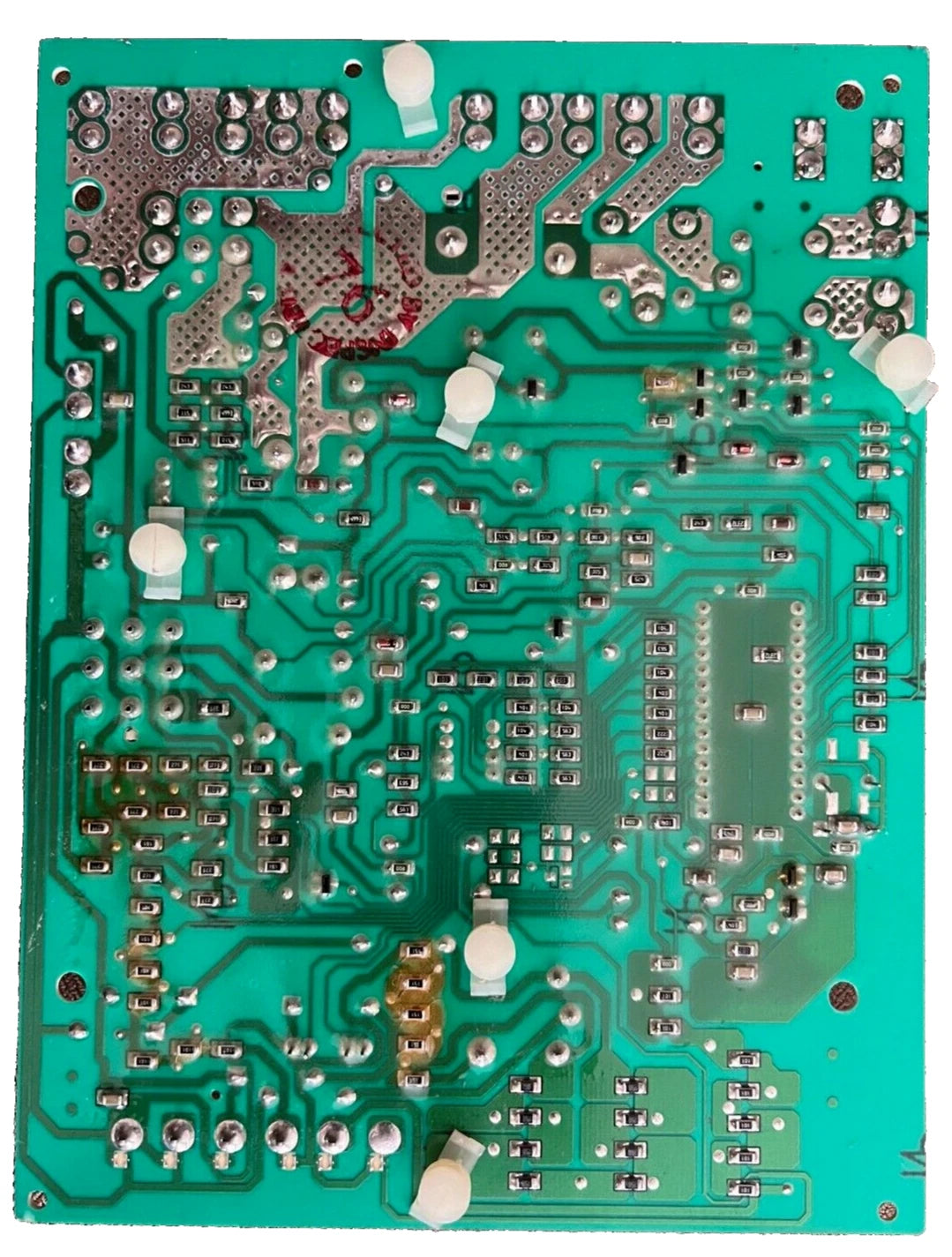

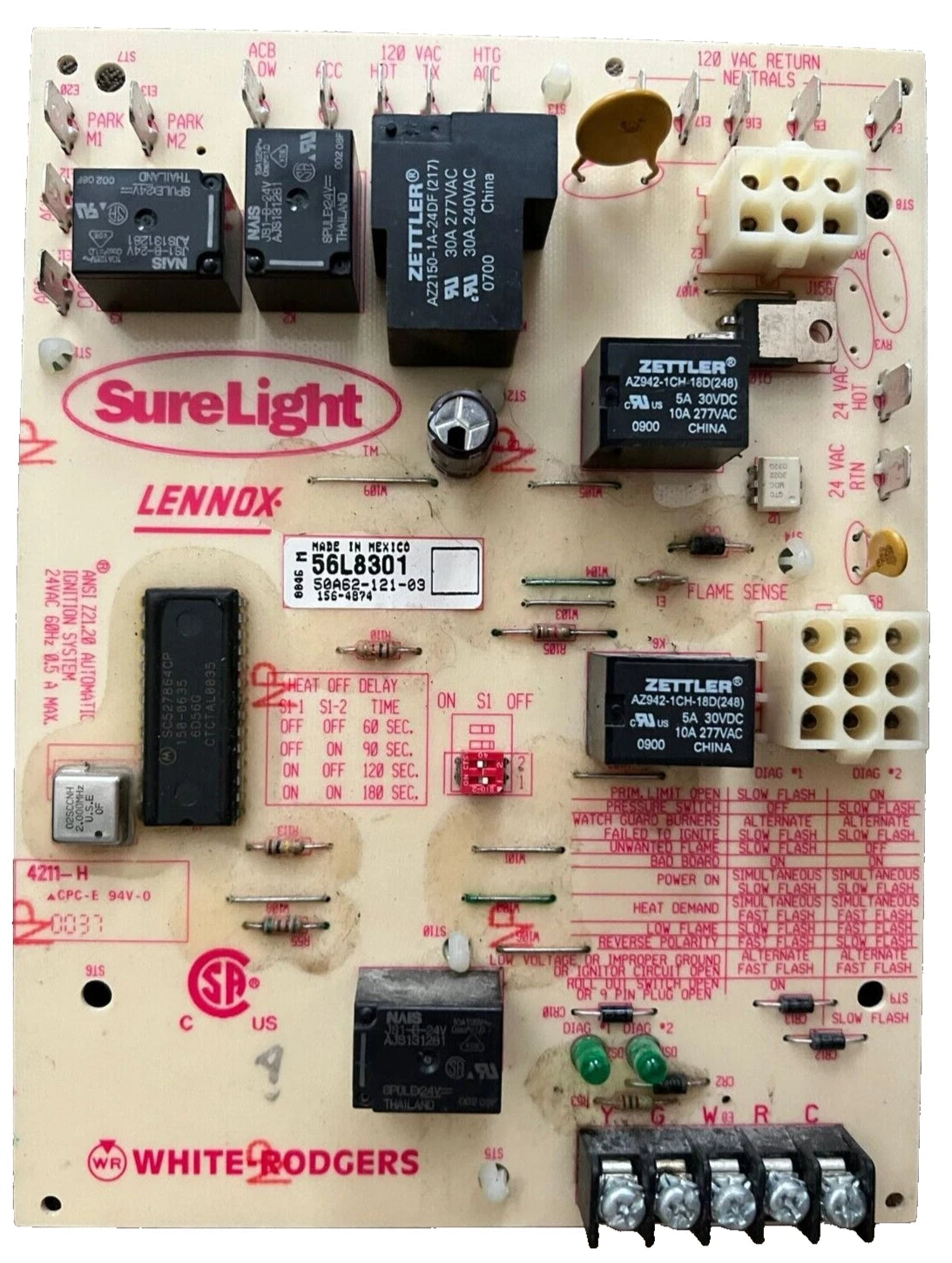

56L8301 | Lennox SureLight Furnace Control Board 24V Integrated Ignition
- Regular price
- $634.00
- Sale price
- $634.00
- Regular price
-
Couldn't load pickup availability
Product Description P/N: 56L8301
Description
The Lennox 56L8301 SureLight Furnace Control Circuit Board is an integrated ignition control designed for residential gas furnace systems. Operating on a 24V control circuit, it manages ignition sequencing, flame sensing, blower timing, and system safety functions. This OEM-upgraded White-Rodgers replacement board ensures reliable furnace operation and consistent heating performance.
Technical Specifications
| Condition | New/Never Used Surplus |
| Brand | Lennox |
| Category | HVAC Control Boards |
| Part Number | 56L8301 |
| Subcategory | Furnace Ignition Control Boards |
| Board Type | Integrated Furnace Control Board |
| Control Voltage | 24 V |
| Ignition Type | SureLight Integrated Ignition |
| Igniter Type | Silicon Nitride |
| Heating System Type | Gas Furnace |
| Compatible Brand | Lennox |
| Application | Residential HVAC Systems |
| Mounting Type | Internal Furnace Mount |
| Construction | Electronic Control Board |
| Duty Cycle | Continuous Operation |
| Weight | Approx. 1 lb (0.45 kg) |
Information About 56L8301
The 56L8301 is part of the Lennox SureLight ignition control family, utilizing White-Rodgers integrated control technology. It is engineered to support silicon nitride igniters for dependable and long-lasting ignition performance. The control board coordinates gas valve operation, blower delays, and safety shutdown logic to protect the furnace during abnormal operating conditions. Its design allows direct replacement in compatible Lennox furnace platforms, restoring original system functionality.
Key Features:
- Integrated Furnace Control Board: Combines ignition, blower control, and safety monitoring in one module.
- SureLight Ignition System Compatibility: Designed specifically for Lennox SureLight furnace platforms.
- 24V Control Voltage: Works with standard low-voltage HVAC control circuits.
- Silicon Nitride Igniter Support: Provides reliable and durable ignition performance.
- Integrated Ignition Logic: Manages startup sequencing and flame sensing functions.
- System Safety Protection: Includes fault detection and automatic shutdown features.
- OEM White-Rodgers Replacement: Meets or exceeds original Lennox equipment specifications.
- Service-Friendly Design: Allows straightforward installation during furnace repair or maintenance.
- Residential HVAC Application: Intended for gas-fired home heating systems.
The 56L8301 delivers the reliability and precision required for integrated ignition control in Lennox gas furnace systems.
