56T17F5323J | Marathon General Purpose Motor
- Regular price
- $552.00
- Sale price
- $552.00
- Regular price
-
Do you need more quantity?
Product Description P/N: 56T17F5323J
Description

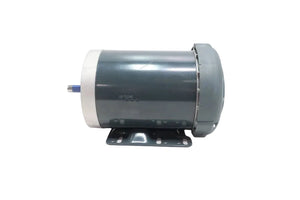

The Marathon 056T17F5323J is a general-purpose motor designed for industrial applications. It features a Marathon G583 model with a power rating of 1-3/4 horsepower (HP) and operates at a speed of 1725 revolutions per minute (rpm). The motor is compatible with 230/460 volts alternating current (VAC) power sources. With a 56HC frame size, it adheres to industry-standard dimensions for seamless integration into existing equipment setups. This motor is suitable for a wide range of industrial applications requiring reliable and efficient performance
Technical Specifications
Part # |
56T17F5323J |
Category |
Motors/GearBox/Clutch |
Subcategory |
Motor |
Phase |
3 |
Output HP |
1 & 0.75 Hp |
Output KW |
0.75 & 0.56 kW |
Voltage |
230/460 & 190/380 V |
Speed |
1725 & 1425 rpm |
Service Factor |
1.15 |
Frame |
56HC |
Enclosure |
Totally Enclosed Fan Cooled |
Thermal Protection |
No Protection |
Efficiency |
77 & 77 % |
Ambient Temperature |
40 °C |
Frequency |
60 & 50 Hz |
Current |
3.6/1.8 & 3.4/1.7 A |
Power Factor |
68.4 |
Duty |
Continuous |
Insulation Class |
F |
Design Code |
B |
KVA Code |
L |
Drive End Bearing Size |
6203 |
Opp Drive End Bearing Size |
6203 |
UL |
Recognized |
CSA |
Y |
CE |
Y |
IP Code |
43 |
Information About 56T17F5323J
The Marathon 056T17F5323J is a general-purpose motor, specifically the Marathon G583 model. It features a power rating of 1-3/4 horsepower (HP) and operates at a speed of 1725 revolutions per minute (rpm). The motor is designed to operate at 230/460 volts AC and belongs to the 56HC frame category.
This motor is identified by the part number D572306. It is engineered to provide reliable performance in various industrial applications. With its 56HC frame size, it fits into standard mounting configurations, offering versatility in installation.
With a power rating of 1-3/4 HP, the Marathon 056T17F5323J motor delivers sufficient torque and power output for a wide range of tasks. Its speed of 1725 rpm ensures efficient operation across different operational conditions.
The motor operates on a voltage range of 230/460 volts AC, providing flexibility in electrical system compatibility. This feature enables seamless integration into diverse power supply setups commonly found in industrial environments.
Manufacturer information
Marathon Electric is a leading manufacturer of electric motors, offering a wide range of industrial and commercial solutions. Known for quality and innovation, Marathon motors power various applications globally, providing reliable and energy-efficient solutions.
