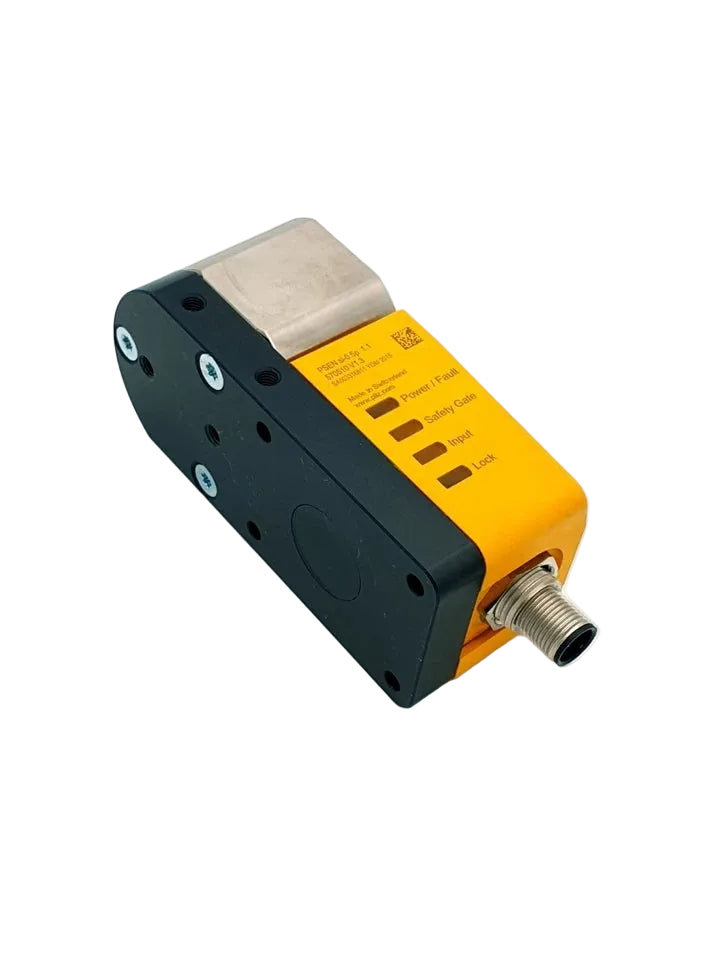

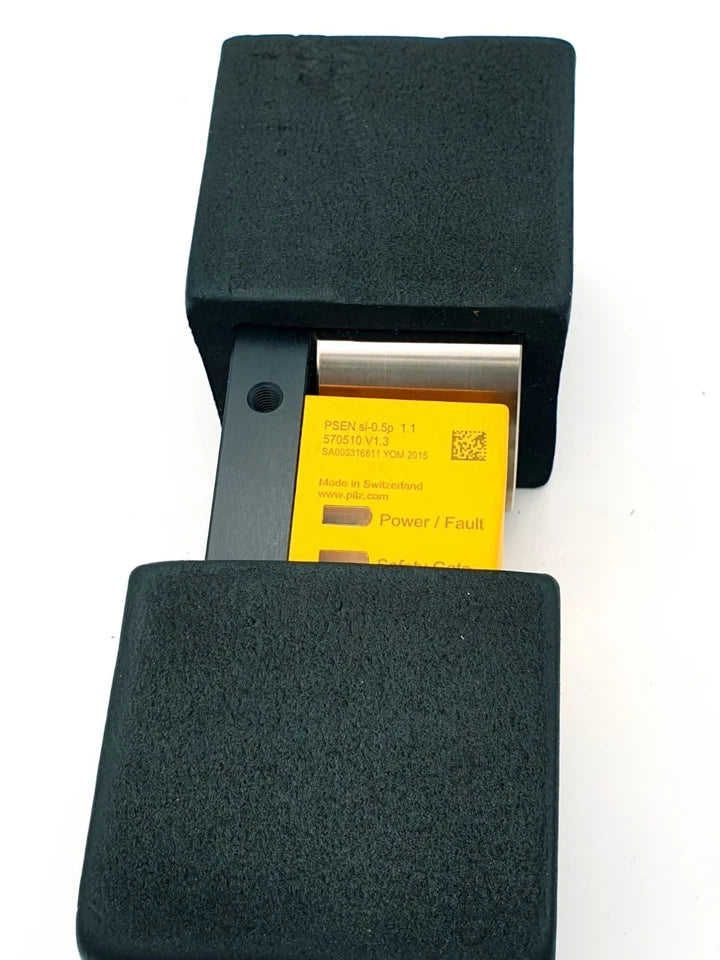

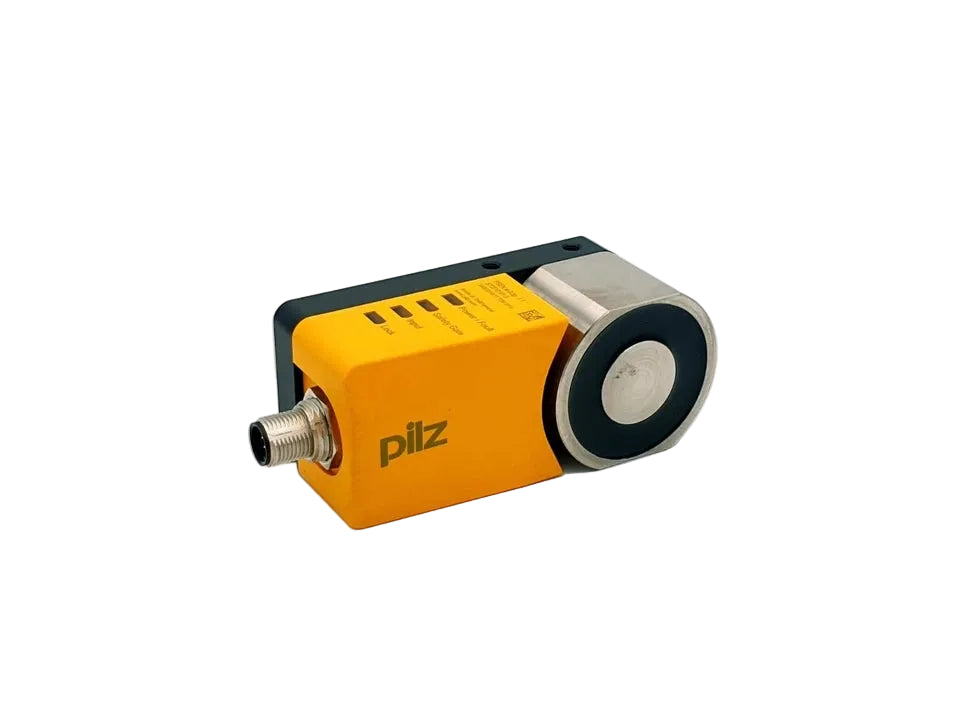

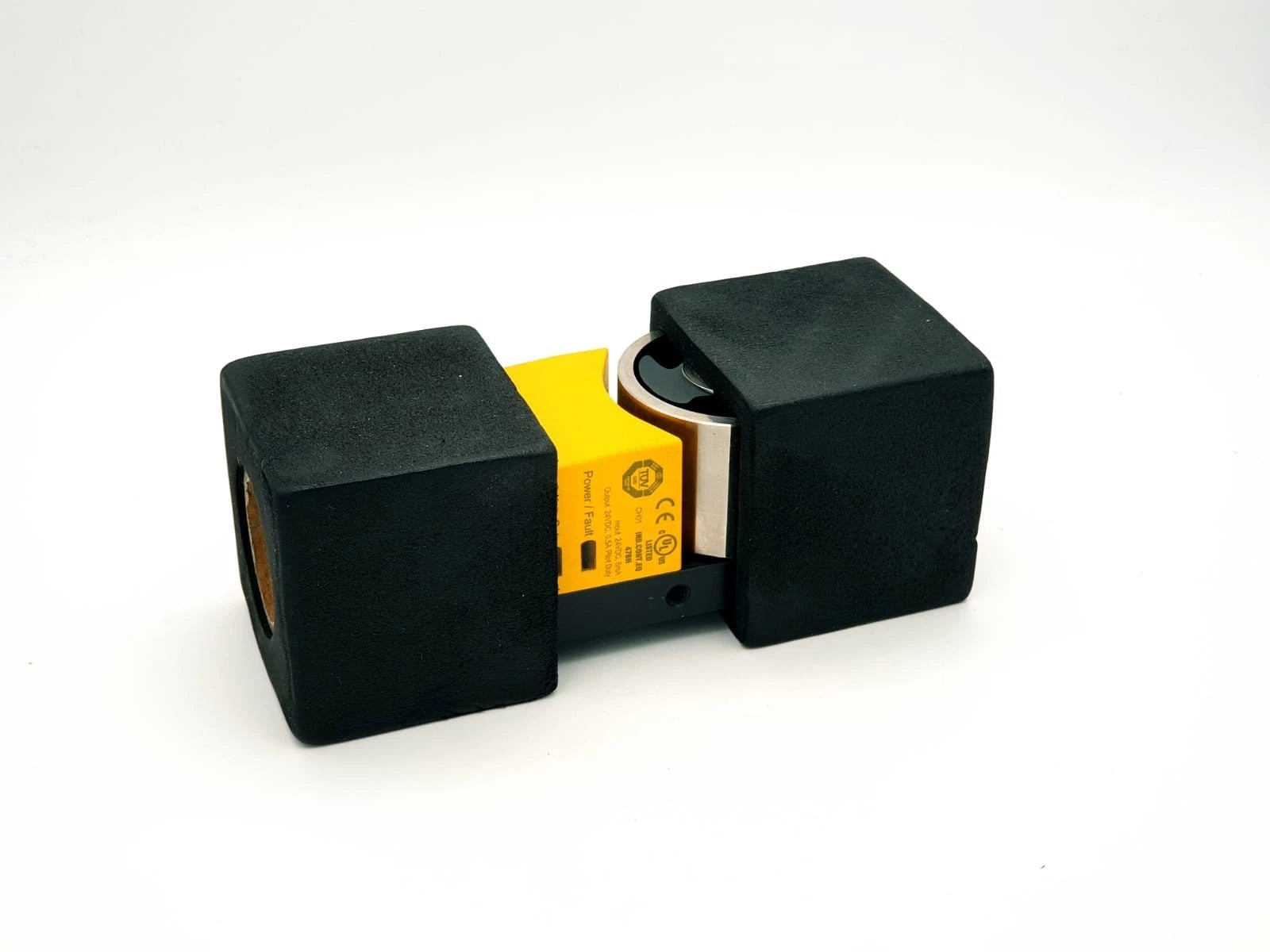

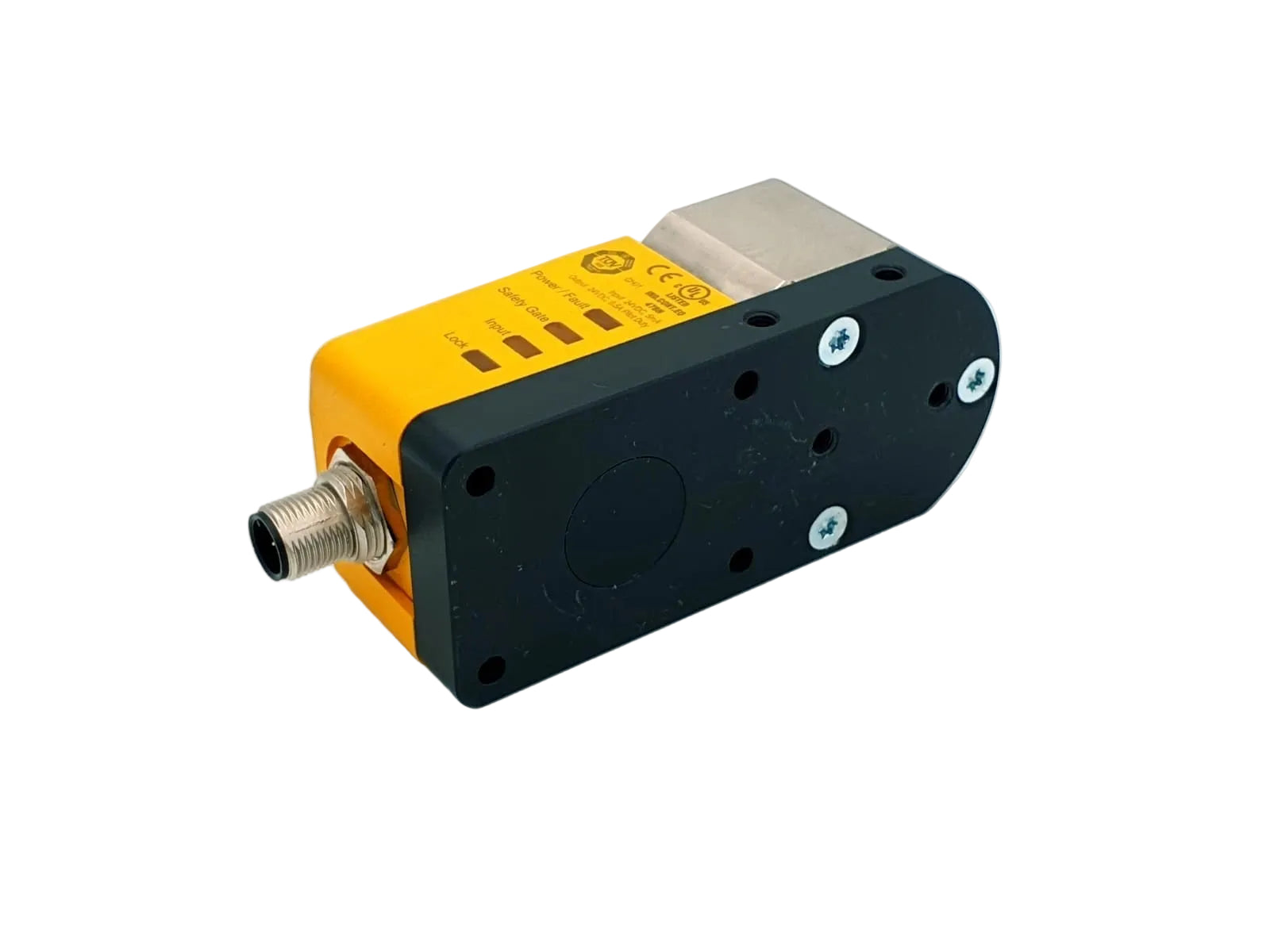

570510 | Pilz PSEN Sl 0.5P Safety Switch With Guard Locking 500N
- Regular price
- $482.00
- Sale price
- $482.00
- Regular price
-
Couldn't load pickup availability
Product Description P/N: 570510
Description
The Pilz 570510 PSEN sl-0.5p 1.1 is a magnetic safety gate switch designed for guard locking and safe position monitoring in industrial machinery. Operating on 24 VDC, it provides high holding force and safety-rated semiconductor outputs for reliable protection of personnel and processes.
Technical Specifications
| Condition | New/Never Used Surplus |
| Brand | Pilz |
| Category | Safety Switches |
| Part Number | 570510 |
| Subcategory | Guard Locking Safety Switches |
| Series | PSENSLOCK |
| Model | PSEN sl-0.5p 1.1 |
| Guard Locking | Yes |
| Holding Force | 500 N |
| Coding Type | Coded |
| Safety Outputs | 2 × semiconductor |
| Auxiliary Outputs | 1 × semiconductor |
| Supply Voltage | 24 VDC |
| Switch-On Distance | 1 mm |
| Switch-Off Distance | 8 mm |
| Connection Type | 8-pin M12 connector |
| LED Indicators | 4 |
| Degree of Protection | IP67 |
| Package Contents | Sensor only (actuator not included) |
| Weight | 1.27 lb |
Information About 570510
The 570510 is part of the Pilz PSENSLOCK series, developed for safety gate monitoring and guard locking up to the highest safety levels. The device combines position monitoring and guard locking in a single compact unit, supporting applications up to SIL 3, PL e, and Category 4. With a magnetic holding force of 500 N, it provides reliable process protection while ensuring safe access control. The sensor-only delivery allows flexible pairing with compatible Pilz actuators to suit different machine designs.
Key Features
- Integrated Guard Locking Function: Combines safe position monitoring and guard locking in one device to reduce system complexity.
- High Safety Performance: Designed for applications up to SIL 3, PL e, and Category 4 when used within a compliant safety system.
- 500 N Magnetic Holding Force: Provides strong process protection to prevent unintended opening of safety guards during operation.
- Coded Magnetic System: Reduces the risk of manipulation and improves overall machine safety integrity.
- Semiconductor Safety Outputs: Two safety-rated outputs and one auxiliary output enable reliable integration with safety controllers.
- Rugged IP67 Housing: Supports use in harsh industrial environments with resistance to dust and moisture.
- M12 Plug-In Connection: 8-pin M12 connector simplifies installation, wiring, and replacement.
The 570510 delivers the reliability and precision required for secure guard locking and safety monitoring in industrial machine protection applications.
