592-EEGD | Allen-Bradley E1 Plus Electronic Overload Relay with Thermal Memory
- Regular price
- $1,125.00
- Sale price
- $1,125.00
- Regular price
-
Couldn't load pickup availability
Product Description P/N: 592-EEGD
Description

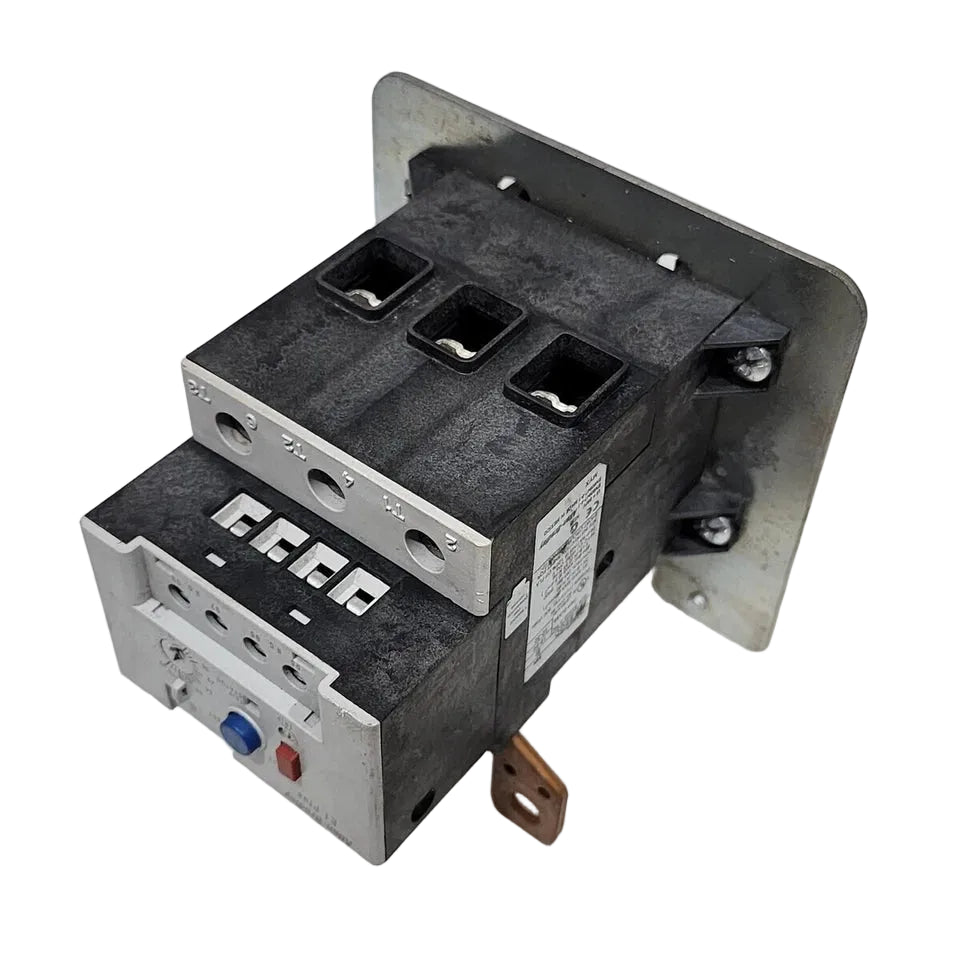

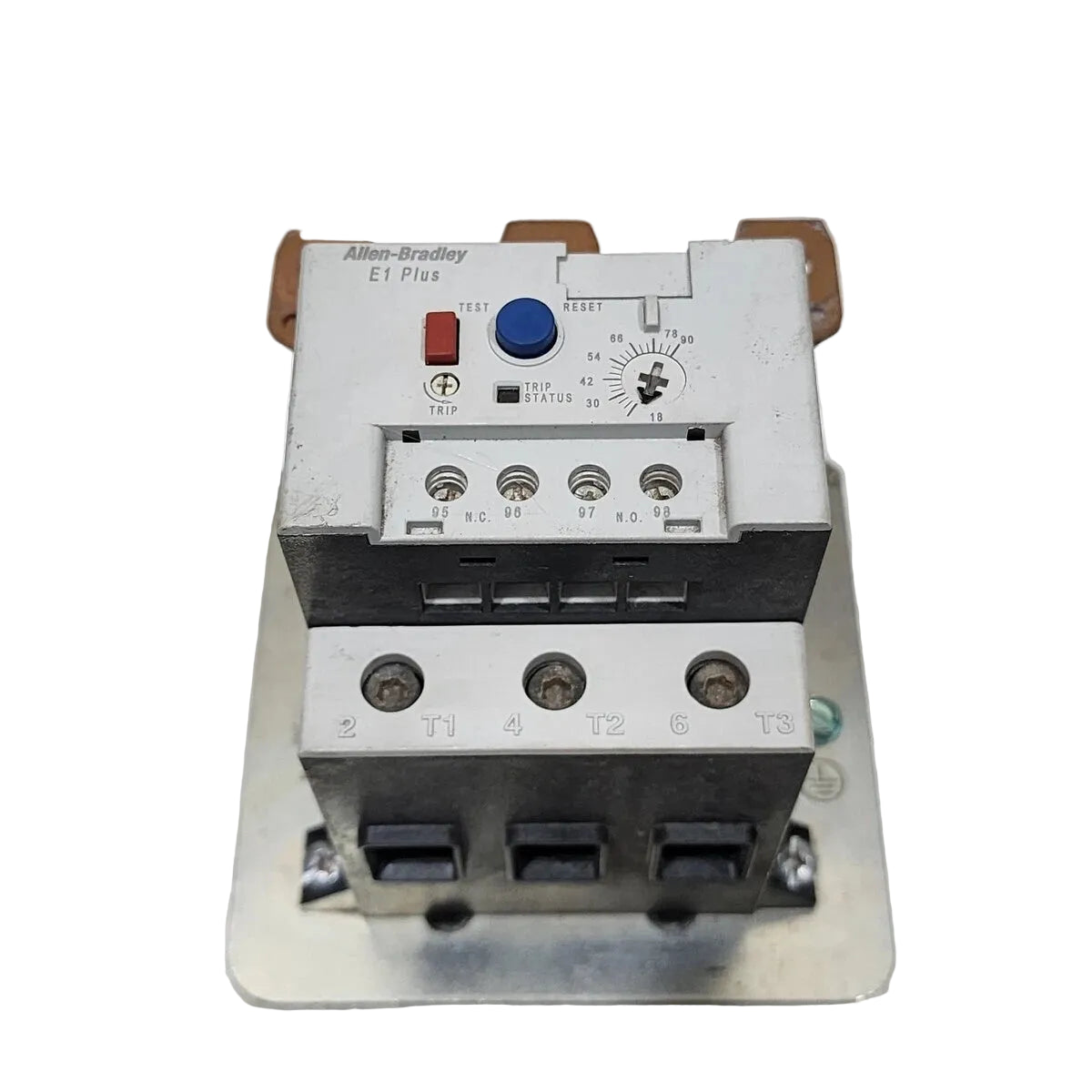

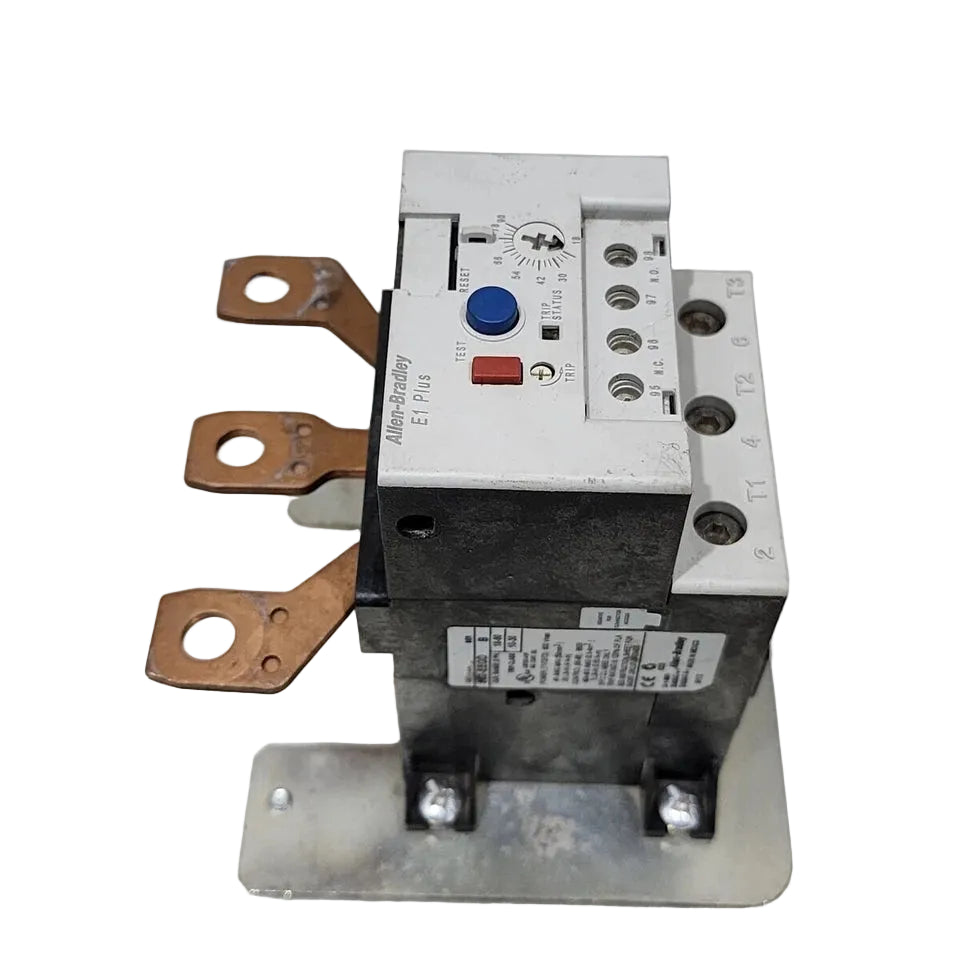

The Allen-Bradley 592-EEGD is an E1 Plus electronic overload relay designed to provide current measurement-based motor protection. It directly measures motor current to model thermal capacity utilization and deliver accurate overload protection independent of ambient temperature variations. The 592-EEGD supports flexible configuration, side-mount expansion modules, and reliable trip performance for industrial motor control applications.
Technical Specifications
| Condition | New/Never Used Surplus |
| Brand | Allen-Bradley (Rockwell Automation) |
| Category | Motor Protection |
| Part Number | 592-EEGD |
| Subcategory | Electronic Overload Relays |
| Product Series | E1 Plus |
| Protection Method | Current measurement-based electronic overload |
| Thermal Modeling | Solid-state ASIC-based thermal model |
| Thermal Memory | Yes |
| Phase Loss Protection | Integrated detection circuit |
| Adjustment Range | 5:1 FLA setting range |
| Trip Class Selection | Class 10, 15, 20, 30 (via DIP switch) |
| Reset Mode | Manual or automatic selectable |
| Auxiliary Contacts | Isolated N.O. and N.C. (B600 rated) |
| Expansion Capability | Side-mount modules (DeviceNet, EtherNet/IP, PROFIBUS, jam, ground fault, PTC) |
| Mounting | Starter-mounted / DIN rail (application dependent) |
| Weight | 1.90 lbs |
Information About 592-EEGD
The 592-EEGD is part of the Allen-Bradley E1 Plus series of electronic overload relays engineered for motor starter assemblies. It uses solid-state thermal modeling driven by an application-specific integrated circuit (ASIC) to continuously process motor current and calculate time-current characteristics. The relay includes thermal memory to simulate heating and cooling cycles, ensuring proper protection for both cold and recently operated motors. Designed for integration with contactors and optional side-mounted communication or protection modules, it supports expanded functionality including network connectivity, jam protection, and ground fault monitoring.
Key Features:
- Current Measurement-Based Protection: Directly measures motor current to model thermal load and improve overload accuracy.
- Electronic Thermal Modeling (ASIC): Processes real-time motor data to maintain accurate thermal capacity tracking.
- Thermal Memory Circuit: Simulates motor heating and cooling to prevent premature restart or under-protection.
- Enhanced Phase Loss Detection: Dedicated circuit enables rapid response to phase loss conditions.
- Wide 5:1 Adjustment Range: Covers broad FLA ranges, reducing required catalog numbers and simplifying inventory.
- Selectable Trip Class and Reset Mode: DIP switch configuration supports trip class 10, 15, 20, or 30 and manual or automatic reset.
- Isolated Auxiliary Contacts: N.O. and N.C. contacts support use in different voltage levels up to B600 rating (600 V circuits).
- Expandable Side-Mount Modules: Compatible with communication, jam protection, ground fault, PTC, and network modules.
The 592-EEGD delivers the reliability and precision required for electronic motor overload protection in industrial control systems.
