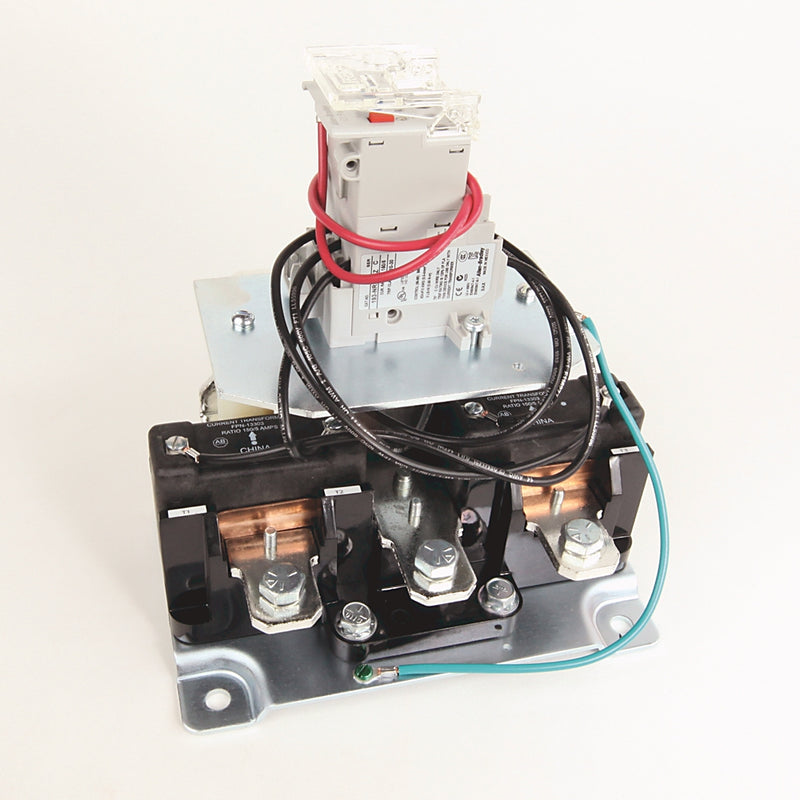

592-EEHE | Allen-Bradley Overload Relay

Description

The Allen-Bradley 592-EEHE is a solid-state, electronic overload relay from the E1 Plus series, designed for NEMA Size 4 three-phase motor protection. It offers a selectable trip class (10, 15, 20, or 30) and an adjustable current range of 30 to 150 Amps.

Technical Specifications

Information About 592-EEHE

The Allen-Bradley 592-EEHE is a solid-state electronic overload relay designed as part of the Allen-Bradley Bulletin 592 E1 Plus Series. It delivers precise motor protection for three-phase industrial motors, offering flexibility and enhanced safety for demanding industrial applications.

Key Features:

• Type: Solid-State Electronic Overload Relay
• Current Range: Adjustable from 30 to 150 A
• Trip Class: Selectable 10, 15, 20, or 30 for tailored motor protection response
• Supported Applications: Suitable for NEMA Size 4 motor starters, offering accurate and reliable overload protection in motor control systems
• Functionality: Provides current-based overload protection with thermal memory to simulate motor heating and cooling cycles, improving response and minimizing nuisance trips
• Reset Modes: Supports both automatic and manual reset options
• Form Factor: Compact design for seamless integration into motor control panels and compatibility with NEMA contactors
• Standards Compliance: Certified to UL, CSA, CE, and RCM standards, ensuring performance and safety in industrial environments
• Additional Features: Solid-state design for enhanced accuracy and reliability compared to traditional thermal overload relays

The 592-EEHE is ideal for organizations seeking dependable, customizable motor overload protection that enhances system safety and optimizes motor performance.
