Product Description P/N: 5PX1000RT
Description
Eaton 5PX1000RT is a 1000VA/1000W line-interactive UPS designed for rack or tower use (2U). It delivers pure sine wave output, features energy metering, managed outlets, and up to 99% efficiency in ECO mode.
Technical Specifications
| Condition | New/Never Used Surplus |
|---|---|
| Brand | Eaton |
| Category |
Power Supplies
|
| Part Number | 5PX1000RT |
| Subcategory | Power Supply |
| Form Factor | Rack/Tower |
| Color | Black/Silver |
| Topology | Line-interactive |
| VA Rating | 1000 VA |
| Wattage | 1000 W |
| Input Connection | 5-15P |
| Input Cord Length | 8 ft |
| Input Nominal Voltage | 120V (default; supports 100/110/120/127V) |
| Input Frequency Range |
47–70 Hz (50 Hz systems) 56.5–70 Hz (60 Hz systems) 40 Hz (low-sensitivity mode) |
| Input Power Factor | 1 |
| Output Nominal Voltage | 120V (default; selectable 100/120/125V) |
| Output Waveform | Sine wave |
| Receptacles | (8) 5-15R |
| Feed Type | 1 |
| Battery Rating | 12V / 7.2 Ah |
| Backup Time – Full Load | 7 minutes |
| Series | 5PX Series |
| User Interface | LCD graphical display |
| Expansion Slots | One slot |
| Operating Altitude | Up to 10,000 ft (3000 m) without de-rating |
| Operating Temperature Range | 0° to 40°C (32° to 104°F) |
| Relative Humidity | 20–95% (non-condensing) |
| Noise Level | <45 dB at 1 meter |
| Output Frequency | 50/60 Hz |
| Length/Depth | 20.6 in (52.7 cm) |
| Width | 17.4 in |
| Height | 3.4 in |
| Weight | 62 lbs |
Information About 5PX1000RT
The 5PX1000RT is part of Eaton’s 5PX series of line-interactive UPS systems, designed for rack/tower deployment in IT, networking, and edge computing environments. Operating at 120V with a power rating of 1000 VA / 1000 W, it delivers sine wave output, advanced battery management, and real-time energy metering. Its LCD interface and optional network card enable full integration into virtualized and distributed infrastructures. Built for reliable backup and energy-efficient operation, it supports scalable runtime through external battery modules.
Key Features:
- Pure Sine Output: Delivers clean, regulated power ideal for sensitive IT equipment.

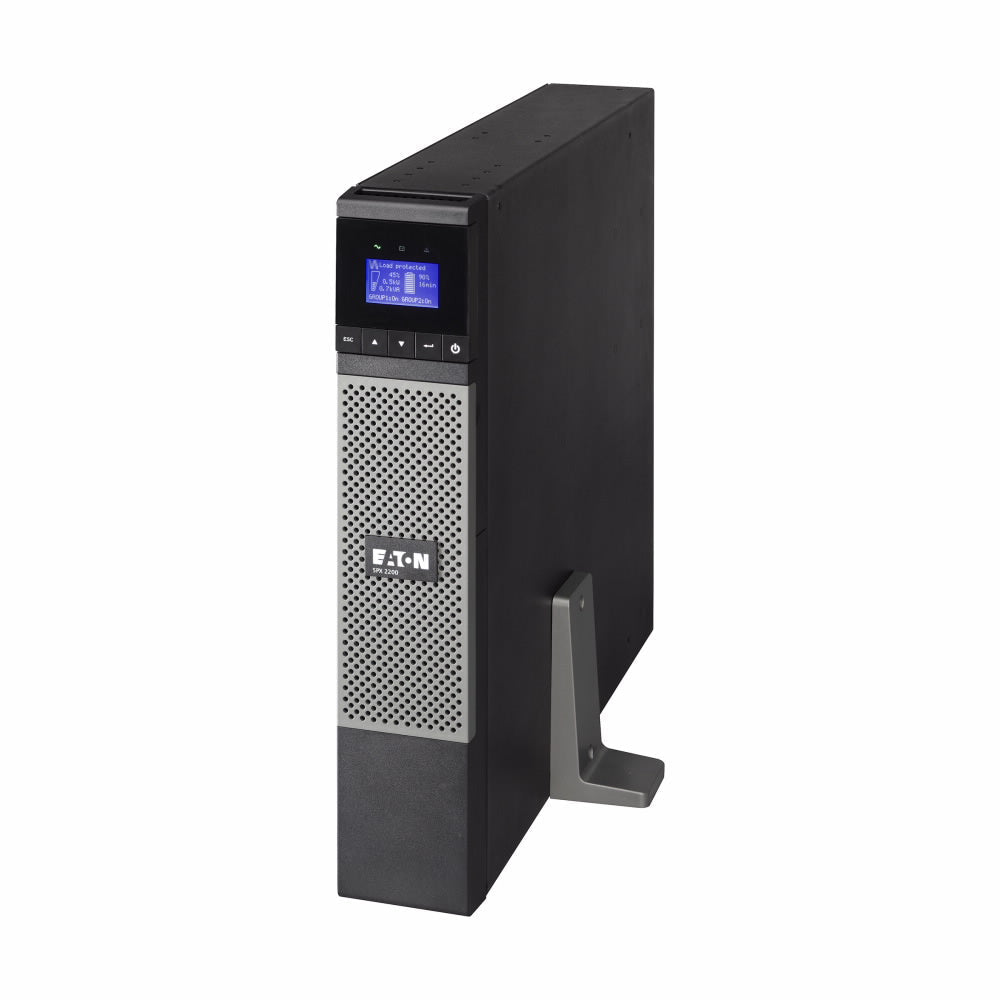

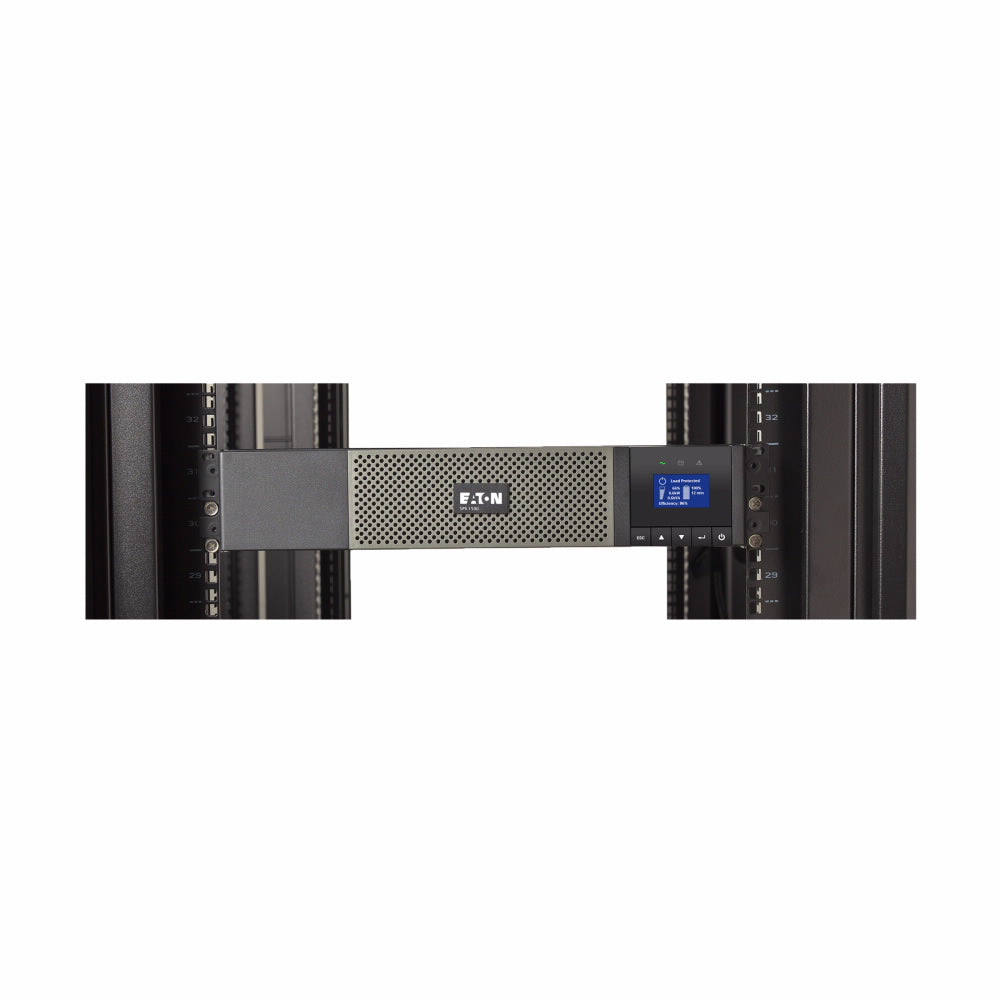

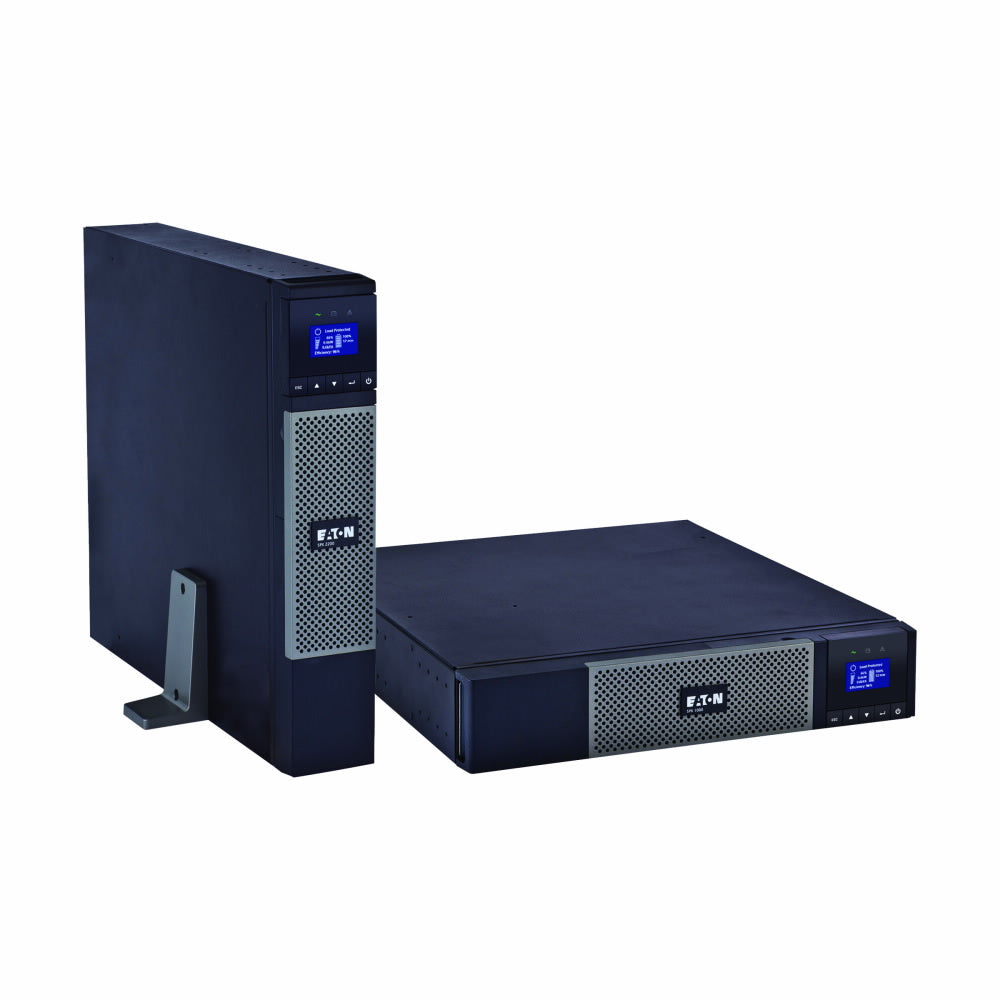

- Rack/Tower Flexibility: 2U convertible design fits standard 4-post racks or tower setups.

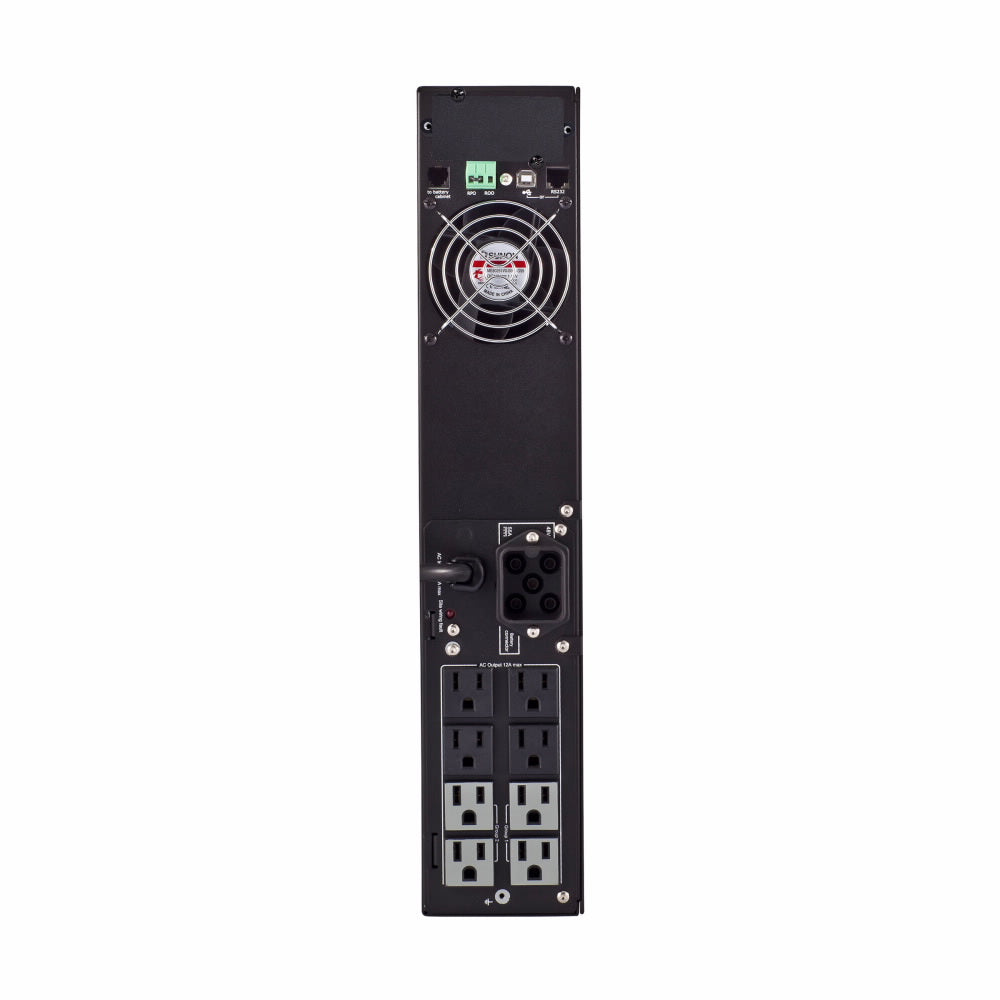

- Load Segment Control: Eight 5-15R outlets split into programmable groups for prioritized load shedding.
- Battery Expandability: Supports up to 4 EBMs (5PXEBM48RT) for extended runtime.
- Advanced Charging: ABM® system with temperature-compensated charging and deep discharge protection.
- Graphical LCD: Real-time monitoring of input/output voltage, load %, battery status, and configuration.
- Software Integration: Bundled with Eaton Intelligent Power Manager for centralized, virtualized environment management.
- Expansion Slot: One communication bay for optional Network Card-MS (SNMP/Web).
- Quiet Operation: Under 45 dB noise level for noise-sensitive installations.
- Environmental Resilience: Operates from 0–40°C and up to 10,000 ft altitude with no performance loss.
- Certified Safe: UL 1778, cUL, CE, NOM, FCC Part 15 – Compliant with global safety and EMC standards.
The Eaton 5PX1000RT is engineered for mission-critical applications that demand high efficiency, precise power control, and seamless integration with modern IT infrastructures.
