5PXEBM48RT | Eaton 5PX Extended Battery Module
- Regular price
- $977.00
- Sale price
- $977.00
- Regular price
-
Couldn't load pickup availability
Do you need help?
Product Description P/N: 5PXEBM48RT
Description

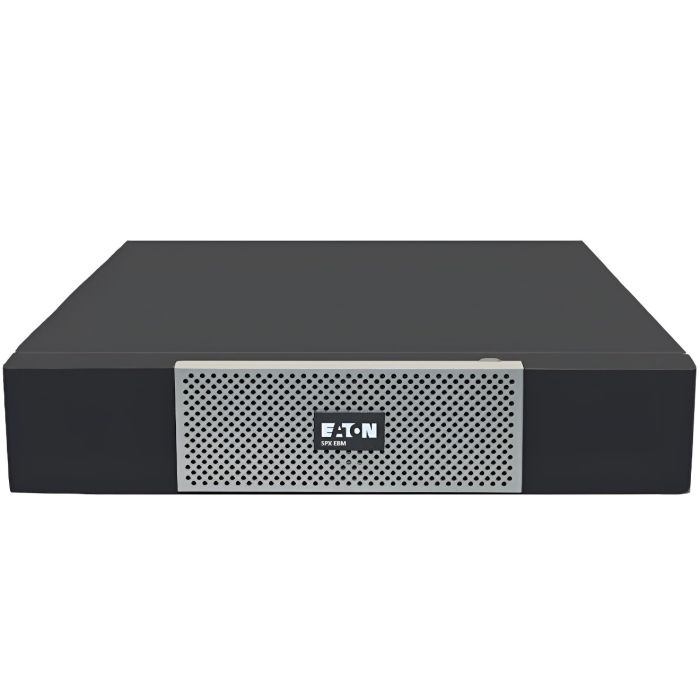

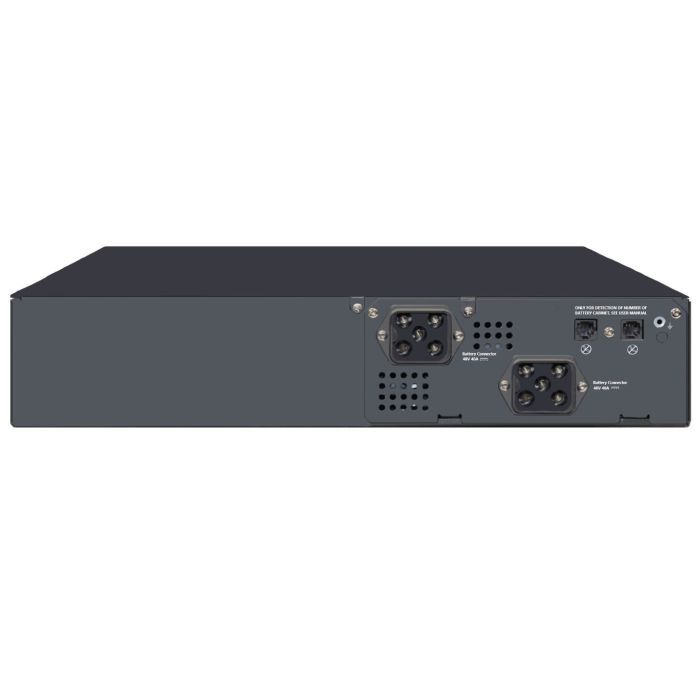

The Eaton 5PXEBM48RT is a 2U rack/tower 48 V extended battery module engineered to enhance runtime for Eaton 5PX UPS systems (models 1000, 1500, 2200 VA).
Technical Specifications
| Condition | New/Never Used Surplus |
|---|---|
| Brand | Eaton |
| Category |
Power Supplies
|
| Part Number | 5PXEBM48RT |
| Subcategory | Battery Back Up |
| Form Factor |
Rack/tower |
| Rack Size |
2U |
| Construction Type |
Free standing model |
| Color |
Black/silver |
| Rack Mounting Kit |
Yes
|
| Type of Accessory |
Battery/accumulator |
| Input Connection |
C14 |
| Output Waveform |
Sine wave |
| Battery Rating |
12 V / 9 Ah
|
| Battery Type | Sealed, lead-acid |
| Voltage Compatibility | 120 V |
| Maximum Power | 120 W |
| Height | 86.2 mm |
| Length | 441.2 mm |
| Width | 522 mm |
| Weight | 32.8 kgs |
Information About 5PXEBM48RT
The 5PXEBM48RT is part of Eaton’s extended battery module series designed to complement 5PX UPS systems, including 1000VA, 1500VA, and 2200VA models. Operating at 48 VDC, it houses sealed lead-acid batteries enhanced by ABM® technology to extend battery life and deliver consistent power during outages. With a compact 2U rack/tower form factor and support for up to four modules per UPS, the 5PXEBM48RT is ideal for IT and edge environments where extended runtime and space efficiency are critical.
Key Features:
- Runtime Expansion: Adds significant backup duration to compatible 5PX UPS units; supports daisy-chaining up to four EBMs.
- Battery Technology: Features eight 12 V, 9 Ah sealed lead-acid batteries managed by Eaton’s ABM® system with temperature-compensated charging for improved lifespan and performance.
- Compact 2U Format: Fits standard racks or tower setups with included mounting hardware—ideal for dense IT deployments.
- Auto-Recognition: Plug-and-play design with automatic UPS detection ensures seamless integration and runtime management.
- Consistent Power Delivery: 48 VDC output supports clean, regulated runtime power aligned with 5PX UPS specifications.
- Tool-less Maintenance: Front-access, hot-swappable batteries allow quick service and minimize downtime.
- Certified Safe: UL 1778 and cTUVus certified; meets IEC/EN 62040-1 and -2 standards for UPS subsystems.
- Environmental Durability: Engineered for operation from 0–40°C and in conditions up to 95% non-condensing humidity.
- 3-Year Warranty: Covers electronics and batteries with registration, offering peace of mind for long-term deployments.
The Eaton 5PXEBM48RT is a robust and scalable power extension module, ideal for IT professionals seeking enhanced UPS runtime without compromising rack space or serviceability.
