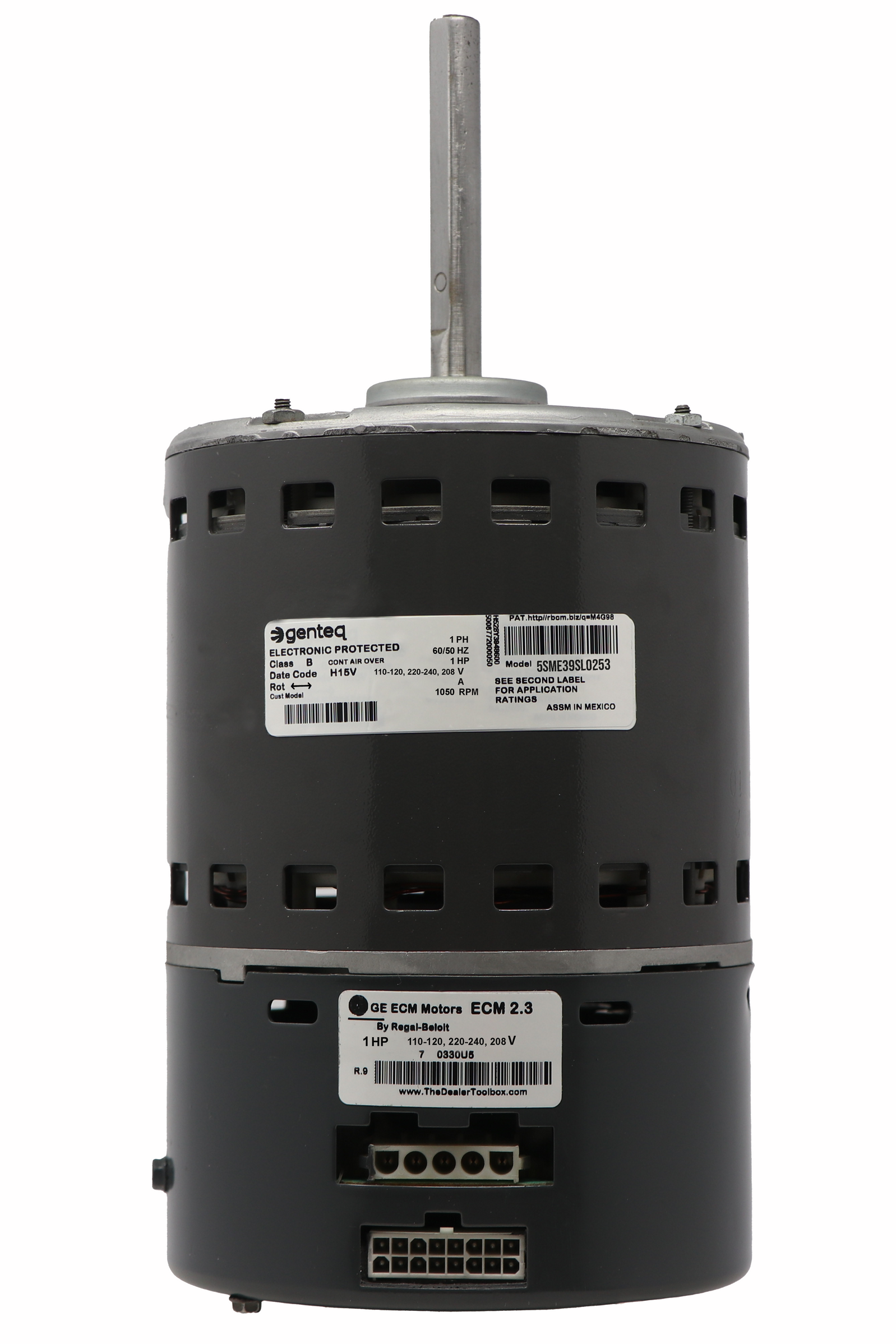

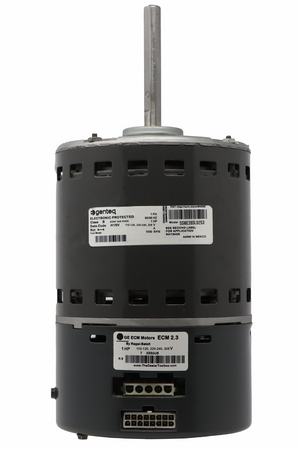

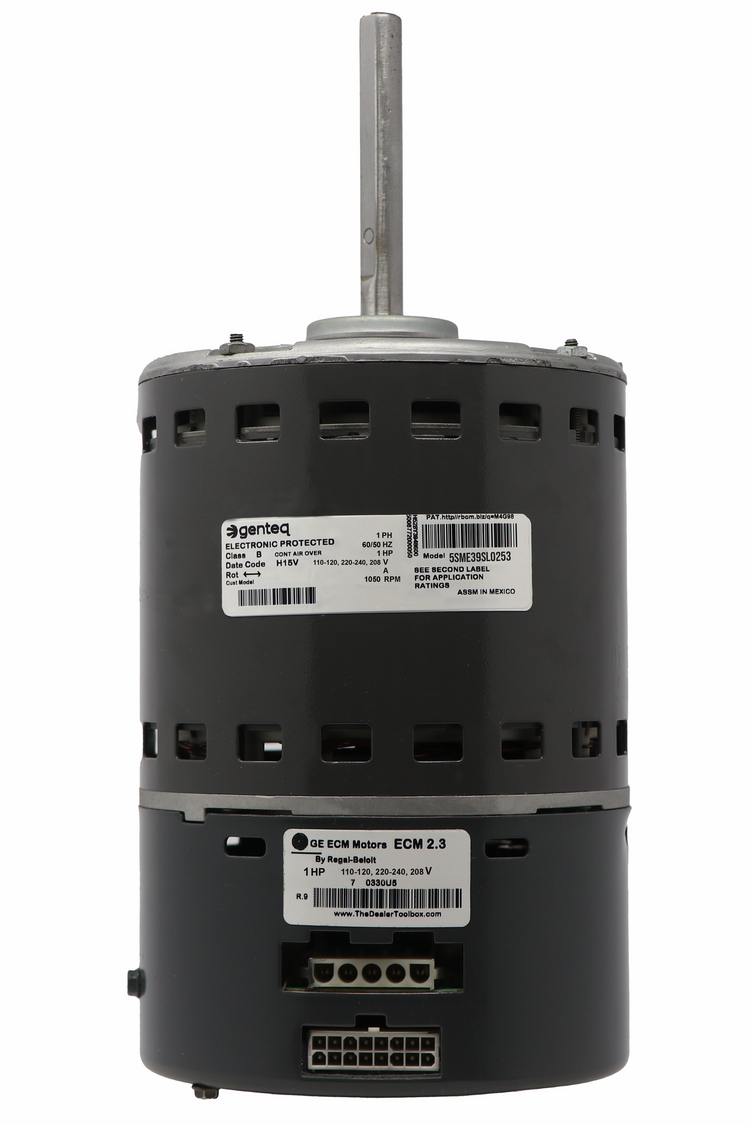

5SME39SL0253 | GE Genteq ECM 2.3 One Horsepower Multi-Voltage Blower Motor
- Regular price
- $792.00
- Sale price
- $792.00
- Regular price
-
Couldn't load pickup availability
Product Description P/N: 5SME39SL0253
Description
The GE Genteq 5SME39SL0253 Blower Motor is an ECM 2.3 variable-speed electric motor engineered for efficient airflow control in HVAC systems. Rated at 1 HP, part number 5SME39SL0253 supports multi-voltage operation to meet a wide range of residential and light commercial requirements. It is designed for direct-drive blower applications where precise speed control and energy efficiency are essential.
Technical Specifications
| Condition | New/Never Used Surplus |
| Brand | GE Genteq |
| Category | HVAC Motors |
| Part Number | 5SME39SL0253 |
| Subcategory | ECM Blower Motors |
| Motor Type | ECM 2.3 Blower Motor |
| Horsepower | 1 HP |
| Input Voltage | 115 / 208 / 230 VAC |
| Phase | Single Phase |
| Frequency | 50 / 60 Hz |
| Frame | 48Y |
| Motor Diameter | 5.6 in |
| Enclosure | OAO (Open Air-Over) |
| Shaft Diameter | 0.5 in |
| Shaft Length | 5 in |
| Shaft Type | Single |
| Duty Rating | Continuous |
| Mounting Type | Blower Assembly Mount |
| Cooling Method | Air Over |
| Operating Environment | Indoor HVAC Equipment |
| Weight | Approx. 16 lb |
Information About 5SME39SL0253
The 5SME39SL0253 is part of Genteq’s ECM 2.3 motor series, developed to enhance HVAC system efficiency and performance through electronically commutated motor technology. This motor integrates advanced electronics to automatically adjust speed based on system demand and control inputs. Built on a 48Y frame with an open air-over enclosure, it supports effective cooling during continuous operation. It is intended for use in compatible furnace and air handler blower assemblies requiring dependable variable-speed performance.
Key Features:
- ECM 2.3 Motor Technology: Provides electronically commutated, variable-speed airflow control.
- One Horsepower Output: Delivers high-capacity performance for demanding blower applications.
- Multi-Voltage Operation: Supports 115V, 208V, and 230V electrical systems.
- Variable-Speed Control: Automatically adjusts motor speed for optimal airflow and efficiency.
- Energy-Efficient Design: Reduces electrical consumption compared to traditional PSC motors.
- Forty-Eight Y Frame: Ensures compatibility with standard HVAC blower motor mounts.
- Open Air-Over Enclosure: Promotes effective cooling and thermal stability.
- Precision Shaft Dimensions: Features a half-inch diameter shaft with five-inch length for proper blower wheel fit.
- Single Shaft Configuration: Designed for direct-drive blower assemblies.
- Continuous Duty Rating: Built for extended operation in HVAC environments.
The 5SME39SL0253 delivers the reliability and precision required for variable-speed HVAC blower motor applications.
