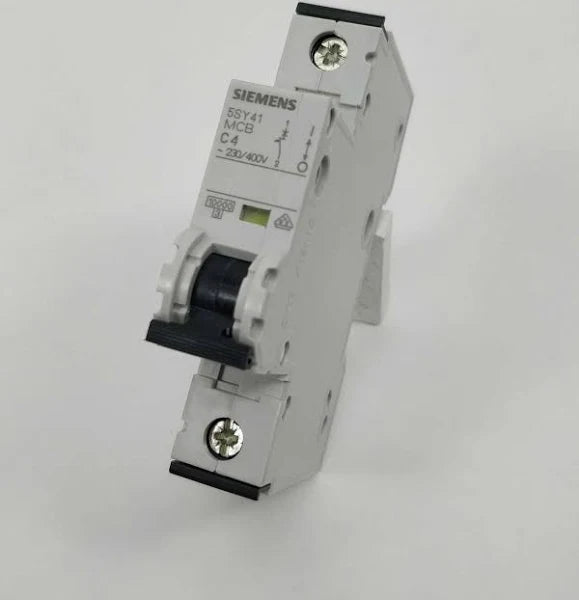

5SY4104-7 | Siemens | Circuit Breaker
- Regular price
- $79.00
- Sale price
- $79.00
- Regular price
-
Couldn't load pickup availability
Do you need help?
Product Description P/N: 5SY4104-7
Description
The Siemens 5SY4104-7 Circuit Breaker is a single-pole device designed for electrical protection in industrial settings. Operating at 230/400 volts with a breaking capacity of 10 kiloamperes (kA), it is rated at 4 amperes (A). The circuit breaker conforms to the "C" type classification. Its physical dimensions are specified with a depth of 70 millimeters (mm).
Technical Specifications
|
Part # |
5SY4104-7 |
|
Manufacturer |
SIEMENS |
|
Category |
Circuit Breaker |
|
Subcategory |
Din Rail Mount Circuit Breaker |
|
Number of poles / Note |
1P |
|
Tripping characteristic class |
C |
|
Circuit-breaker / Design |
5SY4 |
|
Mechanical service life (switching cycles) |
Typical: 20,000 |
|
Overvoltage category |
3 |
|
Type of voltage |
AC/DC |
|
Insulation voltage |
|
|
- with single-phase operation / with AC / Rated |
Value V: 250 |
|
- with multi-phase operation / with AC / Rated |
Value V: 440 |
|
Supply voltage / with AC / Rated value |
V: 400 |
|
Supply voltage frequency / Rated value |
Hz: 50 |
|
Protection class IP |
IP20, with connected conductors |
|
Energy limiting class |
3 |
|
- for DC / acc. to IEC 60947-2 / Rated value |
kA: 15 |
|
- acc. to EN 60898 / Rated value |
kA: 10 |
|
- acc. to IEC 60947-2 / Rated value |
kA: 35 |
|
- for rated value of the current / with AC / in |
hot operating state / per pole |
|
W |
1.3 |
|
Rated current In / IEC, DIN/VDE / at 40 Cel |
A: 3.76 |
|
Current / with AC / Rated value |
A: 4 |
|
Height mm |
90 |
|
Width mm |
18 |
|
Depth mm |
76 |
|
Mounting position |
Any |
|
Installation depth mm |
70 |
|
Number of width units |
1 |
|
Mounting type |
Quick assembly system |
|
Net weight g |
147 |
|
Influence of the surrounding temperature |
Max. 95% humidity |
|
Shock resistance / acc. to IEC 60068-2-27 |
150m/s² at 11ms half-sine |
|
Vibration resistance / acc. to IEC 60068-2-6 |
50m/s² at 25 to 150Hz and 60m/s² at 35Hz (4sec) |
|
Ambient temperature |
|
|
- minimum °C |
-25 |
|
- maximum °C |
55 |
|
- during storage / minimum °C |
-40 |
|
- during storage / maximum °C |
75 |
Information About 5SY4104-7
The Siemens 5SY4104-7 Circuit Breaker is a single-pole device designed for electrical protection in industrial applications. Operating at 230/400 volts with a breaking capacity of 10 kiloamperes (kA), it is rated at 4 amperes (A). The circuit breaker conforms to the "C" type classification and has a characteristic design denoted by "d=70mm".
This circuit breaker, under the designation 5SY4104-7, serves as a fundamental component within electrical systems, ensuring the safety and integrity of circuits. Its single-pole configuration denotes its capacity to manage a single electrical circuit, making it suitable for various industrial and commercial settings where selective protection is required.
The 5SY4104-7 model exhibits a compact design, with dimensions specified by a depth of 70 millimeters (mm). This compact form factor enables efficient utilization of space within electrical panels and control cabinets.
Its operational parameters, including the voltage rating of 230/400 volts, cater to diverse voltage requirements commonly encountered in industrial environments. The circuit breaker's breaking capacity of 10 kA signifies its capability to interrupt fault currents under specified conditions, safeguarding electrical equipment and preventing damage to the system.
The rating of 4 amperes (A) denotes the maximum current that the circuit breaker can safely carry continuously under normal operating conditions. This rating aligns with typical circuit requirements encountered in industrial and commercial installations.
Manufacturer information
Siemens: A renowned global manufacturer, leading in technology, engineering, and innovation across diverse sectors for a sustainable future.
